Competitive Price Steel Bar Straightening and Cutting Machine/CNC Rebar Cutting Machine
I. Technical Parameters:
Model No. |
YGTQ4-12(1) |
YGTQ 4-12(2) |
YGTQ5-14 |

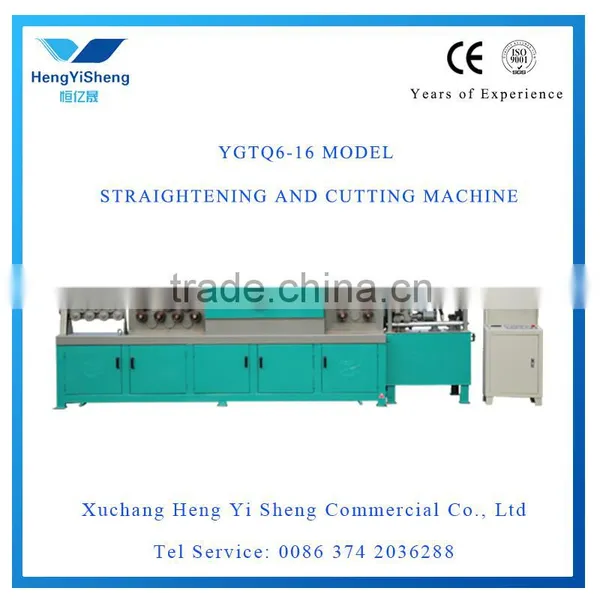

YGTQ6-16 |
Round steel bar |
φ 4-φ 12mm |
φ 4-φ 12mm |
φ 5-φ 14mm |
φ6-φ18mm |
Deformed steel bar |
φ 4-φ 10mm |
φ 4-φ 10mm |
φ 5-φ 12mm |
φ6-φ16mm |
Cutting length |
300mm-8400mm |
300mm-8400mm |
300mm-8400mm |
500mm-9500mm |
Cutting error |
±5mm |
±5mm |
±5mm |
±5mm |
Straighten speed |
40-45m/min |
40-45m/min |
50-55m/min |
60-80m/min |
Straighten and pulling motor |
7.5kw |
7.5kw |
11kw |
15kw |
Cutting motor |
5.5kw |
5.5kw |
5.5kw |
5.5kw |
L*W*H |
2.0*0.64*1.3m |
1.9*0.84*0.9m |
2.9*0.64*1.3m |
4000*650*1200mm |
Machine weight |
900kg |
650kg |
1200kg |
1500kg |

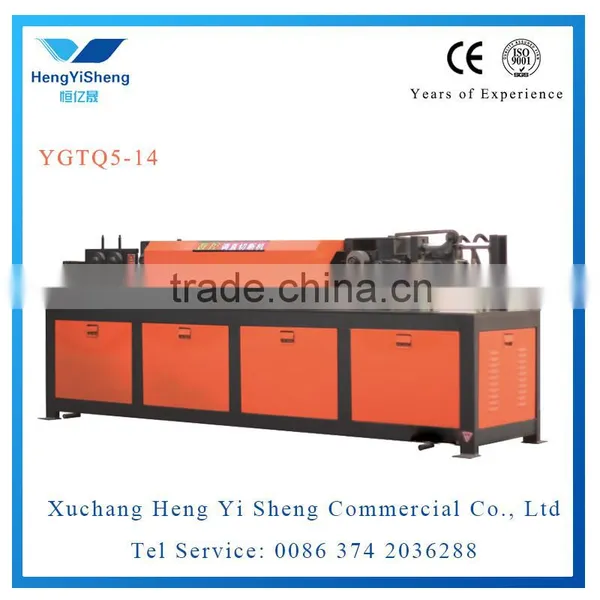

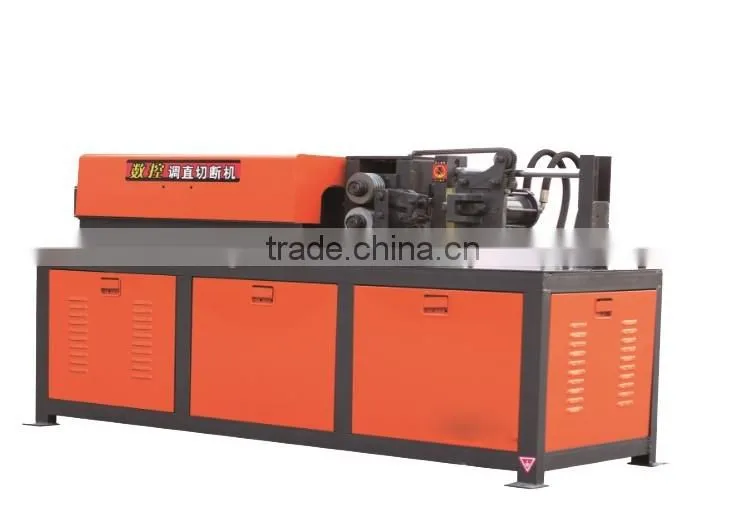

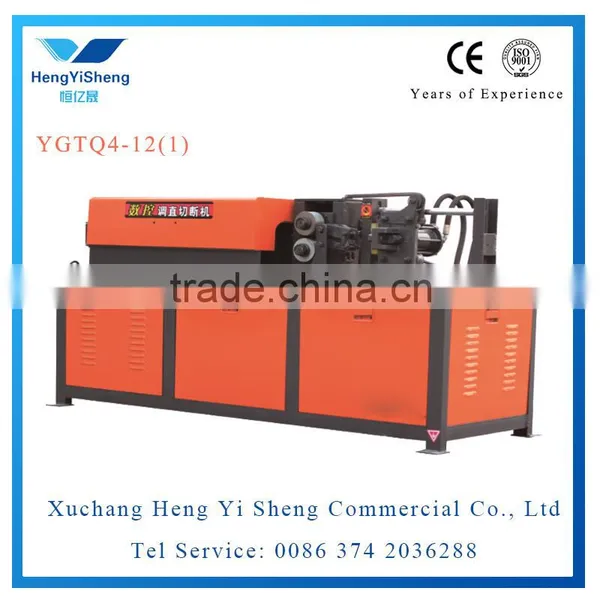

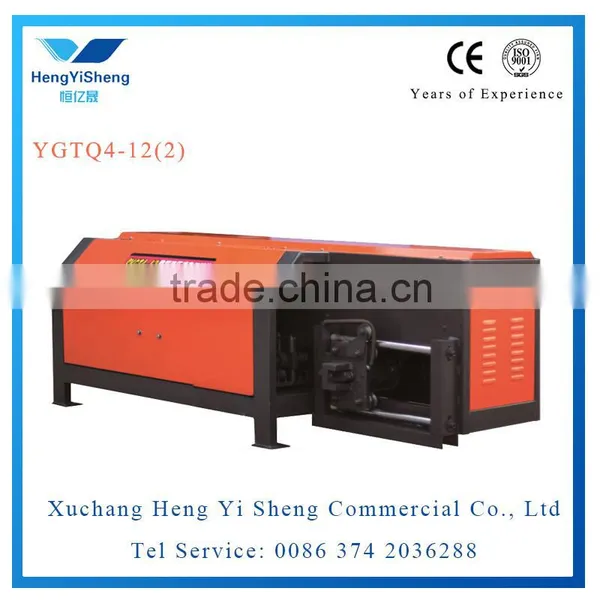

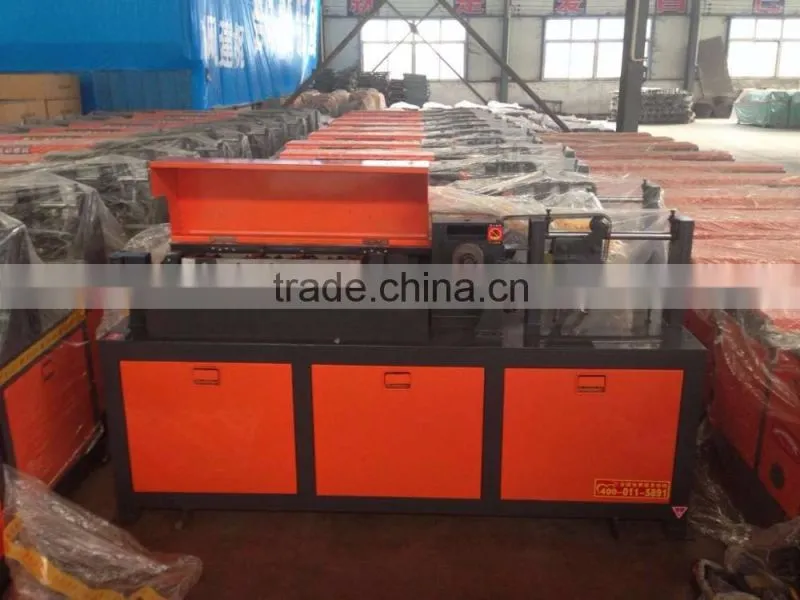

II. Detailed pictures of the steel bar straightening and cutting machine

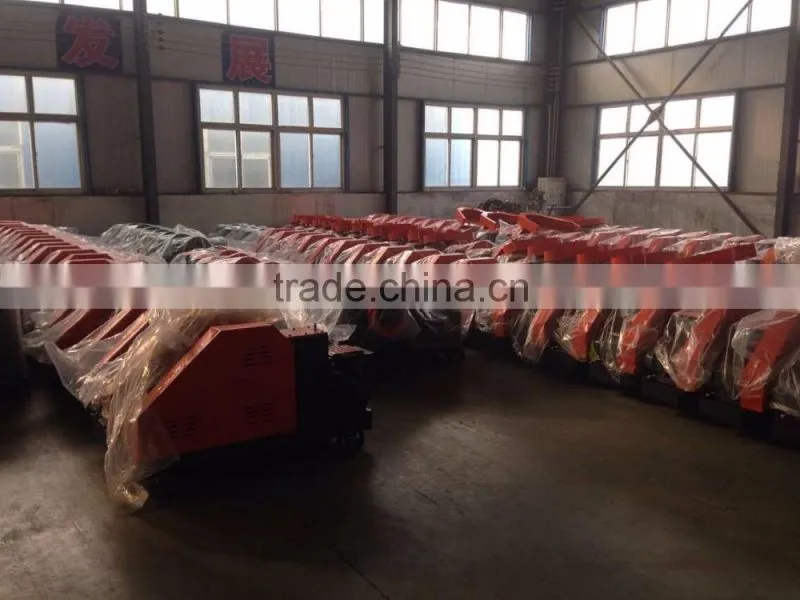

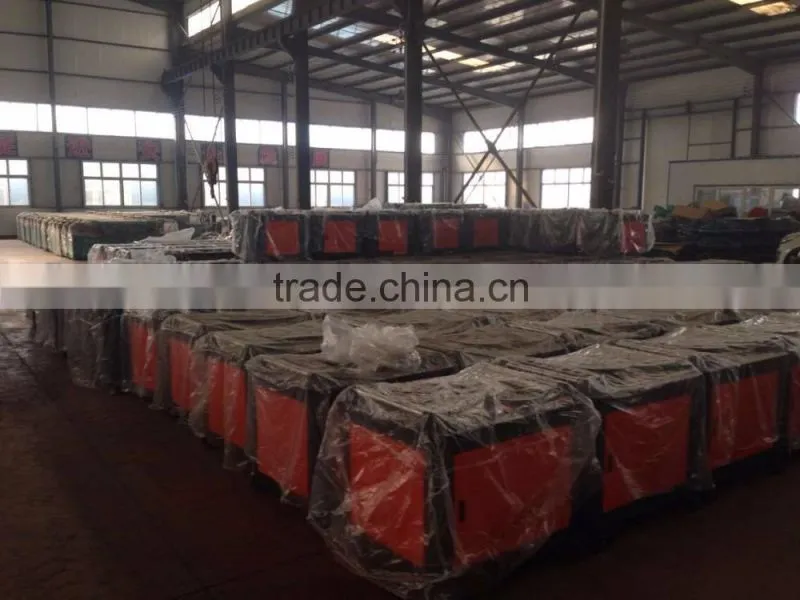

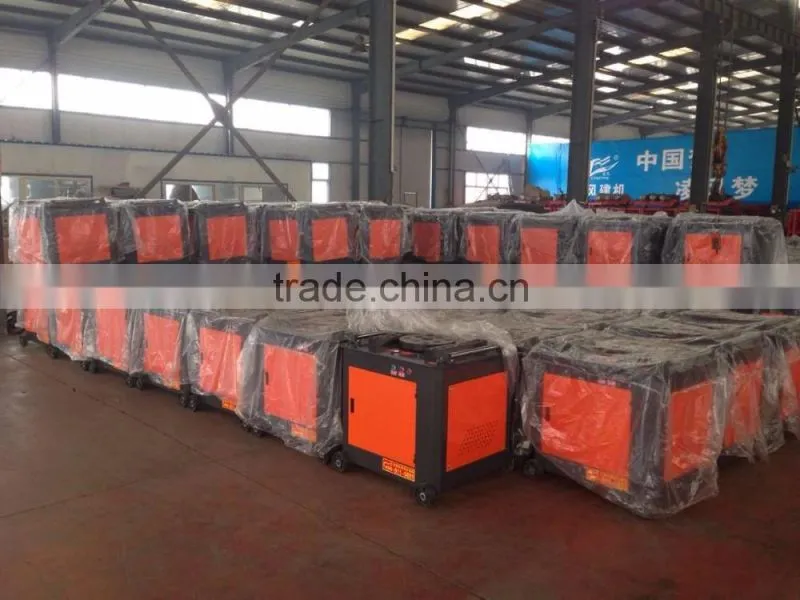

III. Workshop show

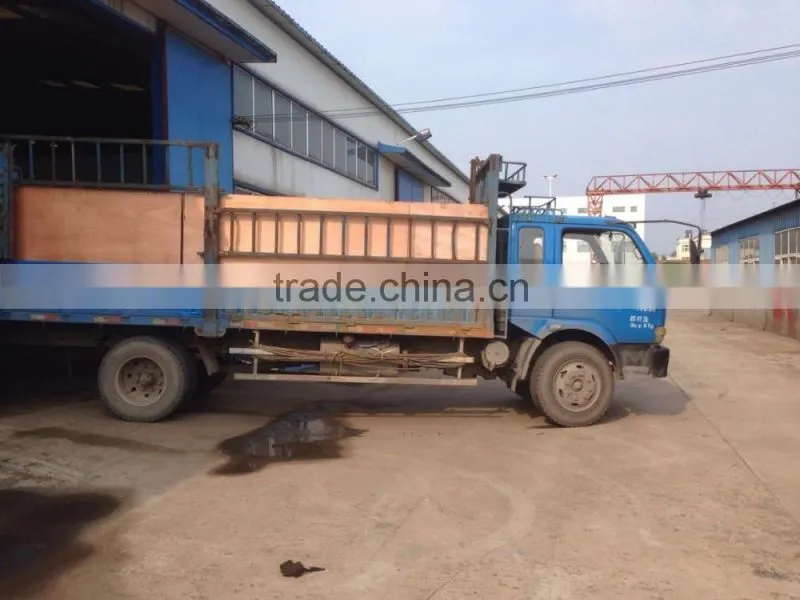

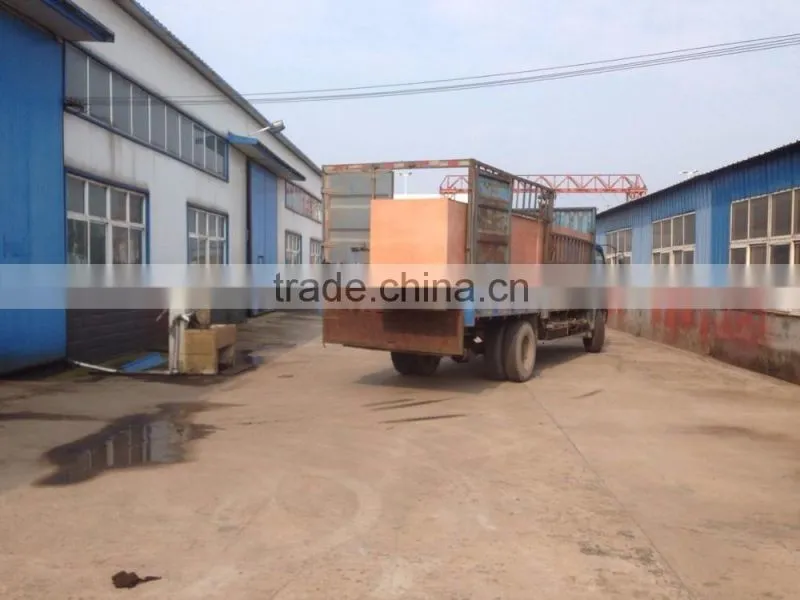

IV: Package and delivery
V: Features of the steel bar straightening and cutting machine
1) Speed can be adjusted
2) Adapt to different workers
3) High efficiency, quick modulation speed, smaller error and material loss to a minimum
This machine is efficient for cutting steel bars on project. It can cut different kinds of round steel bar and deformed steel bar. It’s made of high steel knife seat and connecting shaft, international standard high speed motor and firm reinforcing covering. The machine is very small, solid, self-lubrication, little power loss; easy operation and easy moving with four wheels and the knife can be manually controlled.
