Help CenterBatch Code Printing Machine
US$ 820 - 870
MOQ: 1 Set
Key Specifications
Get Latest Price
Condition:
New
Plate Type:
Letterpress
Place of Origin:
Zhejiang, China
Payment & Shipping
Payment Methods:
Port of Shipment:
ningbo
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
High Quality Label Hot Stamping MachineUS$ 820 - 870MOQ: 1 Set -
Pneumatic And Hydraulic Automatic Hot Foil Stamping Machine For SaleUS$ 820 - 870MOQ: 1 Set
-
High Duty Flatbed Heat Press MachineUS$ 550 - 560MOQ: 1 Set
-
Hot Stamping MachineryUS$ 550 - 560MOQ: 1 Set
-
High Quality Garment Heat Press Transfer SublimationUS$ 550 - 560MOQ: 1 Set
Condition
New
Plate Type
Letterpress
Place of Origin
Zhejiang, China
Brand Name
ZONYAN

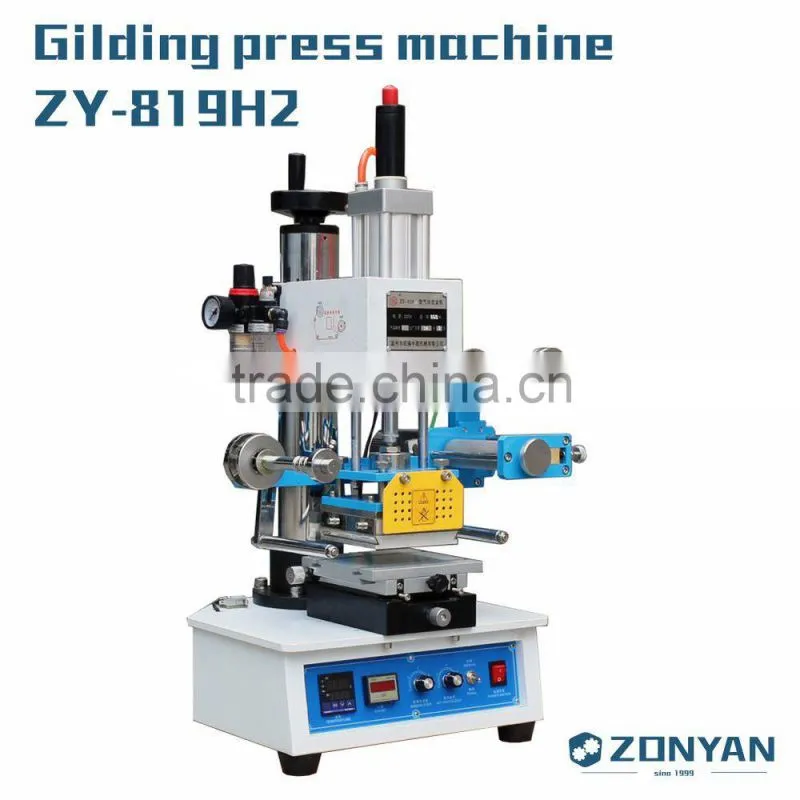

Model Number
ZY-819H2
Usage
Card Printer, Cloths Printer, Paper Printer, Other, Card Printer, Cloths Printer, Paper Printer, paper,leather,plastic,wood
Automatic Grade
Semi-Automatic
Voltage
220V/110V
Gross Power
600W
Dimensions(L*W*H)
410
Weight
60
Certification
.
After-sales Service Provided
No overseas service provided
Product use
This machine is used for gold blocking and embossing
workmanship of leather, plastic, rubber, wood, paper, and
other products. It improves the grade of the product and enhances market competitiveness.
Product features

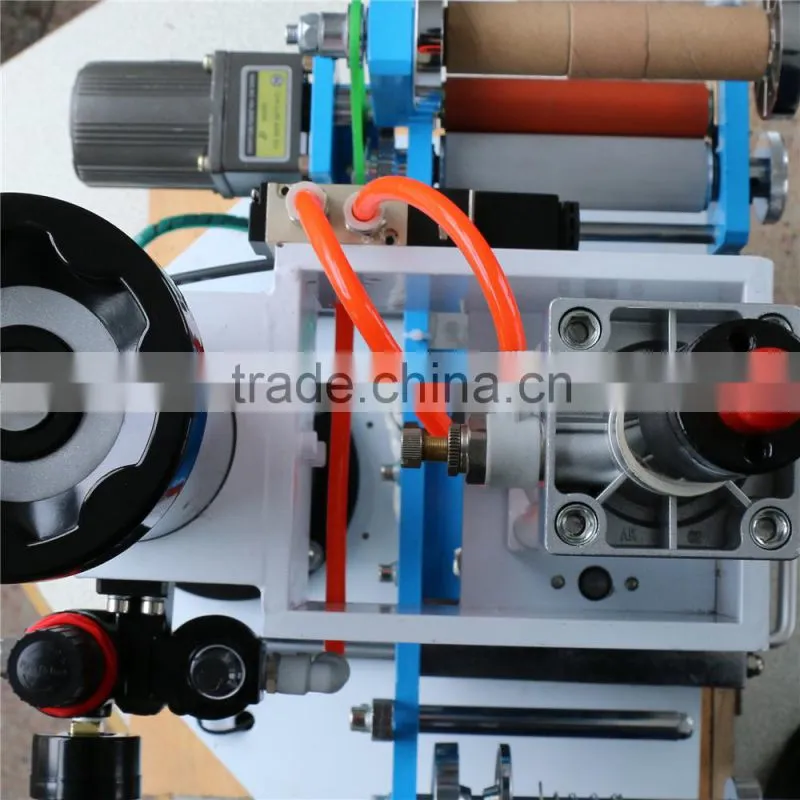

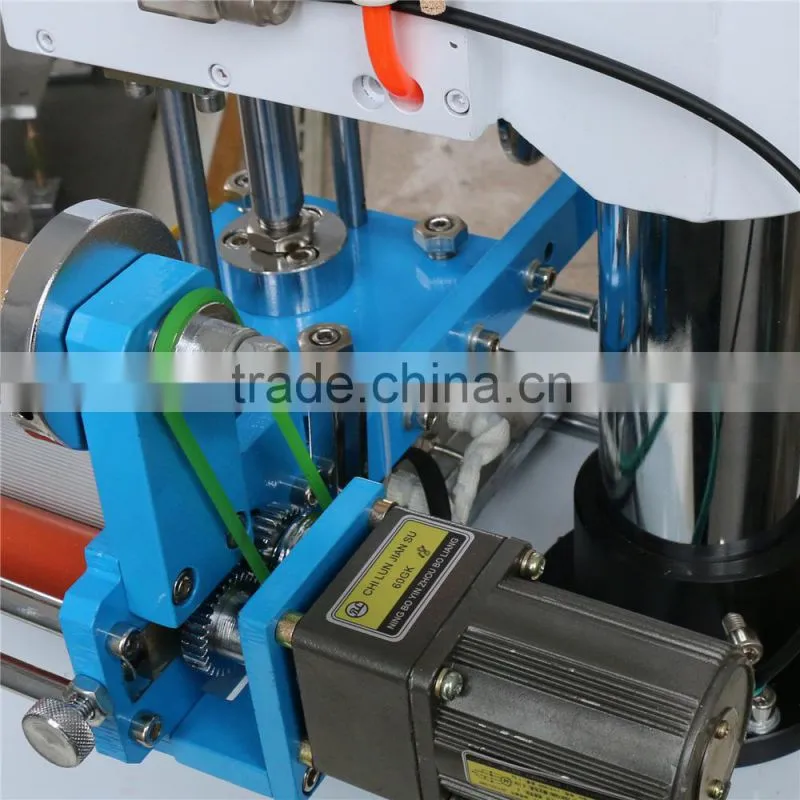

ZY-819H2 implements the principle of pneumatic automation. Paper feeding and receiving adopts motor accurately automatic coiling of
tape. The amount of paper feeding is self-adjustable. This model
has the advantages of high degree of automation, high pressure
high precision, and other advantages. It is an ideal equipment for
gold blocking and embossing.
Product Parameters
| Power input | 220V/60Hz |
| Power | 600W |
| Speed | 10-60time/min |
| Delayed | 0-5sec |
| Temperature | MA×200℃ |
| Applyr ange | 0-150mm |
| Printable area | 116X120mm |
| Net weight | 54.3KG |
| Gross weight | 61.3KG |
| External dimensions | 360×440×800mm |
| Package size | 420×450×870mm |
Cylinder pressure chart
| Diameter | Air pressure | Pressure | Diameter | Air pressure | Pressure | Diameter | Air pressure | Pressure |
| (MM) | (MPA) | (KG) | (MM) | (MPA) | (KG) | (MM) | (MPA) | (KG) |
| ∅80 | 5 | 230 | ∅100 | 5 | 370 | ∅125 | 5 | 530 |
| ∅80 | 6 | 270 | ∅100 | 6 | 440 | ∅125 | 6 | 630 |
| ∅80 | 7 | 320 | ∅100 | 7 | 520 | ∅125 | 7 | 730 |
| ∅80 | 8 | 360 | ∅100 | 8 | 590 | ∅125 | 8 | 830 |
| Other Models:Pressure1200-3000kg | ||||||||
