Product use
This machine is used for gold blocking and embossing
workmanship of leather, plastic, rubber, wood, paper, and
other products. It improves the grade of the product and enhances market competitiveness.
Product features

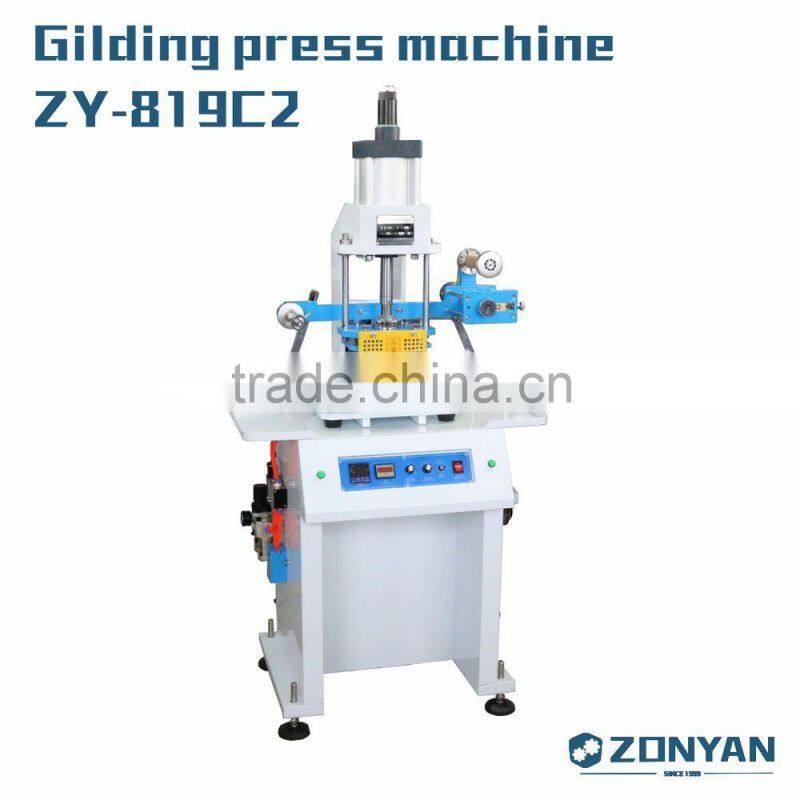

ZY-819C2 implements the principle of pneumatic automation. Paper feeding and receiving adopts motor accurately automatic coiling of
tape. The amount of paper feeding is self-adjustable. This model
has the advantages of high degree of automation, high pressure
high precision, and other advantages. It is an ideal equipment for
gold blocking and embossing.
Product Parameters
| Power input | 220V/60Hz |
| Power | 600W |
| Speed | 10-60 time/min |
| Delayed | 0-5 sec. |
| Temperature | Max 200°C |
| Height | 70mm |
| Area | 80x125mm: 150x230mm |
|
Net weight hand Net weight body |
60.7 Kg 26.4 Kg |
|
Gross weight hand Gross weight body |
66.9 Kg 32.2 Kg |
| Dimensions | 750x520x430mm |
|
Package size hand Package size hand |
750x520x430mm 410x810x770mm |
Cylinder pressure chart
| Diameter | Air pressure | Pressure | Diameter | Air pressure | Pressure | Diameter | Air pressure | Pressure |
| (MM) | (MPA) | (KG) | (MM) | (MPA) | (KG) | (MM) | (MPA) | (KG) |
| ∅80 | 5 | 230 | ∅100 | 5 | 370 | ∅125 | 5 | 530 |
| ∅80 | 6 | 270 | ∅100 | 6 | 440 | ∅125 | 6 | 630 |
| ∅80 | 7 | 320 | ∅100 | 7 | 520 | ∅125 | 7 | 730 |
| ∅80 | 8 | 360 | ∅100 | 8 | 590 | ∅125 | 8 | 830 |
| Other Models:Pressure1200-3000kg | ||||||||
