Help Center360W Switching Power Supply
Related Products
Specifications
360W Switching Power Supply1.Industrial power supply
2.High quality and attractive price
3.Material: zinc or copper

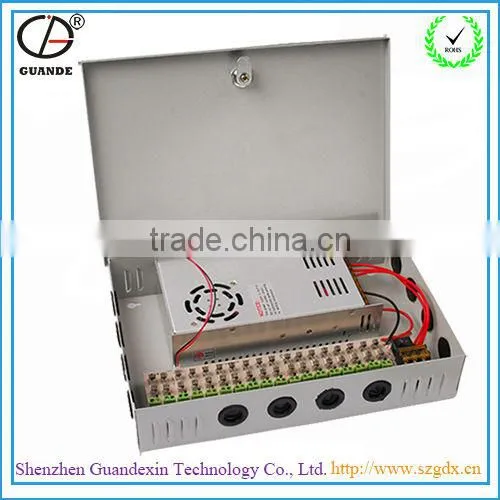

360W Switching Power Supply
Application: Industrial, security monitoring, machine, equipment, LED billboard, medical treatment, electrical, communications, etc.
1. Digital and electronic products
2. Fiber transceivers, game player, LED, CCTV camera
3. Communications and security products
4. Electrical equipment, instrument, etc.
Feature:
1. Full range of input (Selectable by switch)
2. Over current, over voltage and short circuit protection
3. 100% full load test
4. Low price and reliable quality
5. Two years’ warranty
Technical specification
Input Voltage: 85-264V AC, 47-63Hz; 120-370V DC
Impact Current: Cold start current
DC Voltage Adjustable Scope: 10% of the rated output voltage
Overload Protection: 115% ~ 150% of current, automatic recovery
Over Voltage Protection: 115%-135% of output voltage
Start, Rising and Hold-up Time: 300ms, 50ms, 80ms
Withstanding Voltage: 1.5KV AC between input and output, 1.5KV AC between input and shell, 0.5KV AC between output and shell: all last for one minute.
Working Temperature: -10-+ 60°C
Relative Humidity: 20-90% RH
Safety Standards: Complying with CE standard
EMC Standards: Complying with CE standard
Technical Specification | ||||
Max. Output Wattage |
360W |
|||
|
Input |
Voltage |
90-132V AC, 180-260V AC (Selectable by switch) |
||
Frequency |
50-60Hz |
|||
Current (Full load) |
6.5A Max. (115V AC), 4A Max. (230V AC) |
|||
Inrush Current |
<60A Max. |
|||
Leakage Current |
<3.5mA (240V AC) |
|||
|
Output |
Voltage |
5V DC |
12V DC |
24V DC |
Voltage Accuracy |
±3% |
±2.5% |
±1.25% |
|
Max. Current |
50 |
30 |
15 |
|
Line Regulation |
±0.5% |
±0.5% |
±0.5% |
|
Load Regulation |
±1% |
±1% |
±1% |
|
Min. Load |
0% |
0% |
0% |
|
Typical Efficiency |
80% |
84% |
89% |
|
Adjustable Range of Voltage |
4.5-6.5V DC |
9-15V DC |
22-27V DC |
|
Max. Ripple & Noise |
150mV |
150mV |
150mV |
|
Hold-up Time |
20ms Min. |
|||
Switching Frequency |
30-100KHz |
|||
|
Protection |
Over Load |
105-150% of Rated Output Power Protection Type: Auto Recovery |
||
Short Circuit |
Protection Type: Auto Recovery |
|||
Over Temperature |
RTH1≥65°C(Fan On),≤55°C(Fan Off),TP≥80°C Protection Type: Auto Recovery |
|||
|
Electric Strength |
Input-Output |
1500V AC |
||
Input-FG |
1500V AC |
|||
Output-FG |
1500V AC |
|||
Isolation Resistance |
Input-Output, Input-FG, Output-FG: 100Mohms/500V DC |
|||
|
Environment |
Operating Temperature |
-10-+50°C (Refer to The Point 4 Output Load Deration Curve) |
||
Storage Temperature |
-25-+85°C |
|||
Temperature Coefficient |
±0.03%°C(0°C<t<50°C) |
|||
Humidity |
95%RH |
|||
MTBF |
>50000h@25°C(MIL-HDBK-217F) |
|||
Vibration |
10-500Hz, 2G 10Min./Cycle, 60Min. Along X, Y, Z Axes |
|||
|
Feature |
Dimension(L*W*H) |
|
||
Weight |
|
|||
Cooling Method |
DC Fan |
|||
|
Safety & EMC |
Safety Standards |
UL60950 EN60950 |
||
EMI |
EN55011 Class B EN55022 Class B |
|||
EMS Immunity |
EN55024 EN61000-6-2 |
|||
Harmonic Current |
EN61000-3-2 |
|||
