1.24V Power Supply2.High quality and attractive price
3.Over load and short circuit protection
4.No limited MOQ

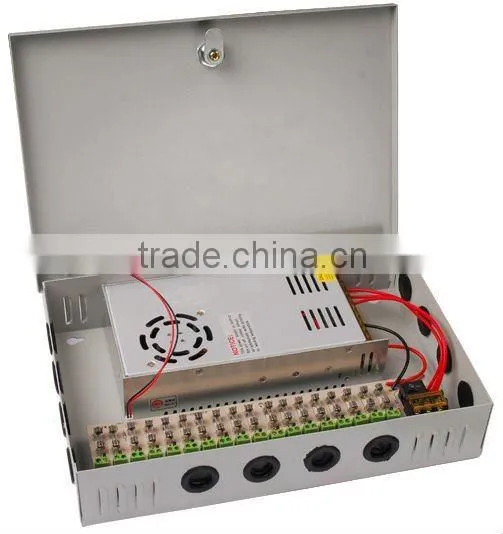

24V Power Supply
Product introduction
Full range of input, communication with the flow, over-voltage, short circuit protection function, since the cold heat dissipation, 100% full load test, low price, machine of high quality, reliable quality, 1 year of quality assurance
The input voltage range: 85-264 VAC, 47-63 Hz; 120-370 VDC
Impact current: cold start current
Dc voltage adjustable scope: 10% of the rated output voltage
Overload protection: 115% ~ 150% off current, automatic recovery
Over-voltage protection: output voltage of 115% 135%
Start up, keep time: 300 ms, 50 ms, 80 ms
Sex: input/output voltage between input and the shell: 1.5 KVAC output and the shell KVAC lasted a minute 0.5
Working temperature, humidity:-10 oC-+ 60 oC, 20%-90% RH
Safety standards: complying with CE standard
EMC standards: complying with CE standard
The power to be applicable to the industry, safety monitoring, machine, equipment, medical treatment, electrician, LED billboards, communication, and so on! Extensive use!
Technical Specification | ||||
Max. Output Wattage |
360W |
|||
|
Input |
Voltage |
90-132V AC, 180-260V AC (Selectable by switch) |
||
Frequency |
50-60Hz |
|||
Current (Full load) |
6.5A Max. (115V AC), 4A Max. (230V AC) |
|||
Inrush Current |
<60A Max. |
|||
Leakage Current |
<3.5mA (240V AC) |
|||
|
Output |
Voltage |
5V DC |
12V DC |
24V DC |
Voltage Accuracy |
±3% |
±2.5% |
±1.25% |
|
Max. Current |
50 |
30 |
15 |
|
Line Regulation |
±0.5% |
±0.5% |
±0.5% |
|
Load Regulation |
±1% |
±1% |
±1% |
|
Min. Load |
0% |
0% |
0% |
|
Typical Efficiency |
80% |
84% |
89% |
|
Adjustable Range of Voltage |
4.5-6.5V DC |
9-15V DC |
22-27V DC |
|
Max. Ripple & Noise |
150mV |
150mV |
150mV |
|
Hold-up Time |
20ms Min. |
|||
Switching Frequency |
30-100KHz |
|||
|
Protection |
Over Load |
105-150% of Rated Output Power Protection Type: Auto Recovery |
||
Short Circuit |
Protection Type: Auto Recovery |
|||
Over Temperature |
RTH1≥65°C(Fan On),≤55°C(Fan Off),TP≥80°C Protection Type: Auto Recovery |
|||
Electric Strength |
Input-Output |
1500V AC |
||
Input-FG |
1500V AC |
|||
Output-FG |
1500V AC |
|||
Isolation Resistance |
Input-Output, Input-FG, Output-FG: 100Mohms/500V DC |
|||
|
Environment |
Operating Temperature |
-10-+50°C (Refer to The Point 4 Output Load Deration Curve) |
||
Storage Temperature |
-25-+85°C |
|||
Temperature Coefficient |
±0.03%°C(0°C<t<50°C) |
|||
Humidity |
95%RH |
|||
MTBF |
>50000h@25°C(MIL-HDBK-217F) |
|||
Vibration |
10-500Hz, 2G 10Min./Cycle, 60Min. Along X, Y, Z Axes |
|||
|
Feature |
Dimension(L*W*H) |
|
||
Weight |
|
|||
Cooling Method |
Naturally Air-cooled |
|||
|
Safety & EMC |
Safety Standards |
UL60950 EN60950 |
||
EMI |
EN55011 Class B EN55022 Class B |
|||
EMS Immunity |
EN55024 EN61000-6-2 |
|||
Harmonic Current |
EN61000-3-2 |
|||
