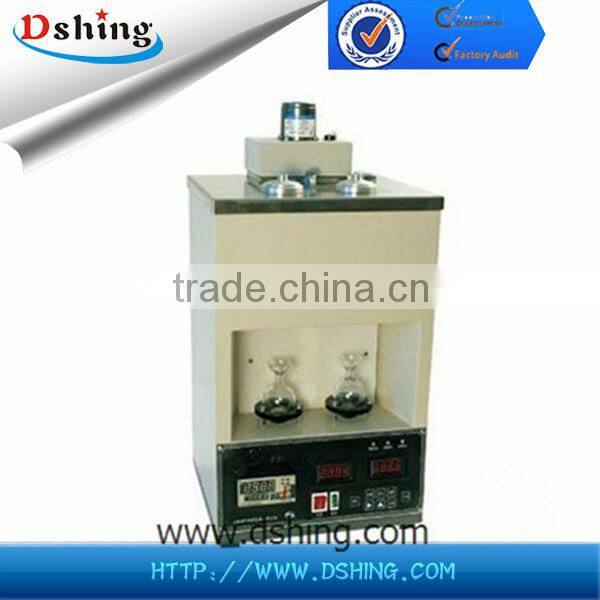

Help CenterDSHD-0623 Saybolt Viscosity Analyzer For Asphalt
Related Products
-
DSHD-0623 Saybolt Viscosity AnalyzerUS$ 600 - 5,000MOQ: 1 Set -
DSHD-0623 Saybolt Viscosity TesterUS$ 2,800 - 3,000MOQ: 1 Set
-
DSHD-2801G Penetrometer (For Paraffin Wax)US$ 1,399 - 1,499MOQ: 1 Set
-
DSHD-2806G Softening Point Tester for Bitumen/AsphaltUS$ 2,500 - 2,700MOQ: 1 Set
-
DSHD-2806G Computer Asphalt Softening Point TesterUS$ 3,200 - 4,000MOQ: 1 Set
1:DSHD-0623 Saybolt Viscosity Tester is designed and developed as per T0623 “Asphalt Saybolt Viscosity Test (Saybolt Viscometer Methods)” in the Industry Standard JTJ052 Specification and Test Methods of Bitumen and Bituminous Mixture for Highway Engineering.
2:DSHD-0623 Saybolt Viscosity Tester is applied to determine viscosity of petroleum asphalt and liquid petroleum asphalt.The instrument is used to decide the construction temperature.
Main structure and characteristics:
1:DSHD-0623 Saybolt Viscosity Tester is mainly made up of bath, bath temperature controller, and measurement parameters display calculator (calibration coefficient, time, viscosity, etc).
2:DSHD-0623 Saybolt Viscosity Tester adopts microprocessor controlling technology and has function of two-way determination.
3:DSHD-0623 Saybolt Viscosity Tester can make parallel determination for two samples at the same time. The instrument can digitally show test parameters and calculate average value of test data.
4:DSHD-0623 Saybolt Viscosity Tester can also convert Saybolt viscosity into Engler viscosity or Kinematic viscosity. Only make determination once, you can get three types of test data. The instrument is efficient and reliable.
Technical parameters:
1. Power supply: AC 220V±10%, 50 Hz;
2. Types: Desktop;
3. Working mode: Two-way determination; parallel test;
4. Sample receiving bottle: 60±0.05ml;
5. Heating power: 1000 W;
6. Working temperature range of bath: room temperature ∼240.0°C;
7. Temperature controlling accuracy of bath: ±0.1°C;
8. Timing range: 0.0s∼999.9s;
9. Timing accuracy: ±0.1s;
10. Ambient temperature: ≤35°C;
11. Relative humidity: ≤85%;
