Specifications
Proton Magnetic Detector1,high sensitivity
2,high acccuracy
3,easy to operate

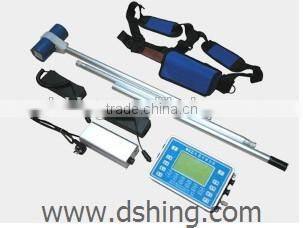

DSHZ-1 Proton Magnetic Detector
DSHZ-1 proton magnetic detector is the new generation of proton magnetic detector with new technology based on home and overseas advanced magnetometer. The measuring accuracy is ±1nT, resolution up to 0.1nT, which is according to the demand of <Regulations of ground high precision magnetic survey> issued by original Geology and Minerals Department.
Application :
Oil &gas survey, and problems relative with oil &gas geological and earth structure; general survey; Earthquake warning signs monitoring, volcano observation and other environmental disaster geological works; Geological map of magnetic survey in mineral prospecting: iron ore, zinc lead ore, copper ores etc; Study ore’s buried depth, vein direction, continuity, shape and size, ore scale estimation; Detailed survey, general survey and geological mapping; Surface daily variation station of navigation and ocean magnetic measurement; Fault location; Archology; Hydrology; Engineering exploration like pipe detection etc.; Detection of small ferromagnetic object and so on.
Main advantages:
1:Integration of clock: record time is stored together with the data measured
2:Large display, English interface, to display magnetic curves automatically, easy in operation. 3:Geomagnetic field and gradient measurement
4:Applicable in field survey or base station measurement 5:Each point saves information of latitude, longitude, elevation and time. You can measure and store them timely. 6:Backlight LCD screen can be used at night. 7:User-friendly keyboard can be used by both hands. 8:It can be tuned full range automatically or manually. 8:Portable, it uses probe antenna frame and operation is easily fulfilled by one person. With RS-232C computer interface. 9:Can draw isograms and profile graphs with professional geological software.
Technical Specifications:
• Power supply: External rechargeable lithium batteries, 14.5V/3Ah, or external power supply
• Measurement range: 20,000nT~100,000nT
• Measurement precision: 1nT
• Resolution: 0.1nT
• Allowed gradient: 5000nT/m
• GPS positioning accuracy: <2.5m CEP
• Data stored: 50,000, power-off protected
• LCD display screen: 240*128 pixel graph liquid
• Keyboard: 22 keys
• Interface: RS-232C standard serial port
• Dimension of mainframe: 230mm*155mm*65mm
• Weight of mainframe: 2.2kg (include batteries)
• Dimension of sonde: 75mm*155mm
•Weight of sonde: 0.8kg
• Working temperature: -10°C~+50°C
