1470-1610nm SM 80KM CWDM XFP DDM 10G XFP ZR
80KM CWDM XFP
Features
CWDM PON network including 10G CWDM XFP/SFP+ 10g CWDM X2/XENPAK
The 10GB CWDM XFP 1470nm to 1610nm 80km optical transceiver
ER/ZR optional
Supports 9.95Gb/s to 11.1Gb/s bit rates
Hot-Pluggable XFP footprint
Cooled EML transmitter and PIN receiver
Link length up to 120km
Average Output Power:0~4dBm
Receiver Sensitivity:-23dBm
Low Power Dissipation 1.5W Maximum
-5ºC to 70ºC Operating Case Temperature
Single 3.3V power supply
Diagnostic Performance Monitoring
RoHS compliant and lead free
Applications:
CWDM up to 10GBASE-ZR/ZW (with/without FEC)
10G Fiber Channel (with/without FEC)
CWDM PON network
10G CWDM Transceiver
| CWDM XFP(10G) | |||||
| CWDM XFP LR | 10G | (1270-1330nm) | 10KM | CWDM XFP | 0~70 |
| CWDM XFP ER | 10G | (1470-1610nm) | 40KM | CWDM XFP | 0~70 |
| CWDM XFP ZR | 10G | (1270-1610nm) | 80KM | CWDM XFP | 0~70 |
| CWDM SFP+(10G) | |||||
| CWDM SFP+(10G) LR | 10G | (1270-1330nm) | 10KM | CWDM SFP+ | 0~70 |
| CWDM SFP ER | 10G | (1470-1610nm) | 40KM | CWDM SFP+ | 0~70 |
| CWDM SFP ZR | 10G | (1470-1610nm) | 80KM | CWDM SFP+ | 0~70 |
| CWDM XENPAK(10G | |||||
| CWDM XENPAK ER | 10G | 1470~1610 | 40KM | XENPAK | 0~70 |
| CWDM XENPAK ZR | 10G | 1470~1610 | 80KM | XENPAK | 0~70 |
| CWDM X2 (10G) | |||||
| CWDM X2 -ERC | 10G | 1470~1610 | 40KM | X2 | 0~70 |
| CWDM X2-ZRC | 10G | 1470~1610 | 80KM | X2 | 0~70 |

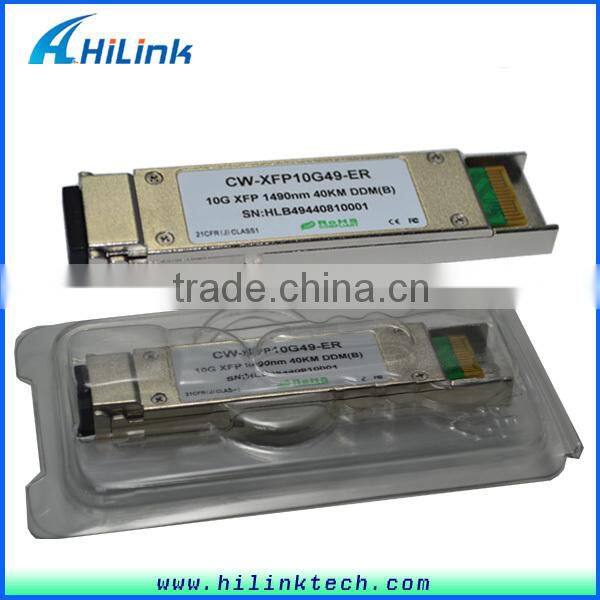

Product picture show
Shipment
International Express: DHL,FedEx,EMS,TNT, UPS and so on. It takes 2-7 days.
OEM and ODM
OEM/ODM order is available.
Guarantee
We promise all the advertised optical transceivers are brand new with new components and parts and absolutely never use old and refurbished materials. All the optical transceivers have been through functional test and aging test. We provide 3 years warranty for all the optical transceivers from the date of shipment.
What we supply
We supply all kinds of compatible optical transceiver modules, including SFP, GBIC, SFP+, XENPAK, X2 , XFP, BIDI,CWDM,DWDM and other special transceiver modules. Our products are compatible with Cisco, Ciena, H3C, HP, Extreme, Foundry, Avaya, D-link, Alcatel, Riverstone, Enterasys, Netgear, Nortel, Juniper, Ruijie, Zyxel, Huawei,etc
