10/100/1000Base-T Copper RJ45 SFP GLC-T Transceiver

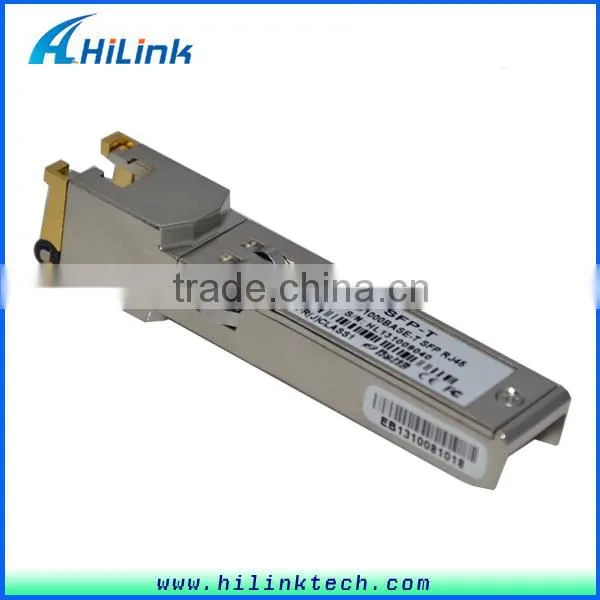

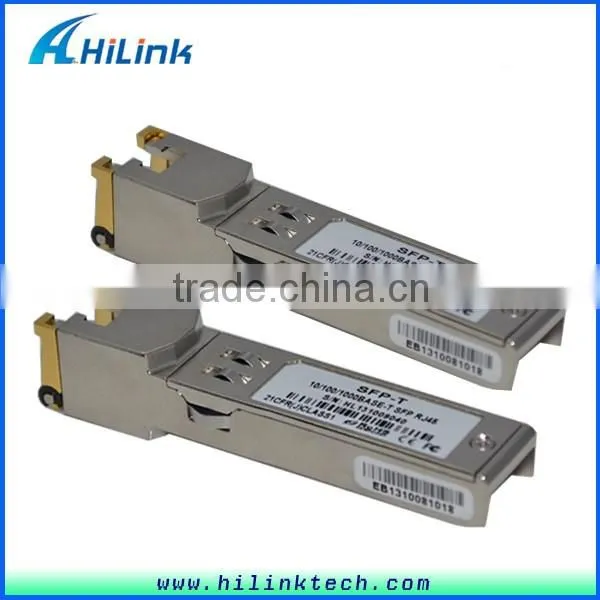

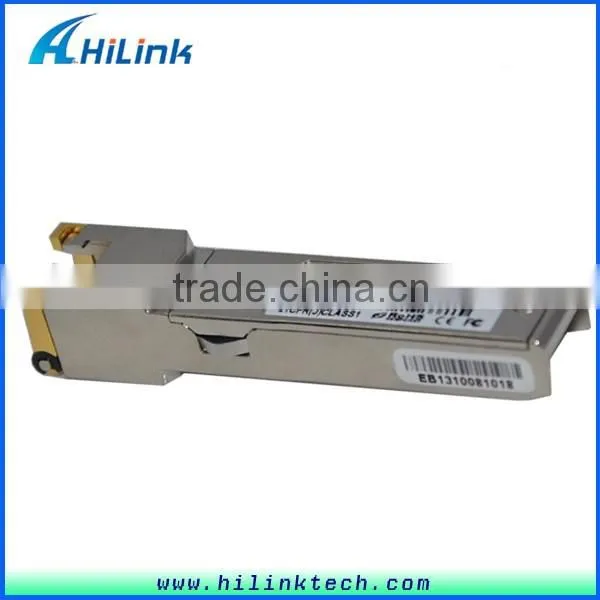

10/100/1000M Copper SFP Transceiver RJ45
Copper Small Form Pluggable (SFP) transceivers is high performance, cost effective module compliant with the Gigabit Ethernet and 10/100/1000Base-T standards as specified in IEEE 802. 3-2002 and IEEE 802.3ab, which supporting 1000Mbps data- rate up to 100 meters reach over unshielded twisted-pair CAT 5 cable.
The module supports1000 Mbps (or10/100/1000Mbps) full duplex data-links with 5-level Pulse Amplitude Modulation (PAM) signals. All four pairs in the cable are used with symbol rate at 250Mbps on each pair. The module provides standard serial ID information compliant with SFP MSA, which can be accessed with address of A0h via the 2wire serial CMOS EEPROM protocol. The physical IC can also be accessed via 2wire serial bus at address ACh.
Features:
Up to 1.25Gb/s bi-directional data links
Hot-pluggable SFP footprint
Extended case temperature range (0°C to +85°C )
Fully metallic enclosure for low EMI
Low power dissipation (1.05 W typical)
Compact RJ-45 connector assembly
Access to physical layer IC via 2-wire serial bus
1000 BASE-T operation in host systems with SERDES interface
10/100/1000Mbps compliant in host systems with SGMII interface
Applications:
Fiber Channel
Fast Ethernet
GLC-T SFP compatible brand: Cisco, Huawei, Ciena, H3C, HP, Extreme, Foundry, Brocade, D-link, Alcatel, Riverstone, Enterasys, Netgear, Nortel, Juniper, Ruijie, Zyxel, etc.
Our Service:
1. Contact our sales for more details to confirm your order.
2. Short lead time after confirmation.
3. We deliver goods by international Express.
4. Quick response for customers' feedback and other questions.
Shipment & Payment
1. International Express: DHL, Fedex, UPS, EMS, UPS, TNT and etc.
2. Payment: T/T, Western Union, Paypal and so on.
Guarantee:
›& Brand new.
›& OEM/ODM is available.
›& 100% through quality test and aging test.
›& 3 years warranty(From the date of shipment).
Technician support:
We support technical guide to solve malfunction or substitute components, and provide the project of related networking configuration.
After-sales service
We have after service for 24 hours, promises to supply technical service or guide in anytime.
Our co-workers will be response clients's requirement in 12 hours after emergency happened.
Packing Details: Static bag, Plastic PVC Pack, Retail box, Technical box, or customized.
Company Informations:
Shenzhen Haili Link Technology Co., Ltd. which is specialized in manufacturing and marketing fiber optic products, was founded in 2007.
RoHS, ISO&CE cerificated, we are golden supplier which specializes in this field 10 years with superior quality, competitive price and good solution.
Our core competencies are fiber optics of CFP, QSFP28, QSFP SR4&LR4, CWDM SFP/XFP/X2, DWDM SFP/XFP/X2, solutions of DWDM, CWDM, WDM, MPO, AAWG, etc.
We have an independent Research&Development Department with 8 skillful engineers, with some advanced equipments and devices, such as cisco switch and routers, for further detailed test and procedure.
We also have related optical products and good solutions to satisfy customers' requirements.
CWDM/DWDM Mux/Demux Module, CWDM/DWDM/BiDi SFP/XFP, Xenpak/X2, CFP2/QSFP, and etc..
Send me an inquiry with your requirements directly or add my skype (hilink02) for further information.
