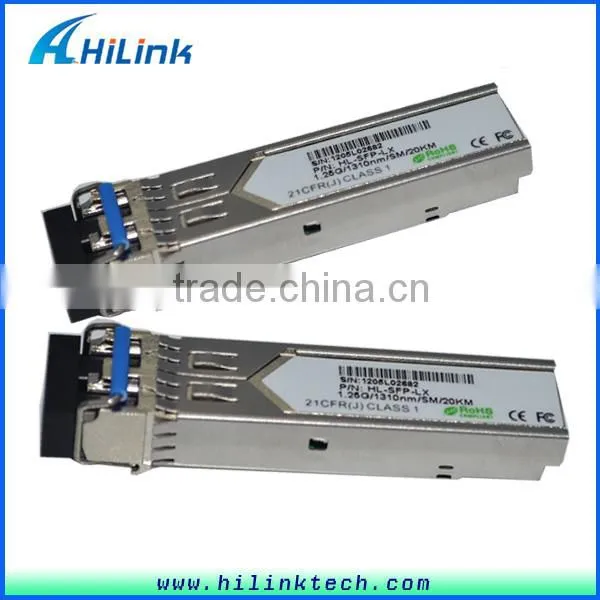

Dual LC 1000Base-LX D-Link SFP 1310nm 20Km
1000Base-LX D-Link SFP
1 Features:
1.1 1310nm FP laser and PIN photodetector
1.2 Meet SFP MSA and SFF-8472 with LC receptacle
1.3 Digital diagnostic monitoring
1.4 10KM transmission with SMF
1.5 Hot-pluggable
1.6 Metal enclosure for lower EMI
1.7 +3.3V Single power supply
1.8 Qualified to meet the intent of Bellcore reliability practices
1.9 LVPECL logic interface simplifies interface to external circuitry
1.10 LVTTL logic level RX LOS
1.11 With pull de-latch
1.12 With 9/125 µm single mode fiber (SMF)
1.13 Operate data rate:1.25Gb/s;
1.14 operate temperature Standard :0 to +70°C,Extended : -20 to +85°C,industrial : -40 to +85°C
1.15 Complies with RoHS directive
2 Application:
2.1 Gigabit Ethernet
2.2 Switch to Switch interface
2.3 Switched backplane applications
2.4 Router/Server interface
2.5 Other optical transmission systems
3 General
1G SFP GLC-LH-SM is compliant with the Small Form-Factor Pluggable (SFP) Multi-Source Agreement (MSA) and SFF-8472. It offers previously unavailable system cost, upgrade, and reliability benefits by virtue of being hot-pluggable. The optical transceiver is ROHS compliant, each of the components is lead-free.
Description
1G SFP GLC-LH-SM are high performance, cost effective modules supporting data-rate of 1.25Gbps/1.0625Gbps and 10km transmission distance with SMF.
1G SFP GLC-LH-SM consists of three sections: a DFB laser transmitter, a PIN photodiode integrated with a trans-impedance preamplifier (TIA) and MCU control unit. All modules satisfy class I laser safety requirements.
1G SFP GLC-LH-SM are compatible with SFP Multi-Source Agreement (MSA) and SFF-8472.
Gigabit Ethernet Transceivers
Cisco Part Number |
Description |
GLC-T= |
1000BASE-T SFP transceiver module for Category 5 copper wire, RJ-45 connector |
GLC-SX-MM= |
1000BASE-SX SFP transceiver module for MMF, 850-nm wavelength, dual LC/PC connector |
GLC-LH-SM= |
1000BASE-LX/LH SFP transceiver module for MMF and SMF, 1310-nm wavelength, dual LC/PC connector |
GLC-ZX-SM= |
1000BASE-ZX SFP transceiver module for SMF, 1550-nm wavelength, dual LC/PC connector |
GLC-BX- D= |
1000BASE-BX10 SFP module for single-strand SMF, 1490-nm TX/1310-nm RX wavelength, single LC/PC connector |
GLC-BX-U= |
1000BASE-BX10 SFP module for single-strand SMF, 1310-nm TX/1490-nm RX wavelength, single LC/PC connector |
GLC-2BX-D= |
Dual-channel 1000BASE-BX10 SFP module for single-strand SMF, 1490-nm TX/1310-nm RX wavelength, two single LC/PC connectors |
SFP-GE-S= |
1000BASE-SX SFP transceiver module for MMF, 850-nm wavelength, extended operating temperature range and DOM support, dual LC/PC connector |
SFP-GE-L= |
1000BASE-LX/LH SFP transceiver module for MMF and SMF, 1300-nm wavelength, extended operating temperature range and DOM support, dual LC/PC connector |
SFP-GE-Z= |
1000BASE-ZX SFP transceiver module for SMF, 1550-nm wavelength, extended operating temperature range and DOM support, dual LC/PC connector |
SFP-GE-T= |
1000BASE-T SFP transceiver module for Category 5 copper wire, extended operating temperature range, RJ-45 connector |
Shipment
International Express: DHL, FedEx,EMS,TNT, UPS and so on. It takes 3-7 days.
OEM and ODM
OEM/ODM order is available.
Guarantee
We promise all the advertised optical transceivers are brand new with new components and parts and absolutely never use old and refurbished materials. All the optical transceivers have been through functional test and aging test. We provide 3 years warranty for all the optical transceivers from the date of shipment.
What we supply

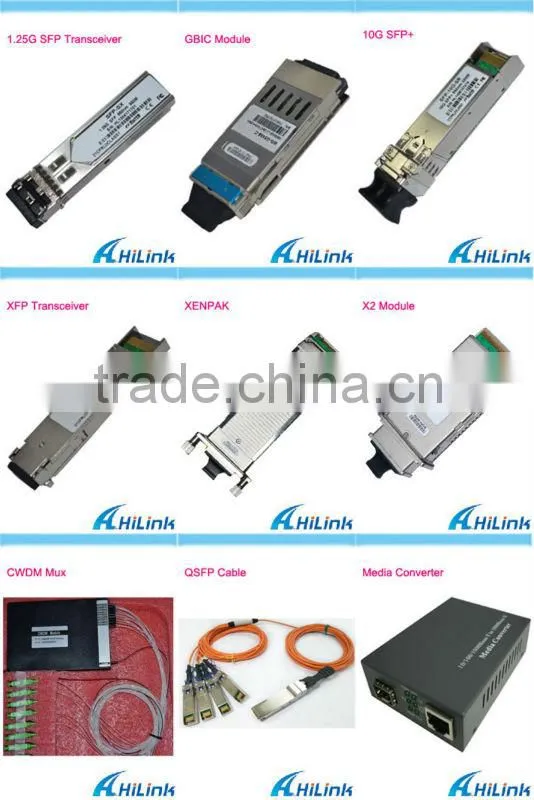

We supply all kinds of compatible optical transceiver modules, including SFP, GBIC, SFP+, XENPAK, X2 , XFP, BIDI,CWDM,DWDM and other special transceiver modules. Our products are compatible with Cisco, Ciena, H3C, HP, Extreme, Foundry, Avaya, D-link, Alcatel, Riverstone, Enterasys, Netgear, Nortel, Juniper, Ruijie, Zyxel, Huawei,etc.

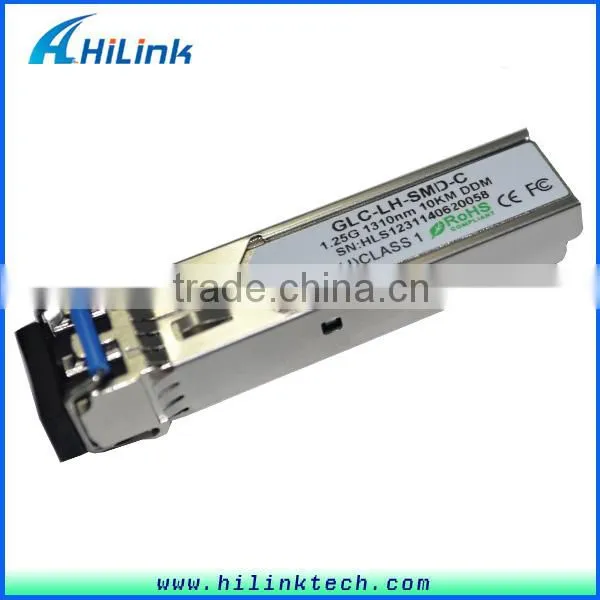

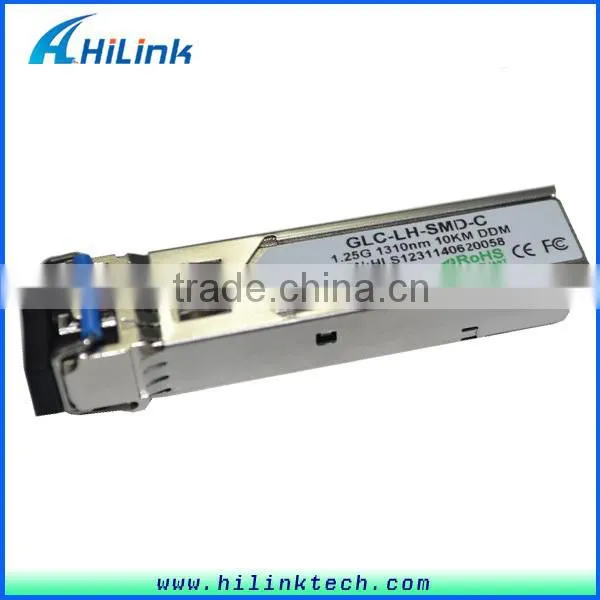

Product picture show

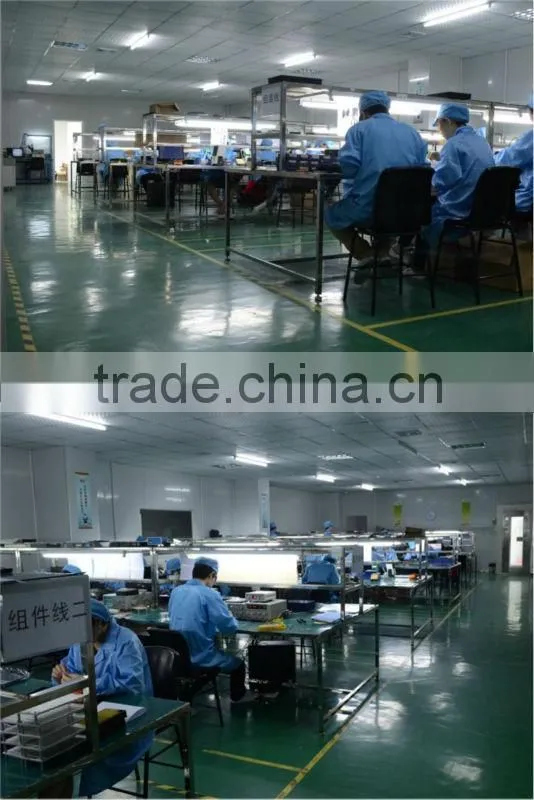

Our factory
Certificates
