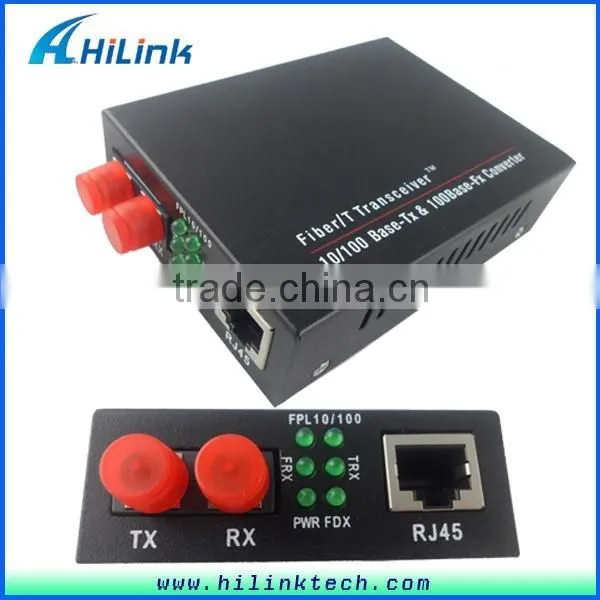

Dual Fiber FC RJ45 Connector Media Converter 10/100Base

Name: Dual Fiber FC RJ45 Connector Media Converter 10/100Base
Brand: Haili
SKU: 125145195

US$ 10 - 50 MOQ: 1 Piece

Key Specifications

Place of Origin:

Guangdong, China

Brand Name:

Haili

Model Number:

HL-Media Converter-xxxxx

Shenzhen Haili Link Technology Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

FOBSZ

Delivery Detail:

Delivery time depends on order quantity.

Place of Origin Guangdong, China

Brand Name Haili

Model Number HL-Media Converter-xxxxx

Specifications

1.Dual Fiber FC RJ45 Connector Media Converter 10/100Base
2.Warranty 3 years
3.Media converter
4.Fast delivery

Dual Fiber FC RJ45 Connector Media Converter 10/100Base

Feature

1. Support one 10/100/1000Base-T Gigabit Ethernet UTP port and one 1000Base-SX / LX Gigabit Ethernet Fiber port

2.Support 802.3x flow control for full-duplex ports and backpressure for half-duplex ports

3.Support comprehensive types of fiber with different distances and connections, including SC/Bidi/LC and so on

4. Support auto mode on TP port

5. Fully compatible with CISCO, HP, 3COM equipment.

6. Low power consumption design, low heat dissipation for stable working.

7. Support inter-conversion between adaptive 10Base-T/100Base-TX/1000Base-T and 1000Base-SX/LX

8. Support full-duplex and half-duplex, auto-negotiation

9. Support automatic cross connection of twisted pair interfaces, facilitating system commissioning and installation

10.Support the transmission of extra-long VLAN packets

11. Support Quality of Service (QoS) and ensuring the transmission of VoIP packets;

12.Support STP to form a redundant network;

13. Options in single mode dual fiber, multi-mode dual fiber, and single mode in single fiber

14. Multi Mode transmission distance:550M,Single Mode transmission distance:up to 80KM

15. Slide-in design optional, can be installed into HT100-2U-16 rack chassis

16. With wall mountable hole for industrial application

17. RoHS compliant

18 LFP(Link fault pass-through) Function,with DIP switch for setting

arameter	Specifications
Access mode	10/100/1000Mbps Gigabit Ethernet
Standard	IEEE802.3 10Base-T Ethernet, IEEE802.3u 100Base-TX/FX Fast Ethernet, IEEE802.3ab 1000Base-T , IEEE802.3z 1000Base-SX/LX Gigabit thernet,IEEE802.1qVLAN,IEEE802.1p QoS,IEEE802.1d Spanning Tree
Wavelength	850nm/1310nm/1550nm
Transmission distance	multi-mode Dual-fiber: 220m (62.5/125um)/550m (50/125um) single mode Dual-fiber: 20/40/60/80 Km single mode Single fiber: 20/40/60/80 Km Category-5 twisted pairs: 100m
Port	One RJ45 port: Connecting with STP/UTP category-5 twisted pairs One optical port: Multi-mode Dual-fiber: SC (50, 62.5/125um) Single mode Dual-fiber: SC/FC (9/125um) Single mode Single fiber: SC/FC (9/125um)
Conversion means	Media conversion
Delay	<10us
BER	<10^-9
MTBF	100,000 hours
LED indicator	PWR ,100M;FXL,1000M,TX,RX;
Power supply	AC220 0.5A/DC-48 (built-in)
Power consumption	5W
Operating temperature	-10~55°C
Operating humidity	5%~90%
Storage temperature	-40~70°C
Maintaining humidity	5% ~ 90% non-condensing
Dimensions	95mm70mm25mm(external power supply)
