Specifications
10/100/1000Base Single Mode Ethernet Media Converter1. 10/100Mbps RJ45 port
2. SC,single mode
3. Transmission 20/40/60/80km
Optical 10G Media Converter
10G Media Converter
Feature
1. Support one 10/100/1000Base-T Gigabit Ethernet UTP port and one 100Base-SX / LX Gigabit Ethernet Fiber port
2.Support 802.3x flow control for full-duplex ports and backpressure for half-duplex ports
3.Support comprehensive types of fiber with different distances and connections, including SC/Bidi/LC and so on
4. Support auto mode on TP port
5. Fully compatible with CISCO, HP, 3COM equipment.
6. Low power consumption design, low heat dissipation for stable working.
7. Support inter-conversion between adaptive 10Base-T/100Base-TX/1000Base-T and 1000Base-SX/LX
8. Support full-duplex and half-duplex, auto-negotiation
9. Support automatic cross connection of twisted pair interfaces, facilitating system commissioning and installation
10.Support the transmission of extra-long VLAN packets
11. Support Quality of Service (QoS) and ensuring the transmission of VoIP packets;
12.Support STP to form a redundant network;
13. Options in single mode dual fiber, multi-mode dual fiber, and single mode in single fiber
14. Multi Mode transmission distance:550M,Single Mode transmission distance:up to 80KM
15. Slide-in design optional, can be installed into HT100-2U-16 rack chassis
16. With wall mountable hole for industrial application
17. RoHS compliant
18 LFP(Link fault pass-through) Function,with DIP switch for setting
Specification
parameter |
Specifications |
Access mode |
10/100/1000Mbps Gigabit Ethernet |
Standard |
IEEE802.3 10Base-T Ethernet, IEEE802.3u 100Base-TX/FX Fast Ethernet, IEEE802.3ab 1000Base-T , IEEE802.3z 1000Base-SX/LX Gigabit thernet,IEEE802.1qVLAN,IEEE802.1p QoS,IEEE802.1d Spanning Tree |
Wavelength |
850nm/1310nm/1550nm |
Transmission distance |
multi-mode Dual-fiber: 220m (62.5/125um)/550m (50/125um)
single mode Dual-fiber: 20/40/60/80 Km
single mode Single fiber: 20/40/60/80 Km
Category-5 twisted pairs: 100m
|
Port |
One RJ45 port:
Connecting with STP/UTP category-5 twisted pairs
One optical port:
Multi-mode Dual-fiber: SC (50, 62.5/125um)
Single mode Dual-fiber: SC/FC (9/125um)
Single mode Single fiber: SC/FC (9/125um)
|
Conversion means |
Media conversion |
Delay |
<10us |
BER |
<10-9 |
MTBF |
100,000 hours |
LED indicator |
PWR ,100M;FXL,1000M,TX,RX; |
Power supply |
AC220 0.5A/DC-48 (built-in) |
Power consumption |
5W |
Operating temperature |
-10~55°C |
Operating humidity |
5%~90% |
Storage temperature |
-40~70°C |
Maintaining humidity |
5% ~ 90% non-condensing |
Dimensions |
95mm*70mm*25mm(external power supply) |

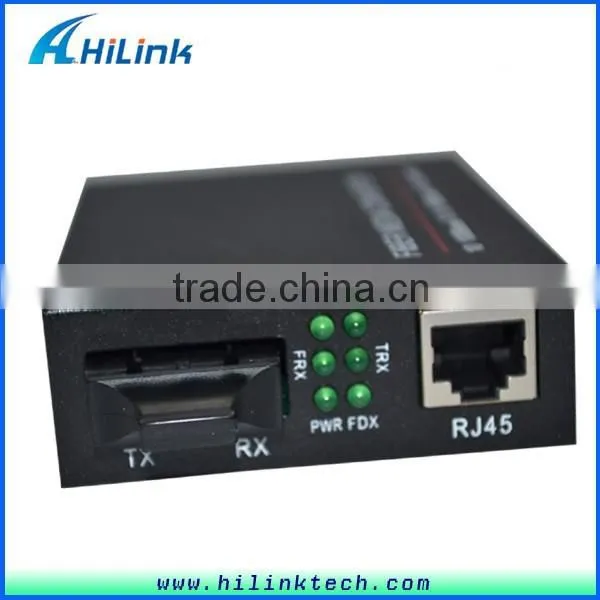

Picture show
Media converter
FAQ
Q:Do you sell second-hand products?
A:No.All our products are brand new,we never use secont-hand components.
Q:What payment terms do you accept?
A:T/T,Paypal,Western Union are acceptable.
Q:What are the shipping ways can you offer?
A:Our usual shipping ways are DHL,FedEX,TNT,UPS,EMS etc.It will take 3-7days.
Q:Do your products come with warranty?
A:Yes,We provide 3 years warranty for all our products from the date of shipment.
Q:What devices can your products compatible with?
A:Our products are compatible with Cisco,Huawei, Ciena, H3C, HP, Extreme, Foundry, Brocade, D-link, Alcatel, Riverstone, Enterasys, Netgear, Nortel, Juniper, Ruijie, Zyxel, etc.
Q:How to place an order?
A:1>Order details confirmed,please tell us the model and quantity you need.
2>Proforma Invoice confirmed, the order will be arranged upon receipt of your payment.
3>Confirm and ship the goods, then tracking number will be sent to you promptly.
4>We will help to track your goods until you receive them safely.
As we have various kinds of products,if you can't find the correct item,please send us inquiry.We will follow up shortly.
