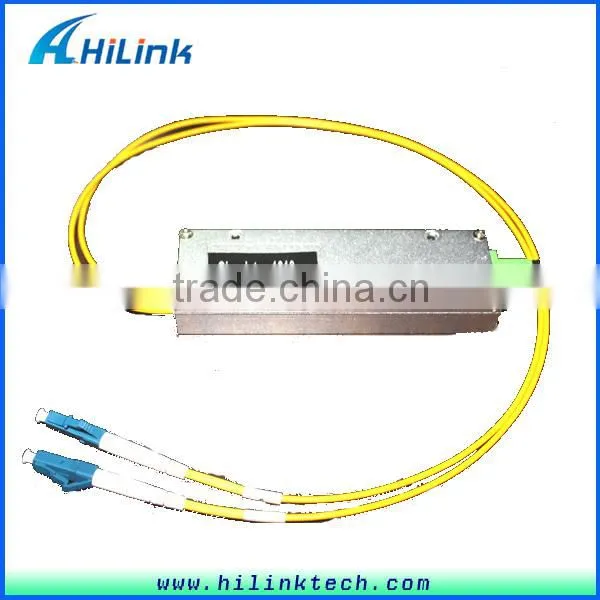

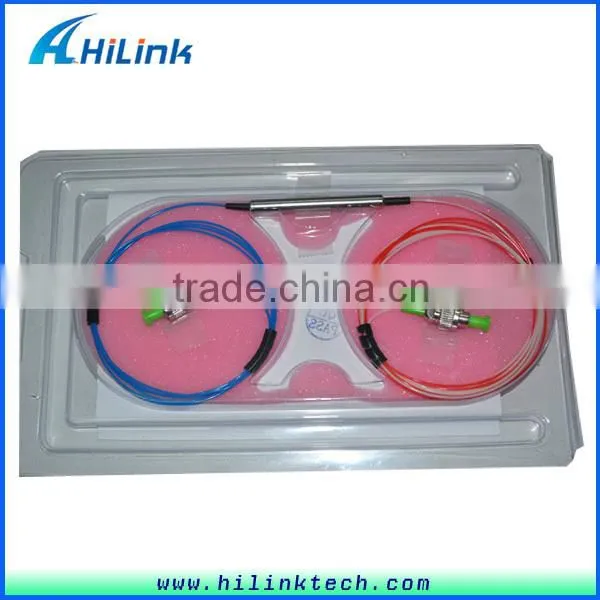

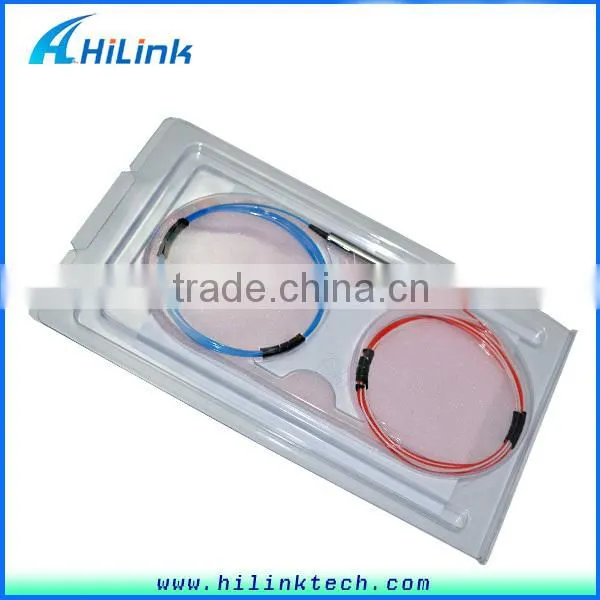

3 ports Polarization-Insensitive 1310nm 1550nm Optical Circulator
Optical Circulator
An optical circulator is a three port device that allows light to travel in only one direction - from port 1 to port 2, then from port 2 to port3. This feature is very important to optical bidirectional transmission and communication. Usually, it was use for optical transceiver, FBG(fiber Bragg grating) filter and optical amplifier
Features
High Channel Isolation
Low Insertion Loss
High Return Loss
Low PDL
High Stability and Reliability
Compact in-Line Package
Epoxy Free Optical Patch
Application:
•Optical Fiber Amplifier
•Broadcast Communication
Optical Circulator Parameter:
Grade |
GRADE P |
GRADE A |
Construction |
Port1 to Port 2, Port2 to Port3 |
|
Operation Wavelength(nm) |
1310/1550/ C&L |
|
Standard Input Loss(23°C) |
0.6 |
0.8 |
Max. Insertion Loss(23°C) |
0.8 |
1 |
Max. Isolation(dB) |
50 |
|
Min. Isolation(dB) |
40 |
|
Directivity(dB) |
50 |
|
PDL(dB) |
0.15 |
|
PMD(ps) |
0.1 |
|
RL(dB) |
50 |
|
Bandwidth(nm) |
+/-30 |
|
Max. Operating Power(mw) |
500 |
|
Operating Temperature(°C) |
0~70 |
|
Storage Temperature(°C) |
-40~85 |
|
Dimension (mm) |
Φ5.5xL50 or 90*20*9.5 |
|
Shipment
International Express: DHL, FedEx,EMS,TNT, UPS and so on. It takes 3-7 days.
OEM and ODM
OEM/ODM order is available.
We can supply products according to your requirements, and design products label for your company.
Guarantee
We promise all the advertised optical transceivers are brand new with new components and parts and absolutely never use old and refurbished materials. All the optical transceivers have been through functional test and aging test. We provide 3 years warranty for all the optical transceivers from the date of shipment.
Product picture show
FAQ
Q:Do you sell second-hand products?
A:No.All our products are brand new,we never use secont-hand components.
Q:What payment terms do you accept?
A:T/T,Paypal,Western Union are acceptable.
Q:What are the shipping ways can you offer?
A:Our usual shipping ways are DHL,FedEX,TNT,UPS,EMS etc.It will take 3-7days.
Q:Do your products come with warranty?
A:Yes,We provide 3 years warranty for all our products from the date of shipment.
Q:What devices can your products compatible with?
A:Our products are compatible with Cisco,Huawei, Ciena, H3C, HP, Extreme, Foundry, Brocade, D-link, Alcatel, Riverstone, Enterasys, Netgear, Nortel, Juniper, Ruijie, Zyxel, etc.
Q:How to place an order?
A:1>Order details confirmed,please tell us the model and quantity you need.
2>Proforma Invoice confirmed, the order will be arranged upon receipt of your payment.
3>Confirm and ship the goods, then tracking number will be sent to you promptly.
4>We will help to track your goods until you receive them safely.
As we have various kinds of products,if you can't find the correct item you need,please send us inquriy.We will follow up shortly.
