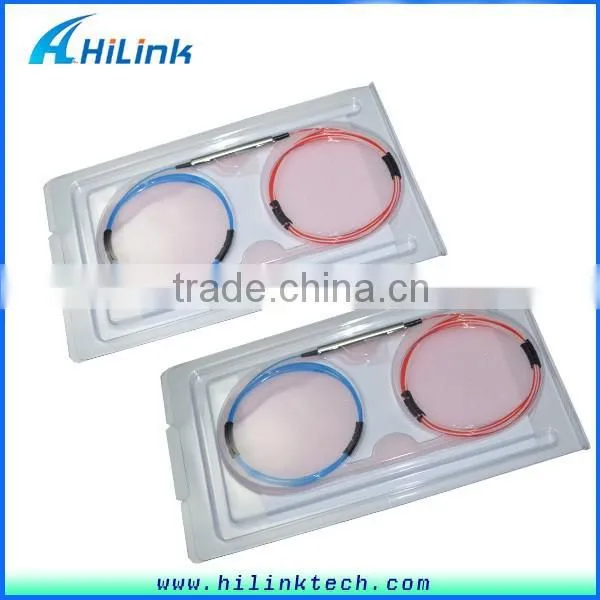

Fiber Amplifier WDM Optical Isolator
Feature
· Isolation
· Low Insertion Loss
· High Return Loss
· Polarization Dependent Loss
·Epoxy free on optical path
Application
· Optical Fiber Amplifier
· CATV
· Optical Testing System
· LAN
Item |
Unit |
Parameter |
|||
Central Wavelength |
nm |
1310 or 1550 |
|||
Bandwidth |
nm |
±30 |
|||
Max IL |
dB |
0.8 |
|||
Min Wavelength Isolation |
dB |
≥53 |
|||
|
±10nm Broadband Typical Isolation |
dB |
57 |
|||
Max Polarization Sensitivity |
dB |
0.2 |
|||
Min Directivity |
dB |
55 |
|||
Max Temperature Coefficient |
dB/°C |
0.004 |
|||
|
Operating Temperature |
°C |
-20 ~ +75 |
|||
Storage Temperature |
°C |
-40 ~ +85 |
|||
Dimension |
mm |
5.5×30
|
Products Series:
Guarantee
We promise all the advertised optical transceivers are brand new with new components and parts and absolutely never use old and refurbished materials. All the optical transceivers have been through functional test and aging test. We provide 3 years warranty for all the optical transceivers from the date of shipment.
What we supply
We supply all kinds of compatible optical transceiver modules, including SFP, GBIC, SFP+, XENPAK, X2 , XFP, BIDI,CWDM,DWDM and other special transceiver modules. Our products are compatible with Cisco, 3COM, H3C, HP, Extreme, Foundry, Avaya, D-link, Alcatel, Riverstone, Enterasys, Netgear, Nortel, Juniper, Ruijie, Zyxel, Huawei,etc.
Any questions, please feel free to contact us!
International Express: DHL, FedEx, EMS,TNT, UPS and so on. It takes 3-7 days.
Payment: T/T, Western union, Paypal, credit and so on.
Factory:
Certificates:
