Placer Alluvial Gold Mining Gold Trommel Screen for Sale

FOB Price

US$ 2,100 - 23,600 / Set

1 Set(Min. Order)

Port Xiamen Guangzhou Shenzhen Shanghai
Payment TermsT/T L/C D/P D/A Money Gram Credit Card PayPal

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Condition	New	Type	Other, Trommel screen, Mobile/Stationary type Gold Trommel Screen
Production Capacity	100-150t/h	Place of Origin	Jiangxi, China
Brand Name	Perry's Gold Trommel Screen	Model Number	GT1545 Gold Trommel Screen
Voltage	220V-480V or customized	Power(W)	15kw
Dimension(LWH)	596019003080mm	Weight	6000kg
Certification	CE, ISO9001:2008	Warranty	1 Year Excluding Spare Parts
After-sales Service Provided	Engineers available to service machinery overseas

Product Description

Placer Alluvial Gold Mining Gold Trommel Screen for Sale

Product Description

Product Description

Gold Trommel Screen

Representing a new generation of sieving equipment, the trommel screen (Gold Trommel Screen) has effectively overcome the blocking problems of the circular and linear vibrating screen when screening the wet materials, which has improved the productivity and reliability of the whole screening process.

So it has been more and more popular and widely applied in the placer/alluvial gold washing process, especially the river sand gold process. In addition, it is also very popular & effective in sand washing and screening as well as top soil screening.

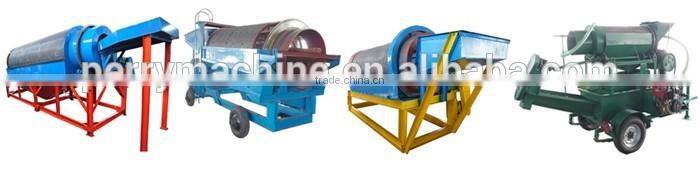

As per the market demands, we could supply many kinds of trommel screen:

>> Stationary type, mobile type Gold Trommel Screen

>> Small scale type, large scale type Gold Trommel Screen

>> Motor engine type, diesel engine type Gold Trommel Screen

>> Single layer type, double layer type Gold Trommel Screen

Technical Specifications
Model	Capacity (t/h)	Power (kw)	Drum dia. (mm)	Drum length (mm)	Screen size (mm)	Dimension (mm)	Weight (kg)
GT1015	50	4.0	1000	1500	<3~10	300014002145	2200
GT1020	100	5.5	1000	2000		346014002145	2800
GT1225	160	7.5	1200	2500		414616002680	4200
GT1530	250	11	1500	3000		446019002820	5100
GT1545	350	15	1500	4500		596019003080	6000
GT1848	450	22	1800	4800		650023004000	7500
GT2055	600	30	2000	5500		750025004000	8600

Structure

Gold Trommel Screen

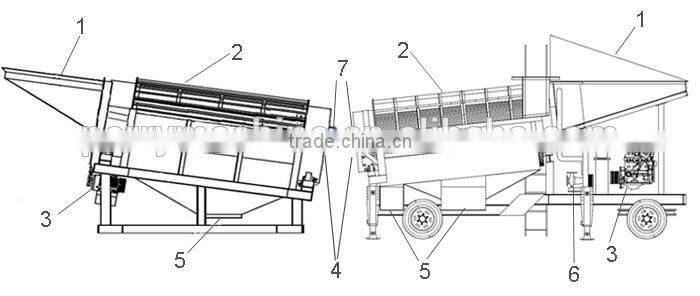

The Gold Trommel Screen is consist of mainly 6 parts which are cylinder, main frame, discharging devices, reducer, electric motor / diesel engine, and flushing water device.

1. Feeding chute 2. Screen trommel 3. Motor/Diesel engine 4. Uppersize discharging outlet

5. Bottomsize discharging outlet 6. Water pump 7. Flushing water pipe

Product Images

Detailed Images

Gold Trommel Screen

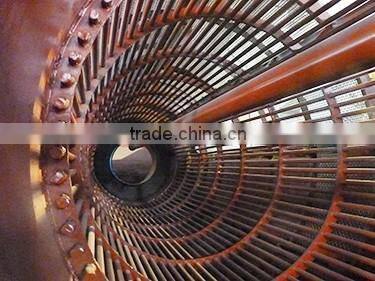

	Part name: Trommel Brand: Perry Origin: China The trommel can be single layer or double layer. The external trommel is usually the waved type, while the internal one is always made of steel bar. The type and material of trommel can be customized, too.

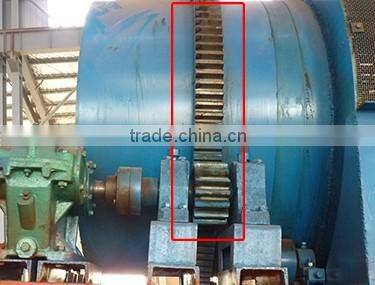

Part name: Drive system--gear drive Brand: Perry Origin: China The drive can be sprocket type or gear type. Usually the larger sizes are with gear drive as it is more durable. Gold Trommel Screen

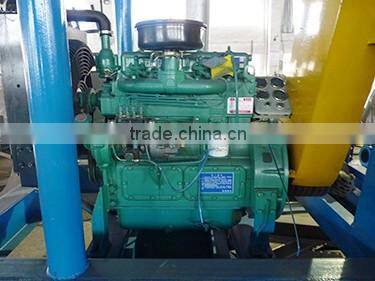

	Part name: Diesel engine Brand: Perry Origin: China The diesel engine for Perry's machine are with high quality and specially for export. The machine can be equipped with diesel engine, elec motor, or diesel generator. Just tell us which one you prefer. Gold Trommel Screen

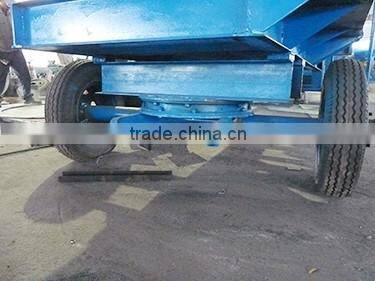

Part name: Mobile plant Brand: Perry Origin: China For large scale mobile type trommel screen, there will be totally 6 wheels. Gold Trommel Screen

Packaging & Shipping

Packing & Delivery

Gold Trommel Screen

	FCL Gold Trommel Screen
	Size	Gold Trommel Screen
	Weight	Gold Trommel Screen

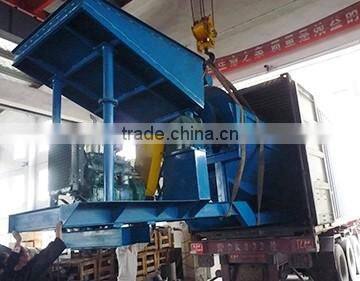

	Packing details	The machine is usually loaded and fixed in the container mostly assembled.

	LCL Gold Trommel Screen
	Size	Gold Trommel Screen
	Weight	Gold Trommel Screen

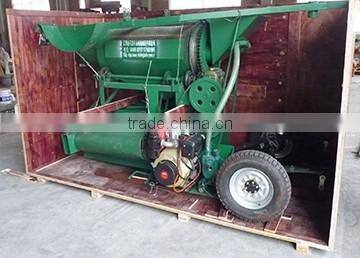

	Packing details	LCL usually refers to the smaller models. The machine is packed disassembled so as to save the volume.

Our service

Perry Mining will offer you the turnkey solution for your ore mining professionally. Just trust us and let us do it for you!
