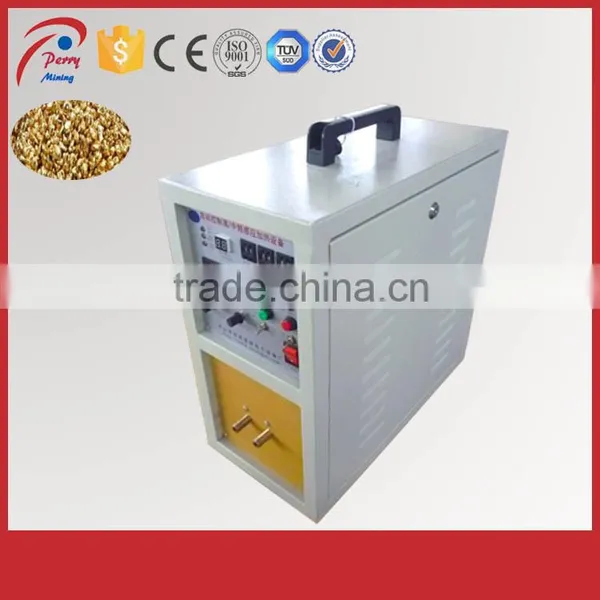

Good Melting Furnace for Melting Metal
Frequency conversion electromagnetic induction heating or induction heating for short is a method for heating metal materials by converting power frequency power supply into that of specific range based on the principle of electromagnetic induction. It is mainly applicable to the metal hot working. heat treatment. welding and melting.
This Furnace for Melting Metal is also in our product lines as after gold concentration, gold would be extracted from concentrates, then melted into gold bar.
Power and Technological Characteristics of Furnace for Melting Metal
- Induction heating mainly through the crucible. to precious metal in an instant , then smelting .refining ,casting and other processes.
- For the precious metals: platinum, palladium, rhodium, gold, silver, copper. Steel, gold powder, sands, tin, tin slag ash all these melting point metals.
- A single molten metal quantity:1kg-50kg.a single melting time:2-20 minutes.
- The maximum furnace temperature up to 1500-2000 degrees.
- Commission for the mummer of ash –like powder high up to 97 percent.

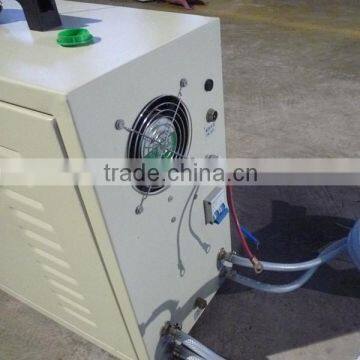

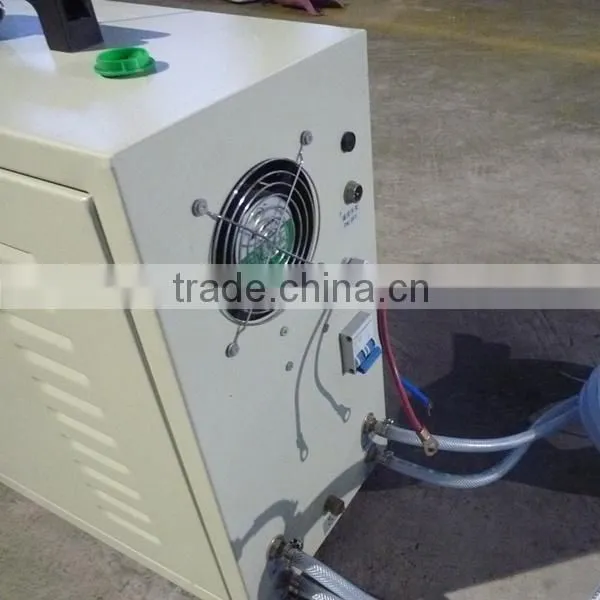

Requirements of Cooling Water of Furnace for Melting Metal
| Water feeding temperature | <50°C |
| Pressure | >0.1MPa |
| Flow | 5-20L/min |
| Max. Temperature of discharging water | not over 70°C |
| Water quality | Clean soft water |
Advantages of Furnace for Melting Metal
1. Fast heating, wide heating
2. Comprehensive protection
3. Easy installations. Easy operation
4. High effectiveness
5. Small size and light weight
6. Elimination of high voltage
Technical Specifications of Furnace for Melting Metal
Model | 15A | 25A | 35AB | 45AB | 60AB | 80AB | 100AB | 120AB |
Power | 5kw | 5kw | 10kw | 15kw | 25kw | 35kw | 45kw | 70kw |
Power Source | 220V | 380V | 380V | 380V | 380V | 380V | 380V | 380V |
Oscillation frequency | 20-50KHZ | 1-10KHZ | ||||||
Batch melting capacity for gold, copper, silver | 1~2kg | 1~4kg | 1~8kg | 1~10kg | ~20kg | ~30kg | ~50kg | 80~100kg |
Batch melting time | ≤3Min | ≤5Min | ≤5Min | ≤20Min | ≤20Min | ≤30Min | ≤40Min | ≤50Min |

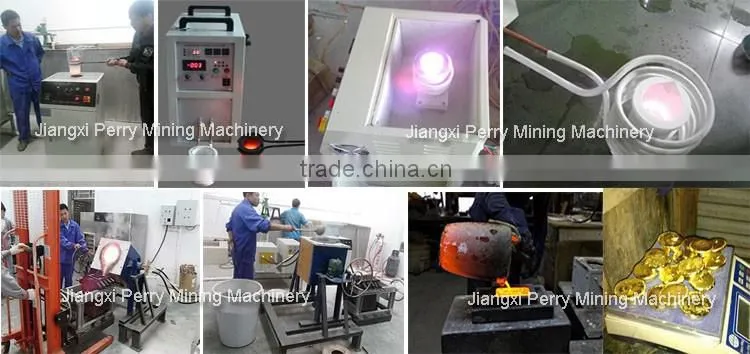

Types available of Furnace for Melting Metal
There are mainly 3 types of Furnace for Melting Metal, they are:

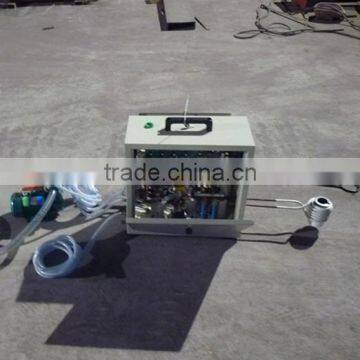

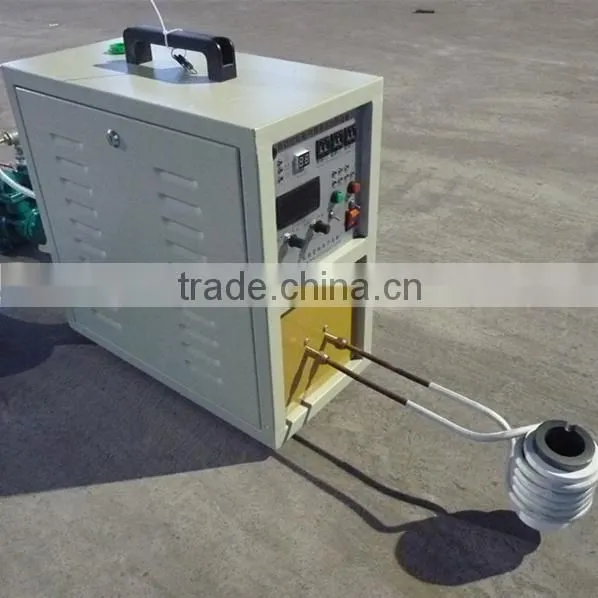

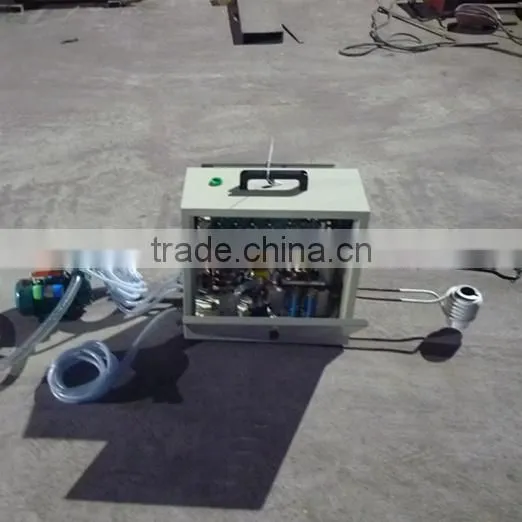

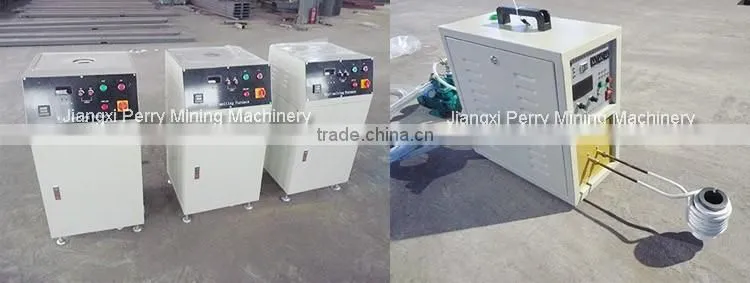

- Portable type Furnace for Melting Metal
- Cabinet type Furnace for Melting Metal
- Tilting type Furnace for Melting Metal

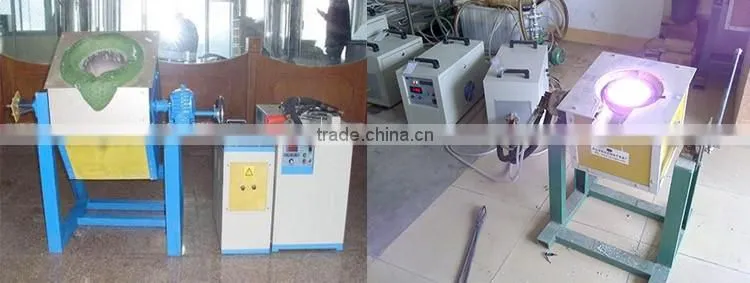

| Cabinet type melting furnace | Portable type melting furnace |
| Models 15A to 45AB are cabinet and portable type for option | |
| Auto tilting type melting furnace | |
| Models 60AB to 120AB are tilting type with larger capacity |

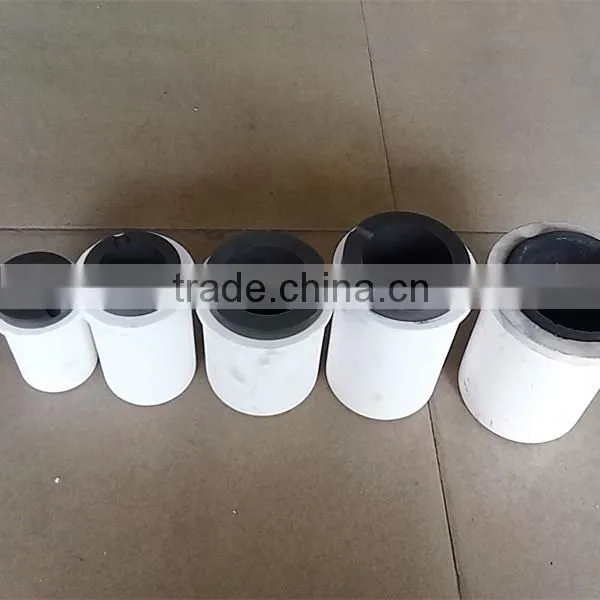

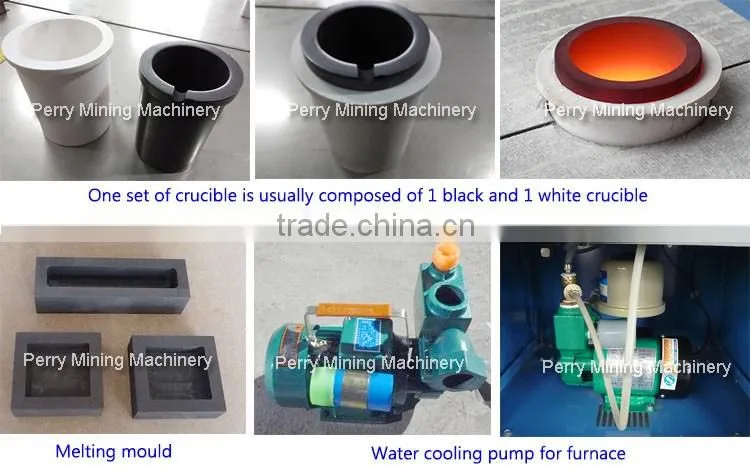

Each set of melting furnace is configured with one set of crucible and one crucible tongs.

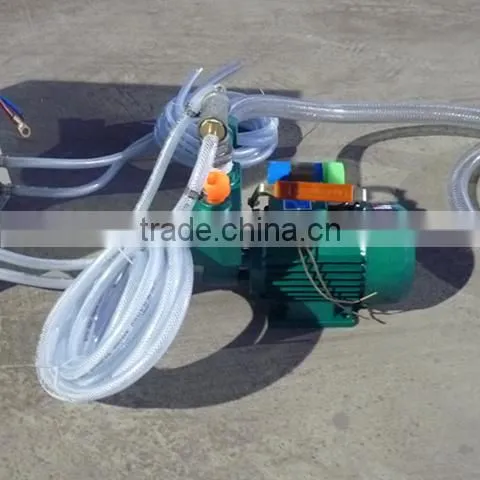

The cooling water pump for cabinet type furnace has been included in the configuration.
But the portable type furnace from 25A to 120AB do not include the pump in the factory configuration.
Furnace for Melting Metal Furnace for Melting Metal Furnace for Melting Metal

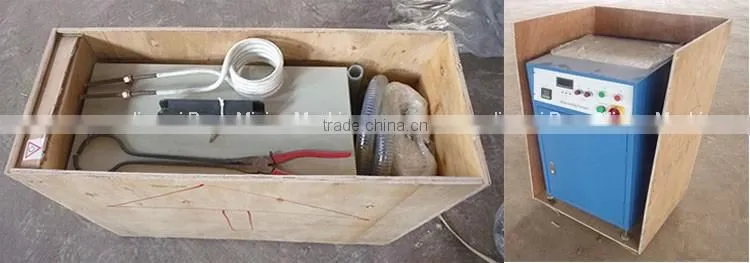

The melting furnace is usually packed in plywood boxes.
Furnace for Melting Metal Furnace for Melting Metal Furnace for Melting Metal

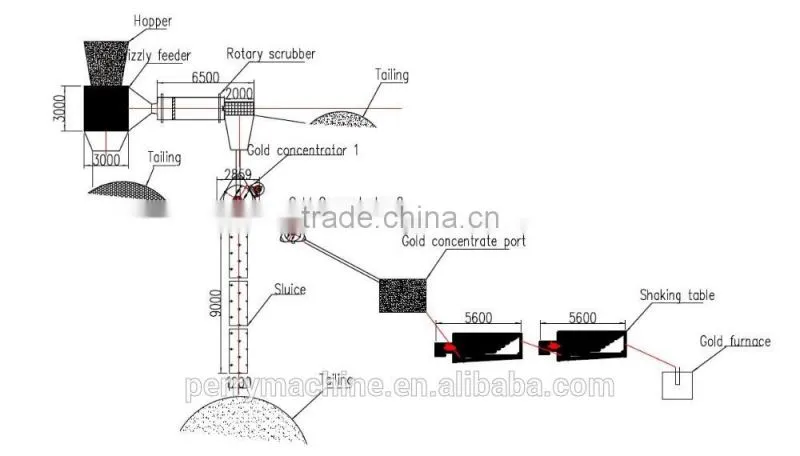

Perry Mining will offer you the turnkey solution for your ore mining. Trust us and let us do it for you!
Furnace for Melting Metal Furnace for Melting Metal Furnace for Melting Metal
Jiangxi Perry Mining Machinery Manufacturing Co., Ltd, professional in mining equipment manufacturing, has more than 25 years' manufacturing experiences. Our equipment had been exported to more than 50 foreign countries.
| Jiangxi Perry Mining Machinery Manufacturing Co., Ltd is a company who specially supplies mining equipment for export, layout design, plant installation & debugging, and technical support. With more than 25 years' manufacturing experiences, our customers and services have covered more than 50 countries all over the world.
Main product: complete gold washing plant, shaking table, gold concentrator, jig, spiral chute, trommel screen, ore washing machine, crushers, grinding mills, screening equipment, and so on. |
