Gold Clay Washing Machine Gold Rotary Scrubber

Name: Gold Clay Washing Machine Gold Rotary Scrubber
Brand: Perry's Gold Scrubber
Availability: InStock

FOB Price

US$ 2,300 - 15,000 / Set

1 Set(Min. Order)

Port Xiamen/Shenzhen/Guangzhou/Shanghai
Payment TermsT/T Credit Card

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Condition	New	Type	Gravity Separator
Production Capacity	15-35t/h	Place of Origin	Jiangxi, China
Brand Name	Perry's Gold Scrubber	Model Number	RXT930 Gold Scrubber
Voltage	220V-480V	Power(W)	15kw Gold Scrubber
Dimension(LWH)	500015002300mm	Weight	3.8t
Certification	CE, TUV, ISO9001	Warranty	1 Year
After-sales Service Provided	Engineers available to service machinery overseas

Product Description

Perry's gold scrubber ( Trommel Scrubber) are designed as a simple, efficient and economical solution for screening and classification of wide range of material, as well as to optimize the subsequent processing steps of recovery. Screening allows reducing investment and operating costs, and increasing the products quality with a rapid and large volume processing. Perry's offers the largest range of gold scrubber of different types and specifications, with a wide range of the processing capacities from 6 tons/hour up to 1000 tons/hour, per single Trommel Screen.

Main Features of gold scrubber

1) Good for washing and screening drum rotary scrubber

2) Easy to move, install, operate and maintain drum rotary scrubber

3) Safe Operation and Secure Production drum rotary scrubber

Specification of Gold Scrubber
Model	Drum size (mm)	Feeding size (mm)	Capacity (t/h)	Power (kw)	Weight (t)
RXT1030	φ 1000*3000	≤80	40	15	3.8
RXT1136	φ1100*3600	≤80	65	15	4.6
RXT1230	φ1200*3000	≤100	70	22	4.7
RXT1430	φ1400*3000	≤100	80	22	4.9
RXT1545	φ1500*4500	≤160	120	30	6.9
RXT1860	φ1800*6000	≤210	150	37	8.5
RXT2265	φ2200*6500	≤230	180	37	15.9

The gold scrubber is suitable for high clay ore washing (such as the raw ore from mountain). If your ore is with very low clay or the clay is with low viscosity, it is better to choose the trommel screen. Below are the photo of trommel screen.

Structure

Detailed Images

Gold Scrubber

Machine Parts

Name: Spraying water

Brand: Perry's

Original: China

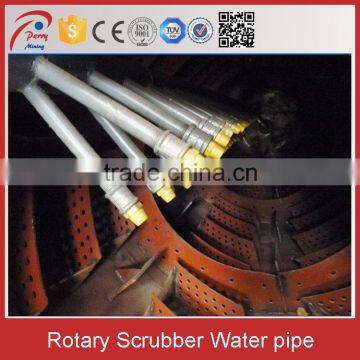

This is the inside of the gold scrubber. There are sprayers and blades with holes. drum rotary scrubber drum rotary scrubber

drum rotary scrubber

Gold Scrubber

Machine Parts

Name: Control box
Brand: Perry's
Original: China

It's to control the speed and protect the equipment.

drum rotary scrubber drum rotary scrubber

Gold Scrubber

Machine Parts

Name: Screen
Brand: Perry's
Original: China

Gold scrubber could wash and screen the material at the same time.

drum rotary scrubber drum rotary scrubber

Our Service

Jiangxi Perry Mining Machinery Manufacturing Co., Ltd is a company who specially supplies mining equipment for export, layout design, plant installation & debugging, and technical support. With more than 25 years' manufacturing experiences, our customers and services have covered more than 50 countries all over the world. Main product: gold washing plant, shaking table, Centrifugal Separator, jig, spiral chute, trommel screen, crushers, grinding mills, screening equipment, and so on.

Packing & Delivery

LCL
Size	297015301780mm
Weight	0.9-1t
Packaging Details	With plywood package for gold scrubber drum rotary scrubber drum rotary scrubber

FCL
Size	gold scrubber
Weight	gold scrubber
Packaging Details	1500*4500 gold scrubber takes one 20'container. drum rotary scrubber drum rotary scrubber drum rotary scrubber
