Military quality, first-class service!
Product features:

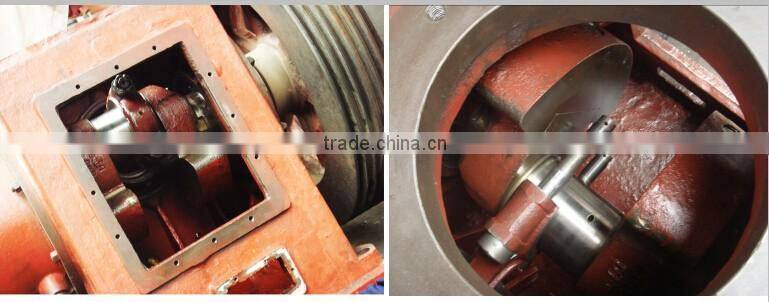

The new compressor generation is equipped with crank drives, which do no longer have any free dynamic forces and, thus, can be installed foundation-free.
Upon request, the compressors can be equipped with a valve and instrument panel, which will be designed either for manual or for fully automatic control.
Diaphragm
The metal diaphragms are fitted to be gas-tight (leakage rate normally approx. 10-4 mbar I/s, in special cases up to approx. 10-8 mbar I/s) and have an average life of approx. 4,000 hours, when working with clean uncontaminated gases.
Cooling
Due to the large surface of the diaphragm head, a considerable part of the compression heat is lost to the atmosphere. Larger machines are equipped with an additional cooling system for the hydraulic oil. The gas-side cooling is done by interstage coolers and aftercoolers; if requested, 1-stage machines can also be supplied with or without aftercoolers, depending on the application.

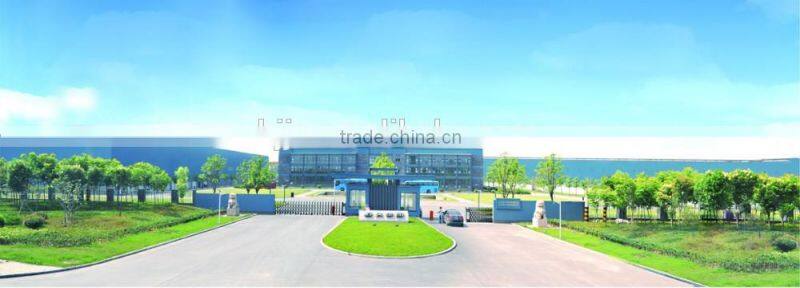

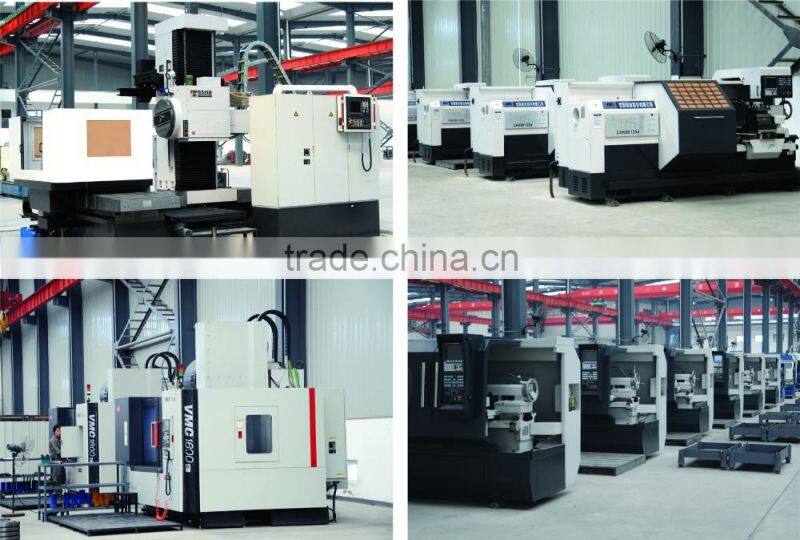

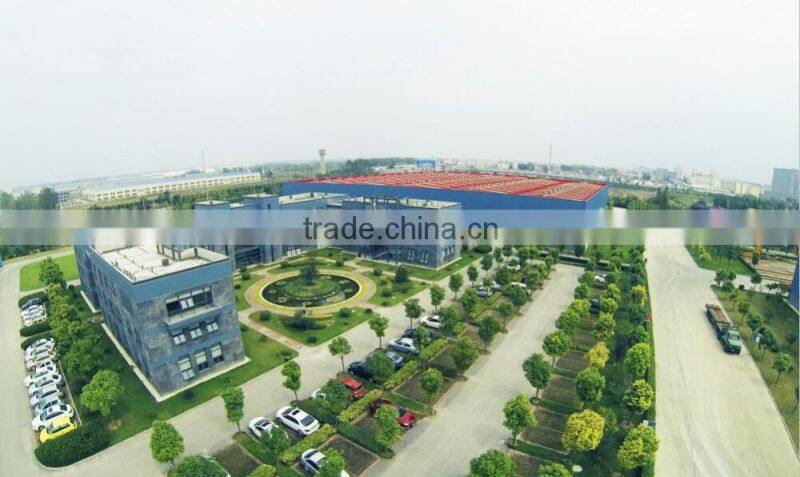

Covering an area of 40,000 square meters with the registered capital of 66.99 million Yuan, Jiangsu Permanent Machinery Co., Ltd. is an enterprise spanning a century. Having been engaged in the manufacturing of professional membrane compressors for 32 years, the enterprise is fully equipped with advanced production and processing equipment, as well as product testing and inspection equipment.
Currently, 4 series of membrane compressors are available, including GV, GL, GZ and GD, offering more than 100 types of products whose air displacement capability ranges from several cubic to thousands. And the maximum discharge pressure could reach up to 70Mpa. Our products are widely applied to aerospace, military equipment, nuclear power plants, petrochemical industry, etc.
Adhering to the company philosophy of “A Centenary Enterprise & Military Quality”, Permanent Machinery is committed to providing our customers with technology innovation-oriented high-performance products and satisfactory service.
WHY CHOOSE OUR COMPRESSOR?
1. Council member of General Mechanical Compressor Society Of China;
2. Provincial Diaphragm Compressor Engineering Technology Research Center;
3. Designated military compressor supplier in China;
4. Owning special mechanical machining, welding cold making, fabrication testing, measuring and detecting capacities and complete range of technical testing equipment;
5. Can strictly accord with client’s site conditions to specially make deformation deisgn and manufacture;
6. The most competitive price in China on the same quality and service level;
7. Yearly 365-day response client’s query after sale.
To have prompt and exact evaluation from factory, the following informations are essential to be provided by customer while inquiring:
1. Exact compression media: flammable, toxic, oxygen, inert gases. Preferably the gas composition can be provided;
2. Suction pressure, discharge pressure, flow capacity of compressor;
3. Control system: Requirement for manual start or full automatic control;
4. Electric parameters: Voltage, frequency, phase;
5. Any special requirement for compressed gas temperature, equipment package, configuration and etc..
We also can design piston reciprocating compressors according to clients' parameters to satisfy client's local environment and different needs. More detailed information can be provided with further communication.
If you are interested in our products,pls contact us with no hesitation.
Jiangsu Permanent Machinery Corp., Ltd
Website:
WhatsApp: 008615152464436
(WeChat)WeiXin: merry_chu
We are sincerely waiting for your inquiry.
