NFC Andriod mobile pos with biometric ,qr code scanner, payment terminal with free SDK--H-S1000
S1000 Smart Android POS=POS+Smartphone+1D/2D Code Scanner+Fingerprint
Multi-communication: GPRS/3G/Wi-Fi/Bluetooth;
Multi-pay: MSR magnetic card, EMV chip card and NFC contactless card;
Android OS, JAVA-based SDK for secondary development;
Smart and Security: Smartphone+1D/2D Code Scanner+Fingerprint
Feature
Ergonomics design:Large Color display, backlit, Capacitive touch screen
Easy of use for Mobile also for Table
Multiple communication:Multiple technology, such as, GPRS, 3G, Wifi, Blutooth
USB port for external device connection

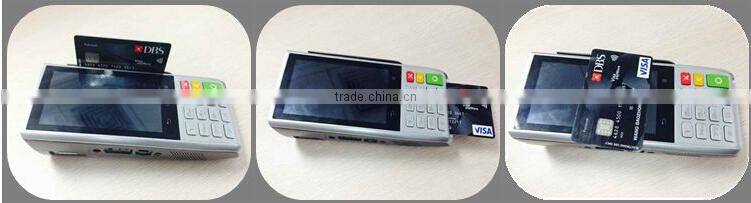

Multiple payment:magnetic card reader,contact smart card reader,contactless smart card reader
Multiple extended function:1D/2D Barcode,Fingerprint,GPS
Software Development:SDK based on Android ,JAVA ,HTML
Specification
Processor |
ARM Cortex A9 1GHz dual-core Main CPU(1G Hz) + secure CPU |
|
|
|
MAIN SYSTEM: |
|
512M/1G byte DDR3 SDRAM |
|
4G/8G byte eMMC(iNAND), |
|
SD Card Socket (support up to 32G byte); |
Memory |
SECURITY SYSTEM: |
|
256KB flash |
|
12KB SRAM |
|
256-Bit, Battery-Backed, Flip-Flop-Based Secure Key Storage |
|
Dedicated Cryptographic Memory Space |
Power |
AC input 100 - 240V, 50/60 Hz;DC Output 9.4V 4A |
7.4V 3500mAh Li-polymer battery | |
| |

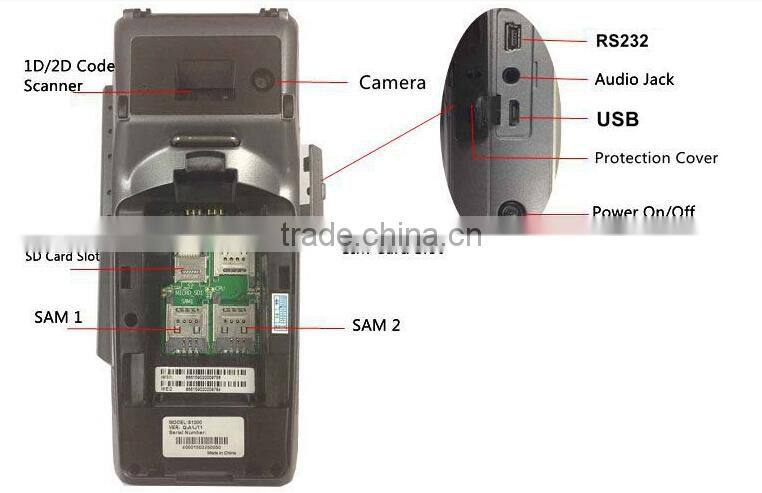

Interface |
1 USB OTG, 1 AUDIO Jack,1 DC IN |
Magnetic card |
Track 1&2&3, bi-direction |
reader |
|
Contact smart card |
ISO7816,EMV certification |
reader |
|
Contactless smart |
ISO14443 Type A/B, 13.56MHz |
card reader |
|
SIM card slot |
1 SIM or RUIM card slot,2 SAM card slot |
|
|
LCD |
4.5”TFT + TP(capacitive - 5 point touch) ,Resolution: 960x540, backlit |
Keypad |
15 physical keys + Virtual keyboard on Scree |
|
Printer |
thermal, 8dots/mm,70mm/s, roll paper 58mm x 25mm |
|
|
|
|
GPRS 850/900/1800/1900MHz |
|
|
|
2G Communication |
or |
|
|
|
|
CDMA 800 Mhz EV-DO Rev.A with RUIM-card (optional) |
|
|
|
3G Communication |
WCDMA850/1900/2100MHz (optional) |
|
|
|
EVDO CDMA2000 1X/EV-DO Rev.A (optional) |
|
||
|
|
|
||
|
Barcode |
1D. EAN |
|
|
|
2D. QR |
|
|
|
|
|
|
|
|
|
Fingerprint |
Optional |
|
|
|
Wifi |
802.11 b/g/n |
(Optional) |
|
|
Bluetooth |
BT Class4.0-EDR(Optional) |
|
|
|
GPS |
Optional |
|
|
|
Camera |
5M Pixel (Optional) |
|
|
|
Language |
JAVA ,HTML |
SDK |
|
|
OS |
Android 4.04 |
|
|
|
Security |
3DES,Master/Session and DUKPT |
|
|
|
Dimension |
180 (L) x 81(W) x 49(D) mm |
|
|
|
|
Operation Temperature:0 - 40℃ |
|
|
|
Environment |
Storage Temperature: -20 - 60℃ |
|
|
|
|
Humidity:5% - 90% |
|
|
|
|
|
|
|
Application
carton with foam bed inside
Item size:200*87*56mm
Carton Dimension:240*230*85mm
N.W.:0.465 Kg/unit
G.W.:1 Kg/box
