The NFC Bluetooth battery powered card reader ACR1255
The NFC Bluetooth battery powered card reader ACR1255 Features
Support contactless smart card:
ISO14443 Parts 1-4.
ISO18092 (NFCIP-1) Compliant.
FeliCa Card.
NFC Tag Types 1,2,3,4.
Support 2 LEDS for smart card and wireless transmission.
Support Bluetooth 4.0 protocol for data transmission(single-mode operation).
Support User-controllable Buzzer.
Switch for Bluetooth/OFF/PC-linked modes.
USB 2.0 full speed (12 Mbps).
Li-ion rechargeable battery ( for portable usage).
Mini USB port.
CCID protocol.
PC/SC compliant.
OS Platform support:
WHQL from Windows 2000, XP and up.
Win CE 5.0 and up.
Mac 10.5 and up.
Linux .
Android 3.1 and above .
Compliance to Standards and Certifications:CE,FCC,VCCI,RoHS,BQB.
Compliance to CSCR API Standardization .
The NFC Bluetooth battery powered card reader ACR1255 Technical Specification Un
Universal Serial Bus interface | |
Type | USB full speed, four lines: +5V, GND, D+ and D- |
Power source | From USB |
Speed | 12 Mbps |
Power supply | |
Supply voltage | Regulated 5V DC or Battery 3.7V DC |
Supply current | < 200mA (without smart card) Blu |
Bluetooth interface | |
Type | Bluetooth low energy 4.0 single-mode Co |
Contactless smart card interface | |
Standard | ISO 14443 A & B Parts 1-4, ISO18092 |
Protocol | ISO14443 T=CL for ISO14443-4 compliant cards and T=CL Emulation for, ISO 18092 FelCa and NFC tag |
Smart card read / write speed | 106 kbps, 212 kbps, 424 kbps and 848 kbps |
Operating Frequency for Contactless Cards Access | |
Operating Frequency | 13.56 MHz |
Antenna | |
Operating distance | up to 60mm(Depend on Card Type) |
Case | |
Dimensions | 85.00mm (L) x 54.00mm (W) x 10.00mm (H) |
Color | White |
Weight | 40g (approx.) O |
Operating Conditions | |
Temperature | 0-50.C |
Humidity | 10 - 90% Stan |
Standards/Certifications | CE,FCC,VCCI,RoHS,BQB |
OS | Windows XP,Win CE5.0,Mac 10.5, Linux, Andriod 4.3,IOS |
OEM | OEM-Logo possible, customer-specific colors, casing and card connector |

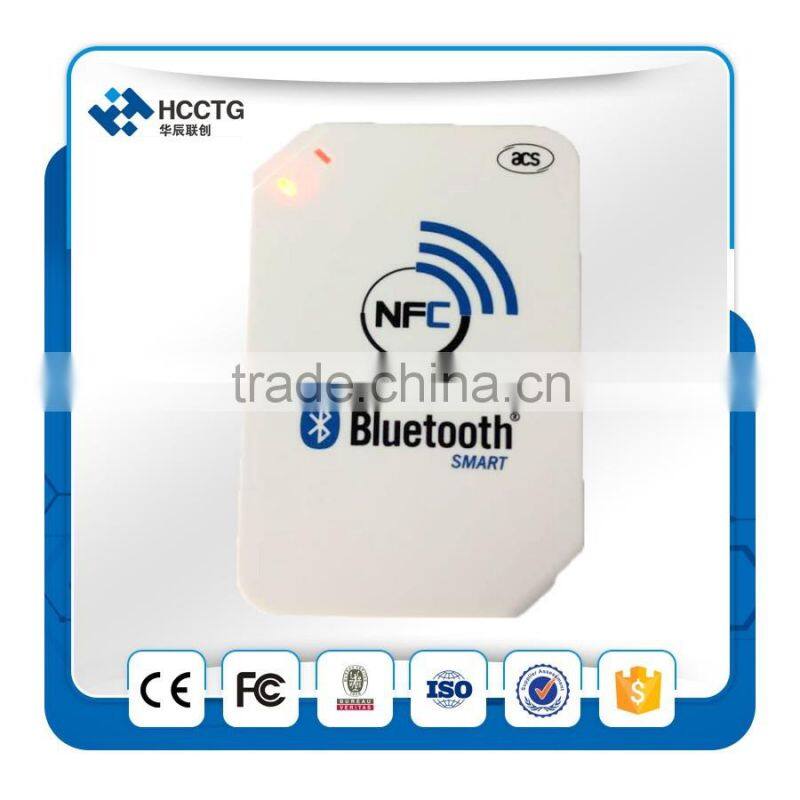

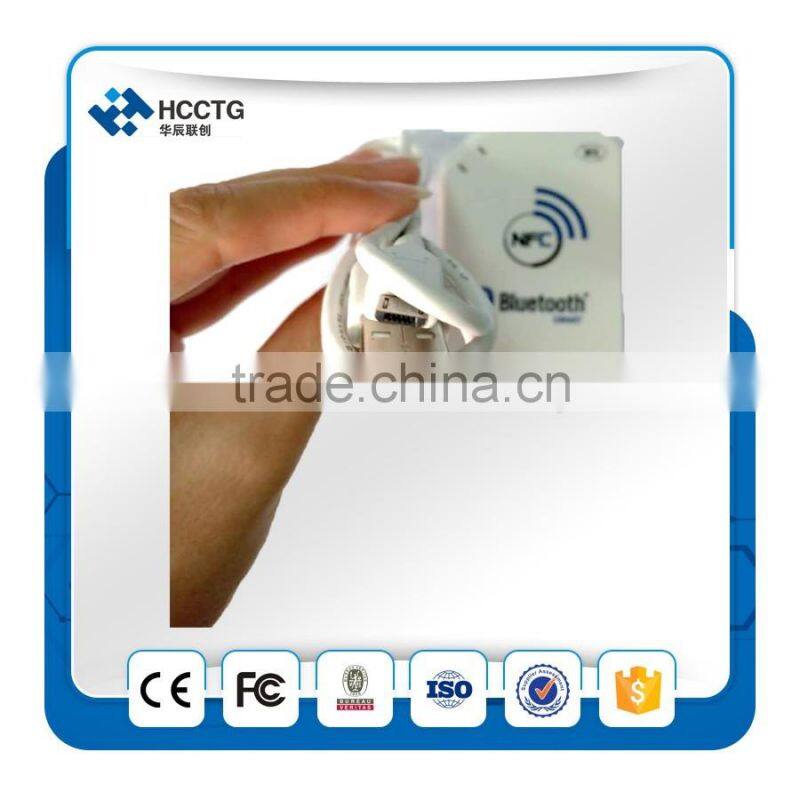

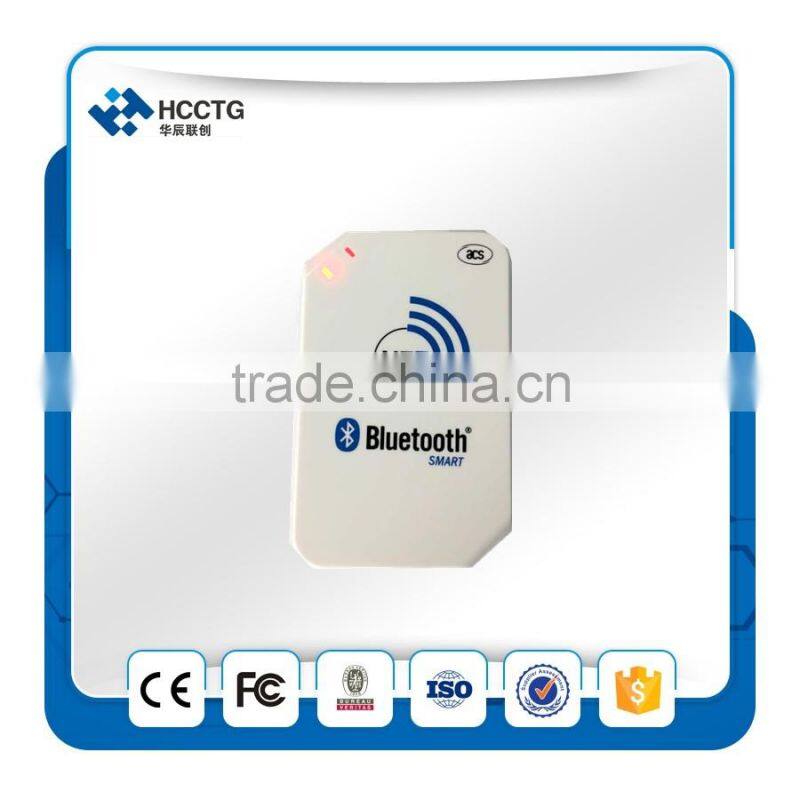

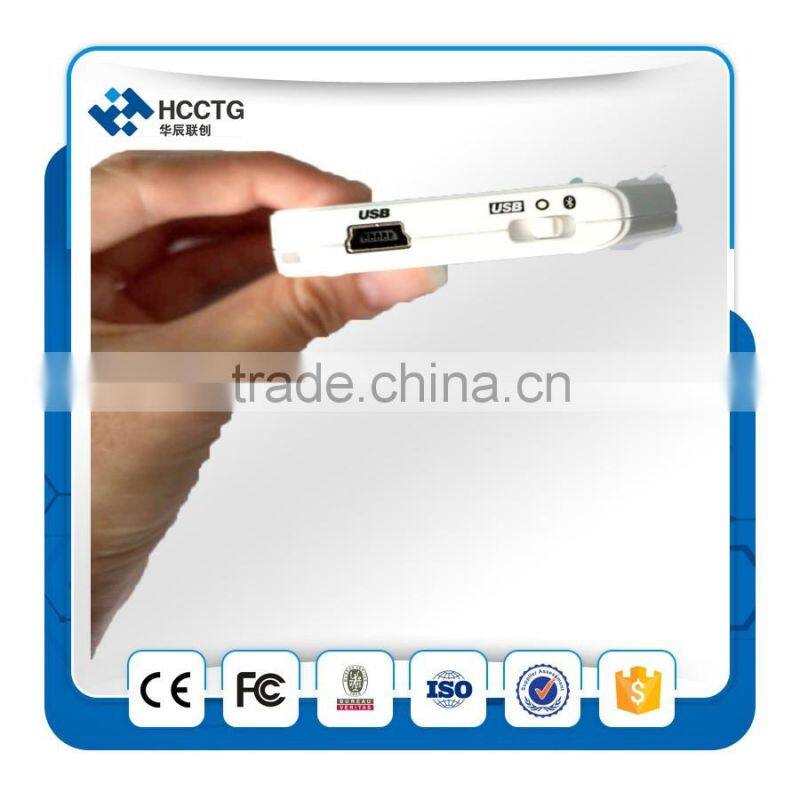

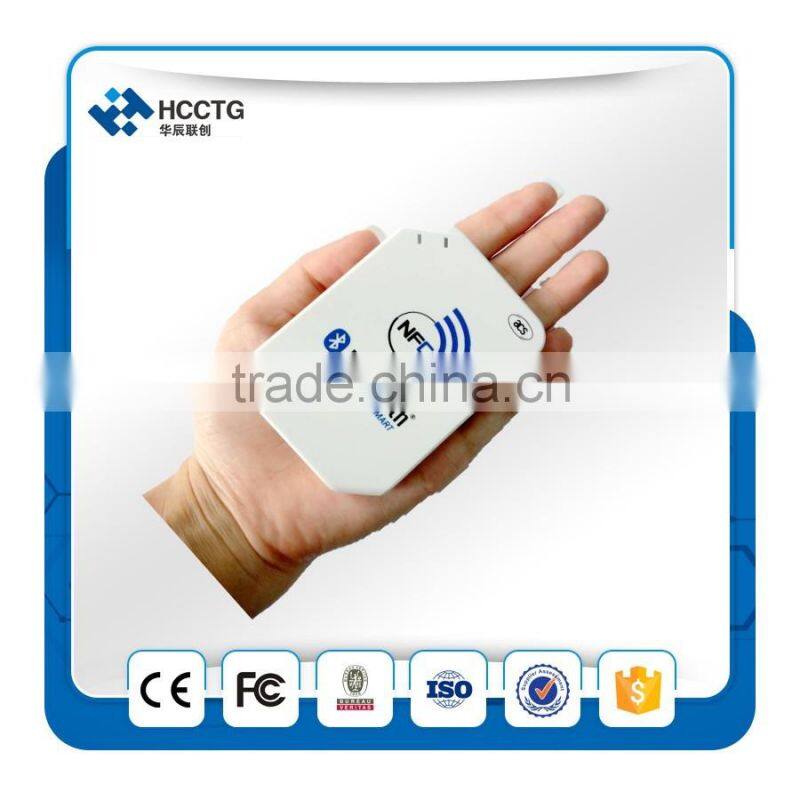

The NFC Bluetooth battery powered card reader ACR1255 Picture
