Serviceable ACS RFID Contactless Android Tablet Bluetooth NFC Smart Card Reader--ACR1255

Introduction

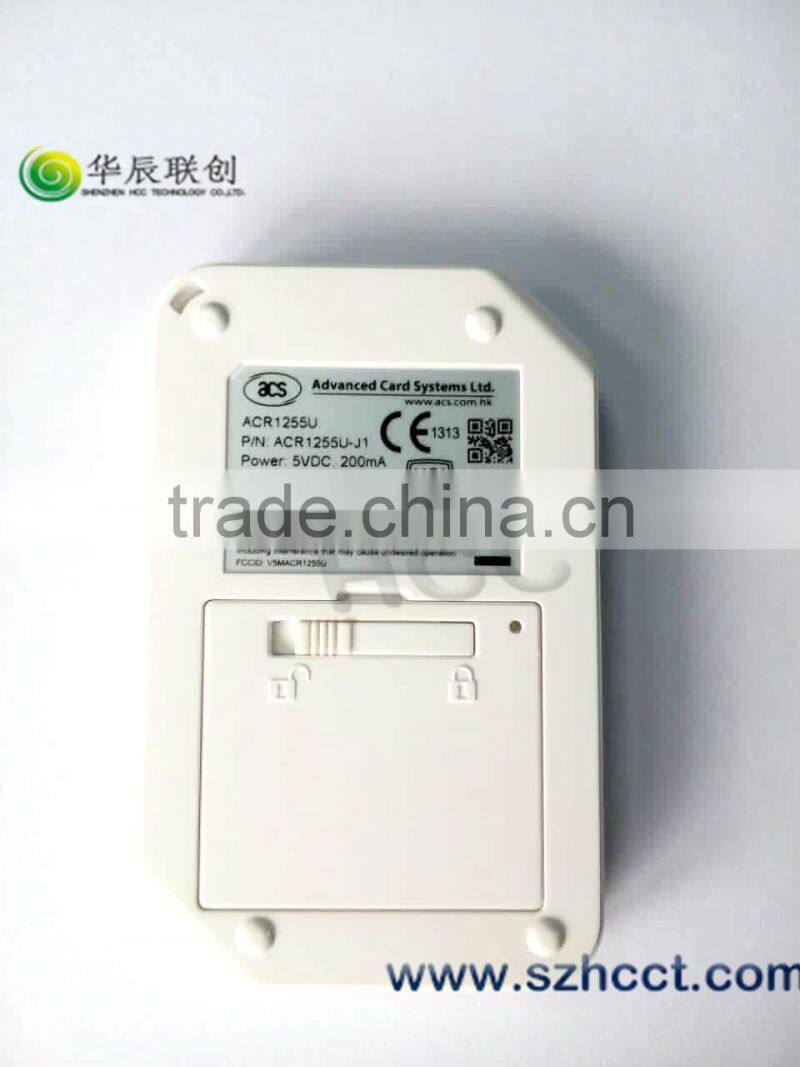

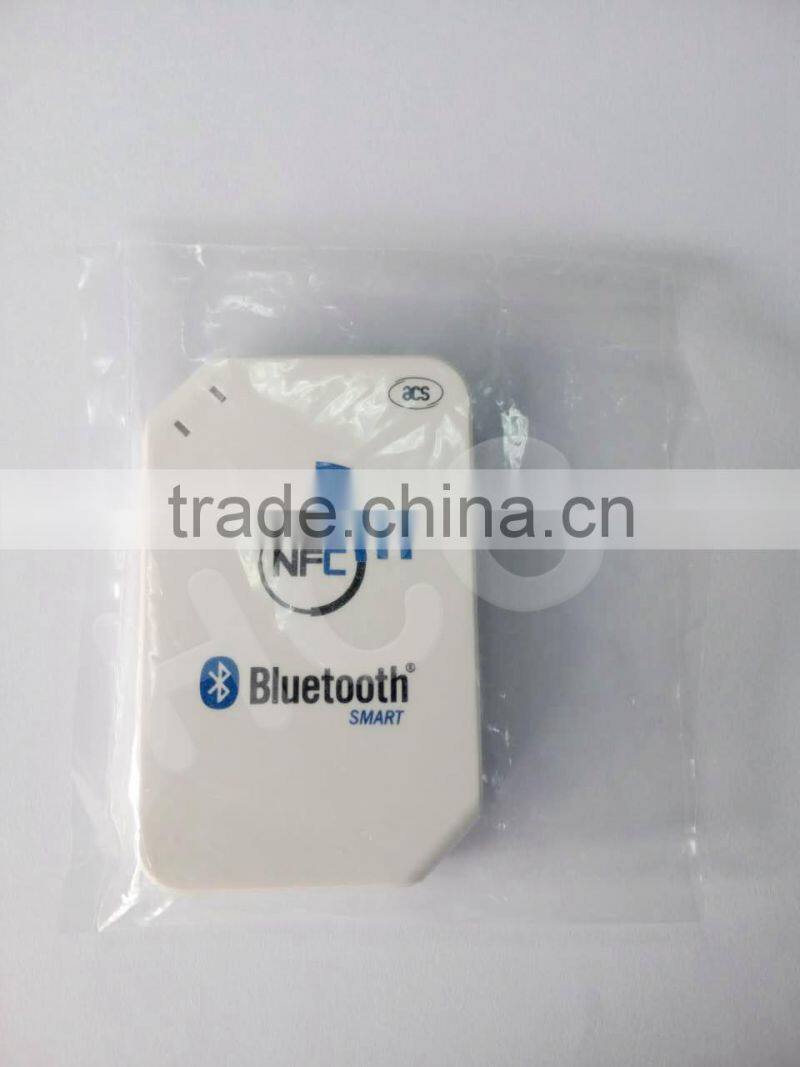

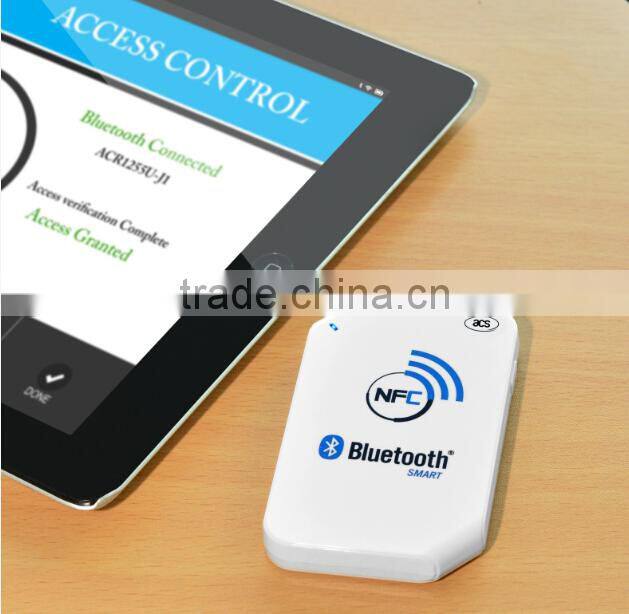

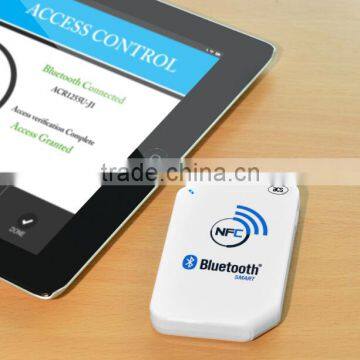

The NFC Bluetooth Reader ACR1255U-J1 is compliant to ISO-14443 Parts 1-4, ISO 18092 and supporting contactless card, FeliCa cards, NFC tags etc. The reader supports Bluetooth Standard 4.0, “single-mode” operation. It is full-speed USB 2.0 and compatible to different OS, e.g. iOS, Android and Windows platform. ACR1255U-J1 provides Li-ion battery with 320mAh forpower supply. It also has two LEDs and buzzer to show the state of operation. The reader will use the "Li-ion hanging square casing".

Features

l  [REQ-001] Support contactless smart card:

æ   [REQ-001a] ISO14443 Parts 1-4.

æ   [REQ-001b] ISO18092 (NFCIP-1) Compliant.

æ   [REQ-001d] FeliCa Card.

æ   [REQ-001e] NFC Tag Types 1,2,3,4.

l  [REQ-002] Support 2 LEDS for smart card and wireless transmission.

l  [REQ-003] Support Bluetooth 4.0 protocol for data transmission(single-mode operation).

l  [REQ-004] Support User-controllable Buzzer.

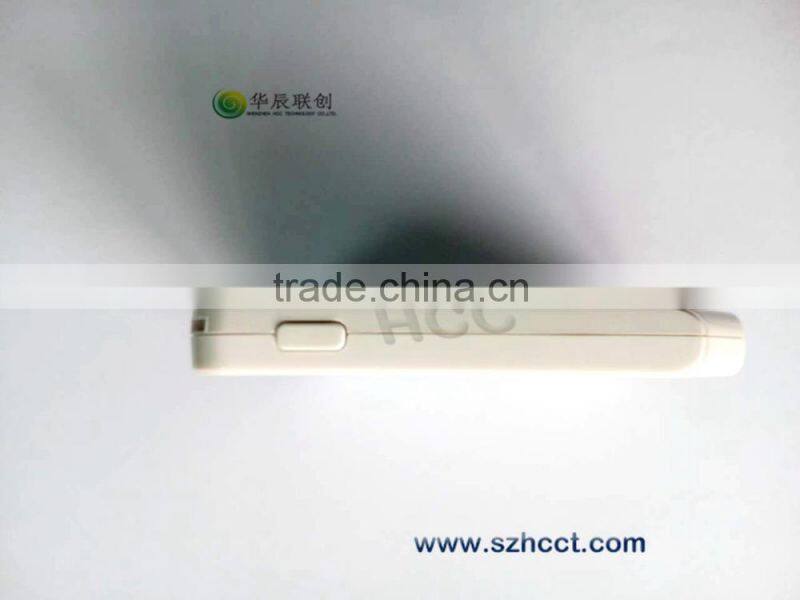

l  [REQ-005] Switch for Bluetooth/OFF/PC-linked modes.

l  [REQ-006] USB 2.0 full speed (12 Mbps).

l  [REQ-007] Li-ion rechargeable battery ( for portable usage).

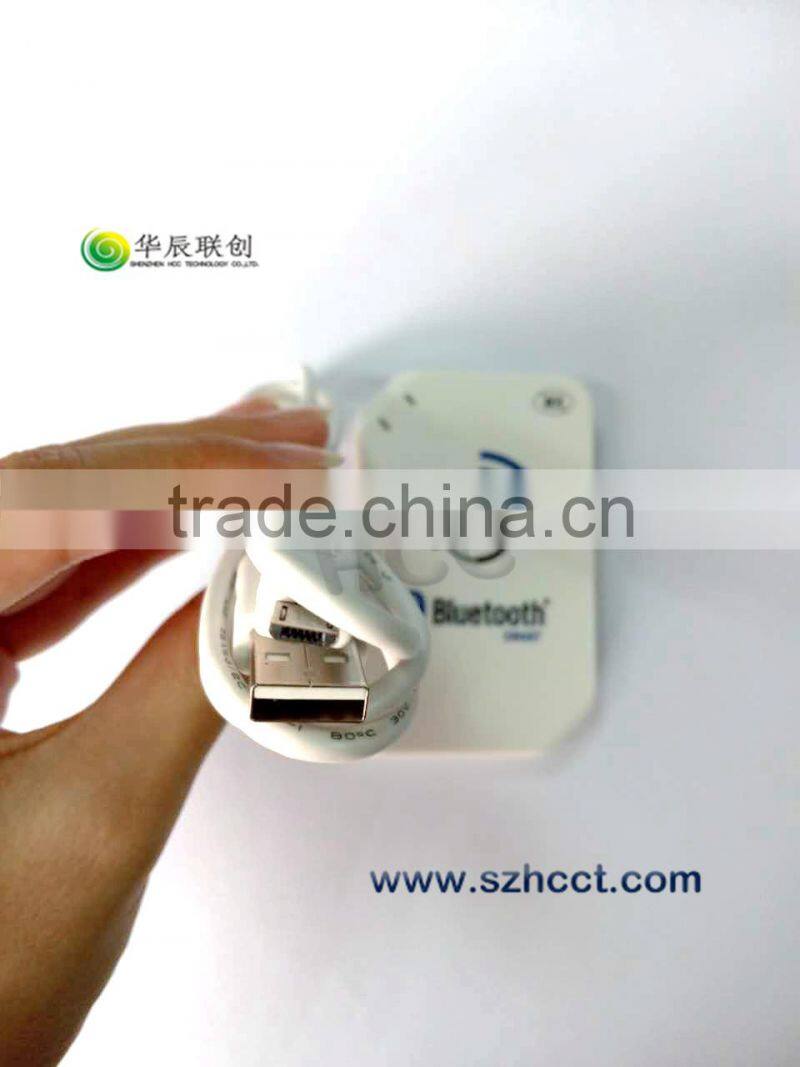

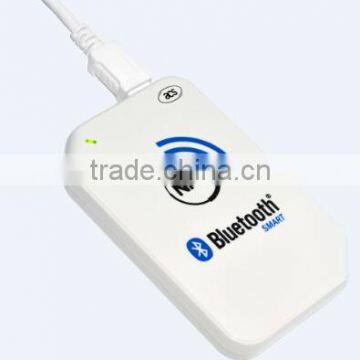

l  [REQ-008] Mini USB port.

l  [REQ-009] CCID protocol.

l  [REQ-0010] PC/SC compliant.

l  [REQ-0011] OS Platform support:

æ   [REQ-011a] WHQL from Windows 2000, XP and up.

æ   [REQ-011b] Win CE 5.0 and up.

æ   [REQ-011c] Mac 10.5 and up.

æ   [REQ-011d] Linux .

æ   [REQ-011e] Android 3.1 and above .

l  [REQ-012] Compliance to Standards and Certifications.

æ   [REQ-012a] CE.

æ   [REQ-012b] FCC.

æ   [REQ-012c] VCCI.

æ   [REQ-012d] RoHS.

æ   [REQ-012e] BQB.

l  [REQ-013] Compliance to CSCR API Standardization .

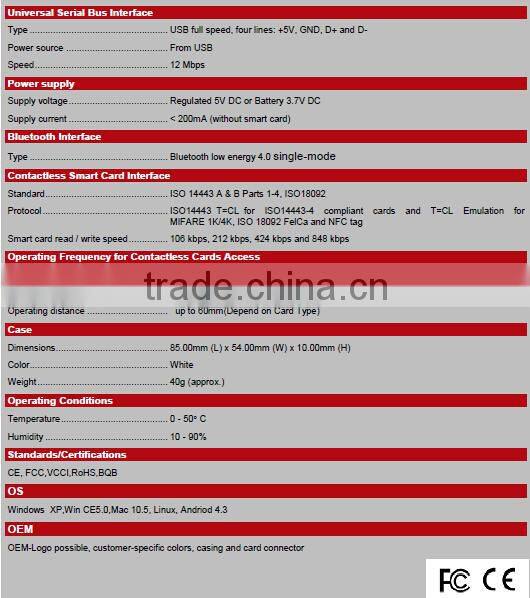

Technical Specification
