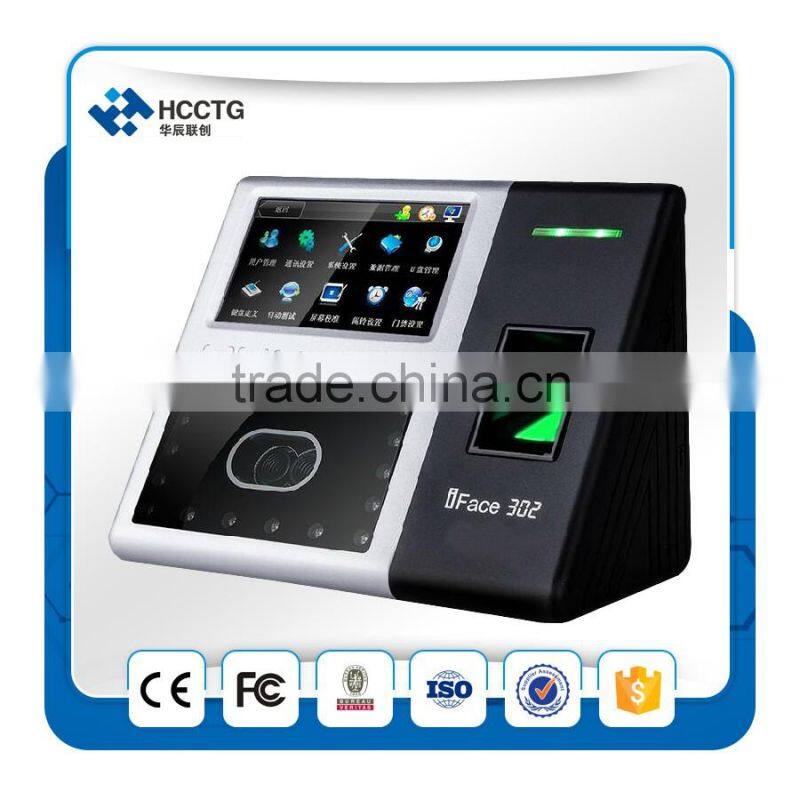

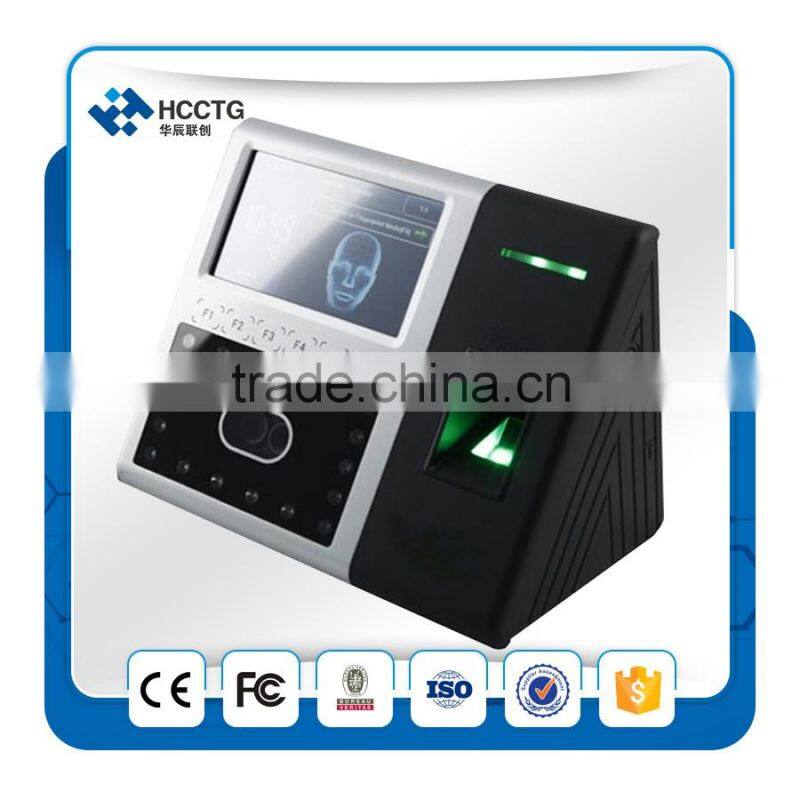

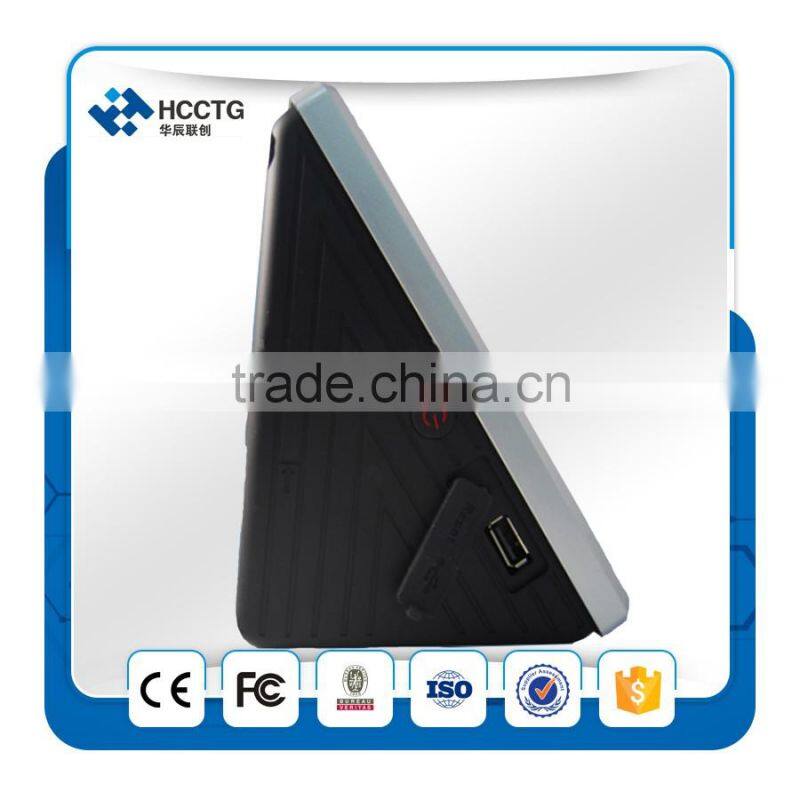

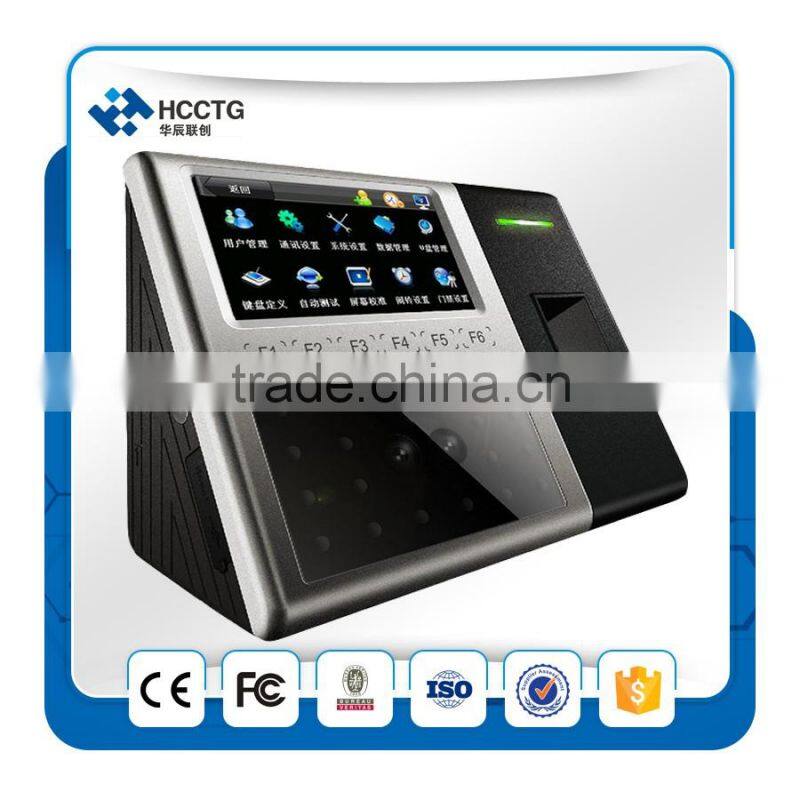

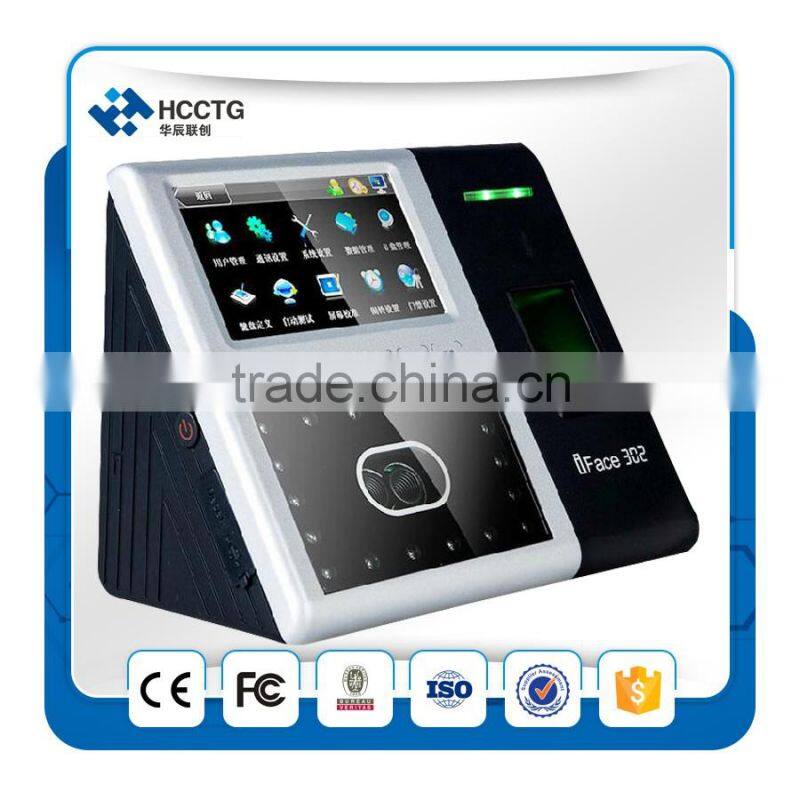

Face Recognition Software IFace302 Face Terminal Time Attendance and Access Control

US$ 180 - 210 MOQ: 1 Piece

Key Specifications

Place of Origin:

Guangdong, China

Brand Name:

HCC

Model Number:

iFace302

Shenzhen HCC Technology Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

shenzhen/guangzhou/hongkong

Delivery Detail:

Delivery time depends on order quantity.

Place of Origin Guangdong, China

Brand Name HCC

Model Number iFace302

face recognition software iFace302 Face Terminal Time Attendance and Access Control

face recognition software iFace302 Face Terminal Time Attendance and Access Control

Features:

lIdentification methods include Face, Fingerprint/RFID and/or Password

lElegant ergonomic design

l4.3’’ TFT touch screen is user-friendly and very intuitive

l6 user-defined function keys

lContact relays for door access control (wires to door strike or 3rd party panel)

lWeb-server management software via IE browser

lOptional extendable scheduled-bell

lInfra-red optical system enables user-identification in poorly lit environments

lOptional built-in battery backup provides approx 4 hours continuous operation.

lOptional built-in wireless Wi-Fi or GPRS for wireless communication

lBuilt-in contacts for 3rd party electric lock, door sensor, alarm, exit button, or bell.

lWiegand Output for connections to 3rd party access control panels.

face recognition software iFace302 Face Terminal Time Attendance and Access Control Specification

CPU	Multi-Bio CPU 630 MHz
Memory	256M Flash, 64M SDRAM
Hardware Platform	M600 Multi-Medium Development Platform
Fingerprint Sensor	Optical Fingerprint Sensor without film
Camera	High Resolution Infrared Camera
Display	4.3’’ TFT touch screen
Face capacity	400 (1:N)
Fingerprint capacity	2000
ID Card capacity	10,000
Logs capacity	100,000
Algorithm Version	Face 7.0 & Finger 10.0
2000mAh backup	Optional
Communication	TCP/IP,RS232/485
USB-HOST	Two USB-Host
Wireless Wi-Fi	Optional
Time attendance Standard functions	ID Card(302 Optional), Automatic Status Switch, Self-Service Query, Work Code, T9 input, 9 digit user ID, DLST
Access control interfaces for	3rd party electric lock, door sensor, exit button
Wiegand Signal	Output
Optional functions	serial printer, Mifare card, Extendable Scheduled-bell, Short Massage, Web-server, GPRS
Power supply	12V3A
Verification Speed	≤2 sec
Operating temp	0℃- 45 ℃
Operating Humidity	20%-80%
Dimension	193.6146.8111 mm (LengthWidthThickness)
Gross Weight	1.9 kg
