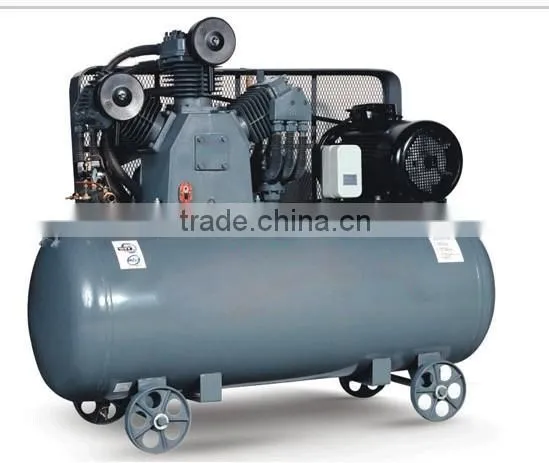

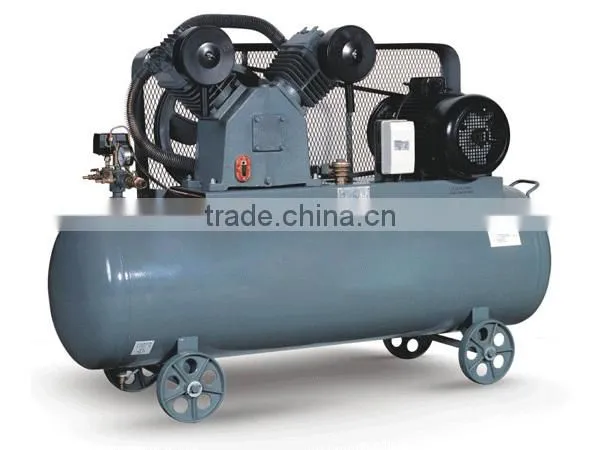

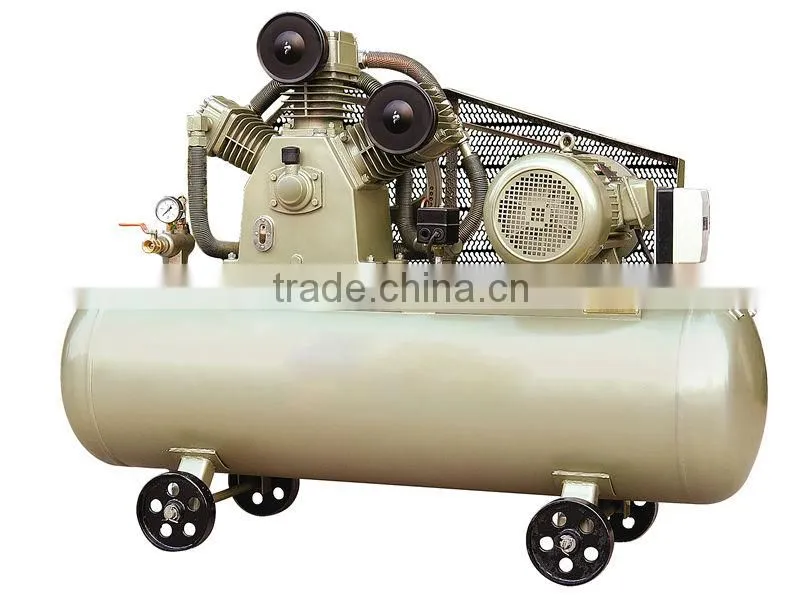

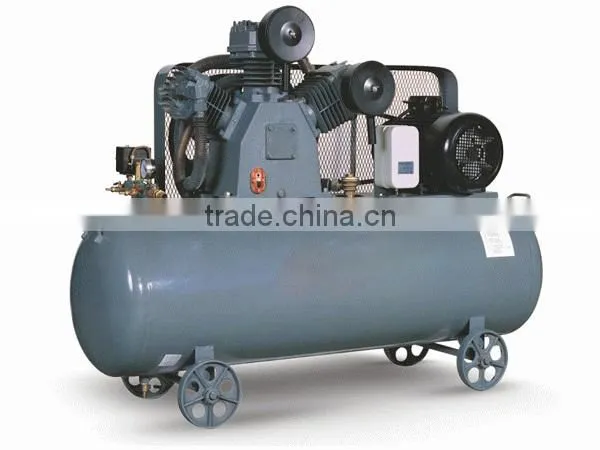

portable 7bar 8bar piston reciprocating Air Compressor
1.Strongly power-driven and big air end with design,the air compressor owns bigger and heavier main parts than other products in the same trade with better selection and sufficient using of materials especially with main fittings.In addition,it is more suitable to be applied in the continuous operation under load for long working time with higher reliability and longer lifespan.
2.Special designed is made in heat in heat emission and air flow,which leads to low air-output temperature and low possibility of carbon deposit.

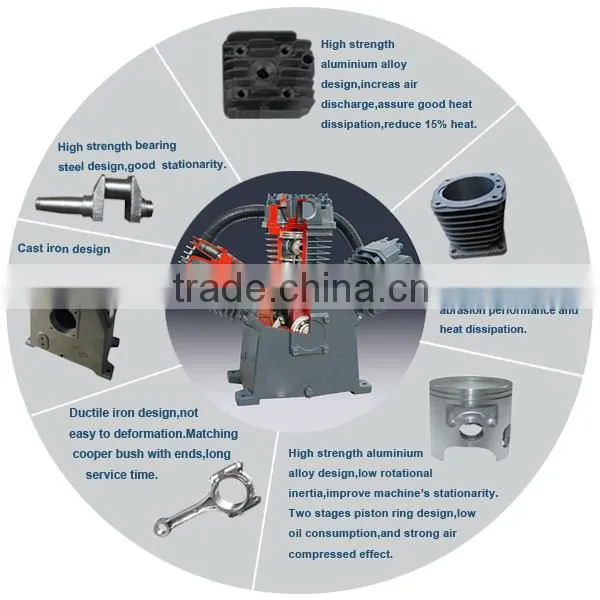

3.Composite ring valve is adopted in design,with the valve plate made of stainless steel from Sweden and spring of valve block made of special spring steel wire from Japan with no bending motion in operation,the valve processes excellent property and ideal lifespan index.

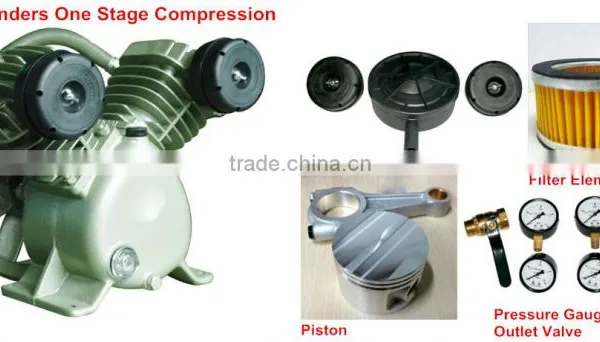

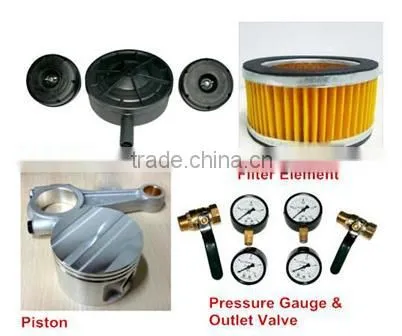

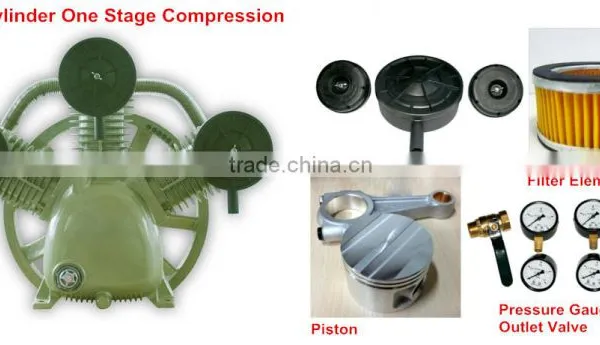

4.The piston ring imported from Japan is introduced in designing pistol ring,which is durable and sealable.
5.Crankshaft undergoes high-frequency hardening,which enables it especially abrasion-proof.
6.Some relevant working units are received precision balance,which makes it more stable with lower noise.
7.Speical oil separation construction is built inside the frontend jacket,so no oil vents from the breather valve,which ensures low oil consumption and cleanness of machine body.
8.The core of air filter is made of imported filter paper,which acts well in filtering and absorbing noise.
9.With rational design in the flaring angle of copper socket pipe and protecting jacket,it avoids cracking and air leaking.
10.Pressure switch,contactor unit and thermorelay are imported with famous brand is "Schneider" to ensure the reliablity in control and protection.
| Model | Motor Power |
Air Delivery | Exhaust Pressure | Rotation Speed | Clinder | Capacity | Weight |
Dimension (mm) |
||
| Kw | HP | m3/min | Mpa | r/min |
Diameter (mm) |
Quantity (pcs) |
m3 | Kg | L*W*H | |
| TA-65 | 1.5 | 2 | 0.17 | 0.7 | 635 | 65 | 3 | 0.07 | 107 | 1050*390*770 |
| VA-80 | 3 | 4 | 0.36 | 0.7 | 950 | 80 | 2 | 0.08 | 156 | 1234*470*880 |
| TA-80 | 4 | 5.5 | 0.53 | 0.7 | 875 | 80 | 3 | 0.18 | 208 | 1370*540*1000 |
| VA-100 | 5.5 | 7.5 | 0.67 | 0.7 | 950 | 100 | 2 | 0.17 | 265 | 1482*590*1100 |
| TA-100 | 7.5 | 10 | 1 | 0.7 | 900 | 100 | 3 | 0.23 | 360 | 1560*620*1240 |
| TA-120 | 11 | 15 | 1.5 | 0.7 | 800 | 120 | 3 | 0.3 | 491 | 1640*670*1420 |
| TA-120H | 15 | 20 | 2 | 0.7 | 800 | 120 | 3 | 0.32 | 480 | 1710*760*1280 |
| HTA-65 | 1.5 | 2 | 0.18 | 1.25 | 800 | 65/51 | 2/1 | 0.07 | 122 | 1050*390*770 |
| HTA-80 | 4 | 5.5 | 0.45 | 1.25 | 950 | 80/65 | 2/1 | 0.13 | 223 | 1410*410*960 |
| HTA-100 | 5.5 | 7.5 | 0.65 | 1.25 | 750 | 100/80 | 2/1 | 0.18 | 344 | 1500*590*1130 |
| HTA-120 | 11 | 15 | 1.22 | 1.25 | 860 | 120/100 | 2/1 | 0.25 | 494 | 1685*660*1250 |
Remark:1bar=0.1Mpa=14.5psi,1m3/min=35.3cfm
Dream(Shanghai) Compressor Co., Ltd., founded in 2005, is a Sino-German high-tech enterprise in research, development, production and sales. Our company is located in Songjiang district, Shanghai, covering an area of ten thousand square meters with more than 300 employees. We have set up offices in the major provinces and cities. We are not only provide the high-quality air compressors from minimum 7.5Kw to maximum 355Kw, but also provides matching processing equipment of compressed air.We will wholeheartedly serve you.
