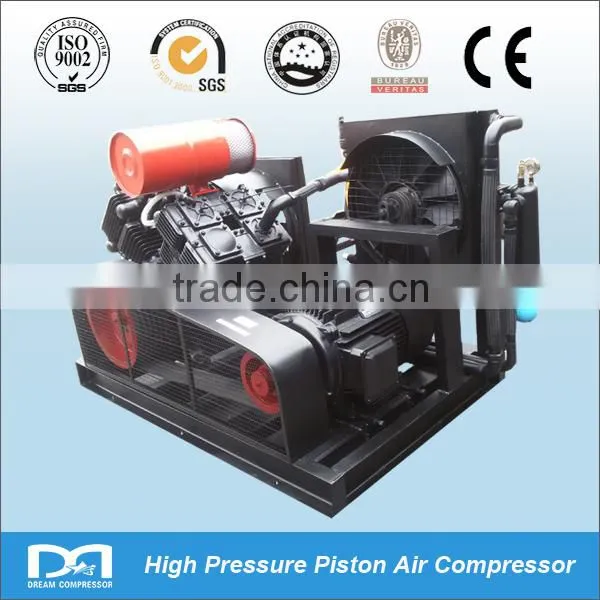

30Mpa Air Compressor
Product Features
1.Our products all adopt original import pressure controller,The Air-cooling Series are equipped with patent and high efficiency heat exchanger. All levels of heat exchanger efficiency can reach 98%. (After cooling, the compressed air at normal temperature).
2.To prevent blocked heat exchanger from affecting heat dissipating, we increase the cooling area of heat exchanger' to be 2.5 times, which is especially suitable for high temperature fields. For three-stage compressor, we all use differential compression in two or three stage compression. During the compression process that the same piston finish two and three stage air inlet and outlet, the cancelled piston force on the end face of two and three stage piston can reach 30%, which is more power saving. Over the years, Water-cooling Series High Pressure Air Compressor produced by our company, owing to its over long service life (5 years without faults in normal situation), has been popular in every corner of our country and received good comments from many customers! Our Air-cooling High Pressure Air Compressors, because of their patented heat dissipating technology and with higher standard than that of water-cooling series, have been well approved by our customers and successfully promoted.
Technical Specification
| Model | Cooling Method | Type | Power (Kw) | Air Delivery (m3/min)/ Working Pressure (Kg) | Dimesion (L*W*H,mm) | Weight (Kg) | Remark |
| WF0.8/30 | Air Cooling | W-type,beltdriven,three-cylinder,two stage compression,air cooling | 9 | 0.8/30 | 1080*620*800 | 225 | Without air tank |
| WF1.25/30 | 15 | 1.25/30 | 1300*850*1050 | 360 | |||
| WF1.25/30B | 15 | 1.25/30 | 1800*650*1450 | 480 | Combined type with 300L air tank | ||
| WF3/7 | VF-type,direct driven,two stage compression,air cooling | 22 | 3/17 | 1750*1050*1250 | 1050 | For three-stage compressor,we all use differental compression in two or three stage compression.During the compression process that the same piston finish two and three stage air inlet and outlet,the cancelled piston force on the end face of two and three stage piston can reach 30%,which is more power saving.
Plate type,without air tank | |
| WF6/17 | 45 | 6/17 | 1850*1050*1250 | 1250 | |||
| WF2.2/30 | W-type,belt driven,four-clinder,differential type,three stage compression,air cooling | 22 | 2.2/30 | 1550*970*1100 | 1050 | ||
| WF2.2/40 | V-type,belt driven,three-cylinder,differential type,three stage compression,air cooling | 22 | 2.2/40 | 1780*1050*1340 | 1100 | ||
| WF2.4/30 | 22 | 2.4/30 | 1780*1050*1340 | 1100 | |||
| WF3.3/30 | 30 | 3.3/30 | 1780*1050*1340 | 1180 | |||
| WF3/40 | 30 | 3/40 | 1780*1050*1340 | 1190 | |||
| WF0.8/100 | W-type,belt driven,three-clinder,three stage compression,single acting,air cooling | 15 | 0.8/100 | 1300*850*1350 | 480 | ||
| WF0.9/70 | 15 | 0.9/70 | 1300*850*1350 | 480 | |||
| WF1/40 | 15 | 1/40 | 1300*850*1350 | 480 | |||
| WF1/150 | V-type,belt driven,four-cylinder,four stagecpmpression,single acting,air cooling | 22 | 1/150 | 1650*1450*1140 | 800 | ||
| WF1/200 | 22 | 1/200 | 1650*1450*1140 | 850 | |||
| WF1/300 | 30 | 1/300 | 1650*1450*1140 | 920 | |||
| WF1/400 | 30 | 1/400 | 1650*1450*1140 | 960 | |||
| WF2.2/80 | 30 | 2.2/80 | 1820*1050*1340 | 1250 | |||
| WF2.2/150 | 30 | 2.2/150 | 1820*1050*1340 | 1300 | |||
| WF2.2/300 | 37 | 2.2/300 | 1820*1050*1340 | 1300 | |||
| WF3/80 | 45 | 3/80 | 1820*1050*1340 | 1450 | |||
| WF3/200 | 45 | 3/200 | 1820*1050*1340 | 1450 | |||
| WF2/450 | V-type,belt driven,five-cylinder,fibe stage compression,single acting,air cooling | 45 | 2/450 | 1820*1050*1340 | 1500 | ||
| WF3/300 | 45 | 3/300 | 1820*1050*1340 | 1500 | |||
| WF3/450 | 55 | 3/450 | 1820*1050*1340 | 1650 |
Remark:1bar=0.1Mpa=14.5psi,1m3/min=35.3cfm
Dream(Shanghai) Compressor Co., Ltd., founded in 2005, is a Sino-German high-tech enterprise in research, development, production and sales. Our company is located in Songjiang district, Shanghai, covering an area of ten thousand square meters with more than 300 employees. We have set up offices in the major provinces and cities. We are not only provide the high-quality air compressors from minimum 7.5Kw to maximum 355Kw, but also provides matching processing equipment of compressed air.We will wholeheartedly serve you.
Q1: What is your air delivery capacity (Unit:CFM or m3/min)?
Q2: What is your working pressure (Unit: psi or bar)?
Q3: What is your voltage (V/Hz)?
Tell us the info which will offer scheme for you!
Q2: Are you factory or trade company?
We are factory. Our factory is located in Hulu road songjiang District,Shanhai City, China (Mainland).
Q3: How long will you take to arrange production?
5 days for 380V 50HZ . Other electricity or other color we will delivery within 25days
