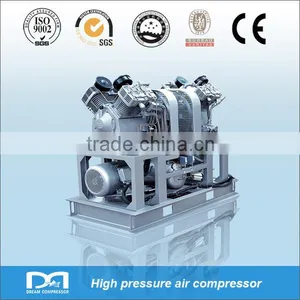

15kw potable high pressure mini air compressor for bulk cement
Our products all adopt original import pressure controller. The Air-cooling Series are equipped with patent and high
efficiency heat exchanger. All levels of heat exchanger efficiency can reach 98%. (After cooling, the compressed air
at normal temperature)
To prevent blocked heat exchanger from affecting heat dissipating, we increase the cooling area of heat exchanger
to be 2.5 times, which is especially suitable for high temperature fields. For three-stage compressor, we all use
differential compression in two or three stage compression. During the compression process that the same piston
finish two and three stage air inlet and outlet, the cancelled piston force on the end face of two and three stage piston
can reach 30%, which is more power saving. Over the years, Water-cooling Series High Pressure Air Compressor
produced by our company, owing to its over long service life (5 years without faults in normal situation), has been
popular in every corner of our country and received good comments from many customers! Our Air-cooling High
Pressure Air Compressors, because of their patented heat dissipating technology and with higher standard than that
of water-cooling series, have been well approved by our customers and successfully promoted.
Technical Data Sheet:
Model |
| WF1.25/30B | |
Free air delivery | m3/min | 1.25 | |
Discharge pressure | Bar | 30 | |
Cooling mode |
| Air cooling | |
Driving mode |
| Belt driven | |
Power supply | V/Ph/Hz | 380V 3Ph 50Hz as standard, also can be changed as customers’ requirement. | |
Motor power | KW/HP | 15/20 | |
Type |
| Type W 3 cylinder 2 stage | |
No. of cylinder |
| 125*2/65 | |
External dimensions | L | mm | 1650 |
W | mm | 650 | |
H | mm | 1450 | |
Weight | Kg | 450 | |
Q1: How about your air delivery capacity (Unit:CFM or M3/Min)?
Q2: What is your working pressure (Unit:PSI or Bar)?
Q3: What is your voltage (V/Hz)?
Q4: Do you need any after processing (Such as Air Tank, Filter and Air Dryer)?
Tell us the answer,we will offer scheme for you!
Q2: About general unit conversion:
1bar=0.1Mpa=14.5psi 1m³/min=35.3cfm 1KW=1.34HP
Q3: Are you factory or trade company?
We are factory. Our factory is located in Hulu road songjiang District,Shanhai City, China (Mainland).
Q4: Which trade term can you accept?
Available trade terms: FOB, CIF, CFR, EXW, CPT, etc.
Q5: How long will you take to arrange production?
5 days for 380V 50HZ . Other electricity or other color we will delivery within 25days
hig
David Xu
International Sales
Dream (Shanghai) Compressor Co.,Ltd
Tel:86-21-67625676
Cell:86-13965026813
skype:davidyouxiang
E-mail
/
Add: No.58 Rongshu Rd.,Songjiang District,Shanghai City,China
h pressure paintball air compressor
