Help CenterElectric Mobile Compressor
Related Products
Specifications
1.Long life and Highly Reliable,2.Ease of operation maintenance,
3.Good dynamic balance,
4.Environment adaptiveness.

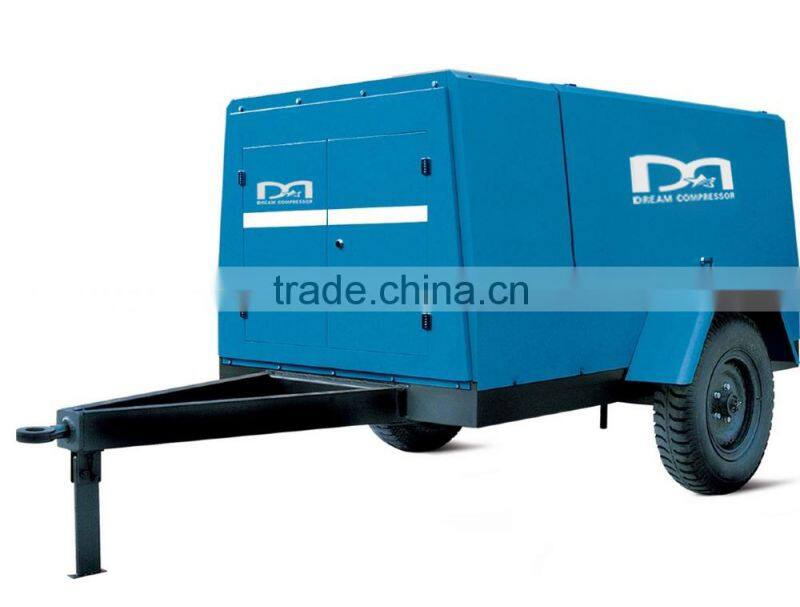

Electric Mobile Compressor
High efficient air end

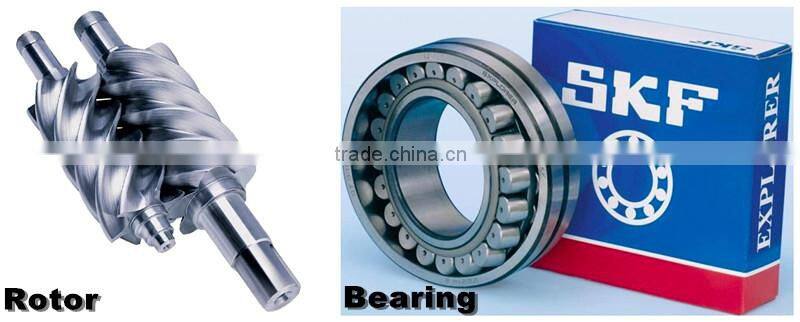

1.Screw air end is the core of screw air compressor,its performance directly influence the economy and use costs of the whole machine.
2.Dream compressor adopts the air end original from Europe. Advanced patent SAP shape of screw gear, the most superior screw line speed and compression efficiency, decrease the shake of the whole machine to the fullest extent, and prolong the life of moving parts effectively.
3.The compressor is matched with high-precision SKF bearing. The precise and even bite clearance ensures leak tightness, making sure the compressor become less power dissipation and lower energy consumption under the same working conditions, and achieve goals as following:a.Large air capacity,b.Higher efficiency,c.More stability and reliable,d.Longer service life.
4.High quality air end and bearing contribute to high stability of compressor under changeable conditions.Make the compressor adapts to the changeable of loading and prolong the service life of rotors:a.Low running speed decreases the abrasion of bearing,b.Low running temperature letdown the load of bearing.c.High precision bearing prolongs the service life.

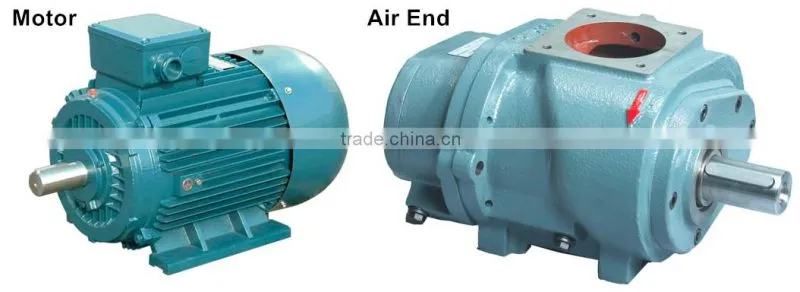

Air end and electric motor being permanently centered
DM series compressor combines the electric motor,gear case and air end.Such design makes the air end and electric motor be permanently centered.
High efficiency and full closed electric motor(IP54).
| Model |
Capacity (m3/min) |
Working Pressure (Mpa) |
Motor Power (Kw) |
Connector |
Weight (Kg) |
Dimmension (mm) |
| DMY-6.5/7G | 6.5 | 0.7 | 37 |
2-G3/4, 1-G11/2 |
1300 | 3090*1520*1500 |
| DMY-6.5/7 | 6.5 | 0.7 | 2850*1520*1500 | |||
| DMY-5.6/10 | 5.6 | 1.0 | ||||
| DMY-4.8/13 | 4.8 | 1.3 | ||||
| DMY-7.4/7G | 7.4 | 0.7 |
45 |
2-G3/4, 1-G11/2 |
1400 | 3090*1520*1500 |
| DMY-7.4/7 | 7.4 | 0.7 | 2850*1520*1500 | |||
| DMY-6.5/10 | 6.5 | 1.0 | ||||
| DMY-5.6/13 | 5.6 | 1.3 | ||||
| DMY-10.5/7G | 10.5 | 0.7 | 55 | 2-G3/4, 1-G11/2 |
1700 | 3320*1660*1800 |
| DMY-8.7/10 | 8.7 | 1.0 | ||||
| DMY-7.5/10 | 7.5 | 1.0 | ||||
| DMY-13/7G | 13 | 0.7 | 75 |
1-G2, 1-G1/2 |
2320 | 3850*2040*1980 |
| DMY-12/10G | 12 | 1.0 | ||||
| DMY-10/10G | 10 | 1.0 | ||||
| DMY-13/7G | 13 | 0.7 | 75 |
1-G1/2. 1-G2 |
2400 | 3320*1660*2000 |
| DMY-12/10G | 12 | 1.0 | ||||
| DMY-10/10G | 10 | 1.0 | ||||
| DMY-10/13 | 10 | 1.3 | 75 | 1-G1/2. 1-G2 |
2320 | 3600*1840*2010 |
| DMY-16.5/7G | 16.5 | 0.7 | 90 |
2-G1/2, 1-G2 |
2500 | 3320*1660*2000 |
| DMY-14/10G | 14 | 1.0 | ||||
| DMY-12/13G | 12 | 1.3 | ||||
| DMY-20/7G | 20 | 0.7 | 110 |
1-G11/2, 1-G2, 1-G3/4 |
4000 | 3550*1740*2100 |
| DMY-16/10G | 16 | 1.0 | ||||
| DMY-13/13G | 13 | 1.3 | ||||
| DMY-22/7G | 22 | 0.7 | 132 |
1-G11/2, 1-G2, 1-G3/4 |
4100 | 3550*1740*2100 |
| DMY-20/10G | 20 | 1.0 | ||||
| DMY-16/13G | 16 | 1.3 | ||||
| DMY-27/8G | 27 | 0.8 | 160 |
1-G1/2, 1-G2 |
4400 | 3870*1820*2200 |
| DMY-23/10G | 23 | 1.0 | ||||
| DMY-20/13G | 20 | 1.3 | ||||
| DMY-18/17G | 18 | 1.7 | 185 |
1-G1/2, 1-G2 |
4600 | 3950*1820*2200 |
| DMY-35/8G | 35 | 0.8 | 200 |
1-G11/2, 1-G2, 1-G3/4 |
4600 | 3870*1520*2250 |
| DMY-30/10G | 30 | 1.0 | ||||
| DMY-26/20G | 26 | 2.0 | 250 |
1-G2, 1-G3/4 |
7200 | 4200*1950*2350 |
Remark:1bar=0.1Mpa=14.5psi,1m3/min=35.3cfm

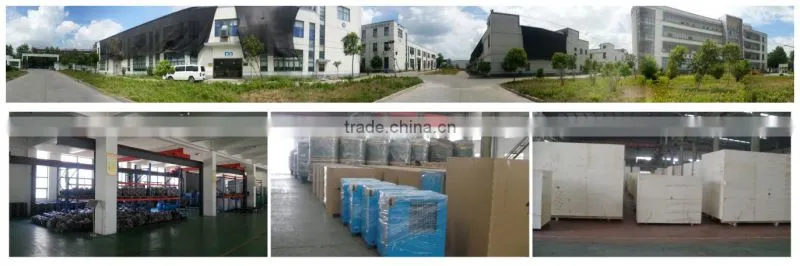

Dream(Shanghai) Compressor Co., Ltd., founded in 2005, is a Sino-German high-tech enterprise in research, development, production and sales. Our company is located in Songjiang district, Shanghai, covering an area of ten thousand square meters with more than 300 employees. We have set up offices in the major provinces and cities. We are not only provide the high-quality air compressors from minimum 7.5Kw to maximum 355Kw, but also provides matching processing equipment of compressed air.We will wholeheartedly serve you.
