Api A105 High Quality Forged Steel Gate Valve
- QINGDAO/TIANJIN/SHANGHAI
- T/T
You May Like
Product Details
| Standard or Nonstandard | Standard | Structure | Gate | |
| Pressure | Other, Low Pressure, 150class-1500class | Power | Manual | |
| Material | Other, Forged, Forged steel | Temperature of Media | Normal Temperature | |
| Media | Other, Water, Water, Oil, Gas and so on | Port Size | 1/2"-2" | |
| Place of Origin | Shandong, China |
Product Description
Api A105 High quality Forged Steel Gate Valve :
Product information:
Features and applications:
Design&Manufacture:API 602&BS5352&ANSI B16.34
Socket welding dimension:ANSI B16.11
Thread dimension:ANSI B1.20.1,DIN 2999,BSP,BSPT
Test:API 598
Regular port or full port

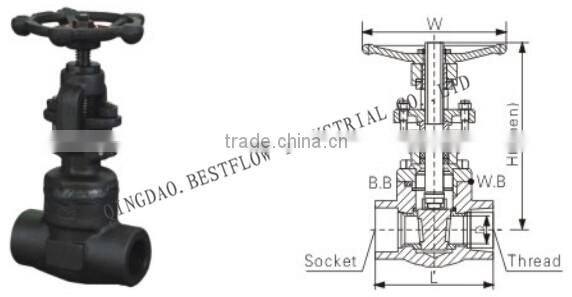

Construction:B.B&W.B;O.S&Y
Gasket:Stainless steel+graphite
Socket welding&Threaded ends
Main part name and material:
Body:ASTMA105,LF2,F5,F11,F22,F304,F304L,F316,F316L
Disc face:CR13,STL 6#,SS304,SS304L,SS316,SS316L
Shaft and pin:ASTMA 182-F6a,F304/F316
Pressure rating:
ANSI Class 150/300/600/800/900/1500

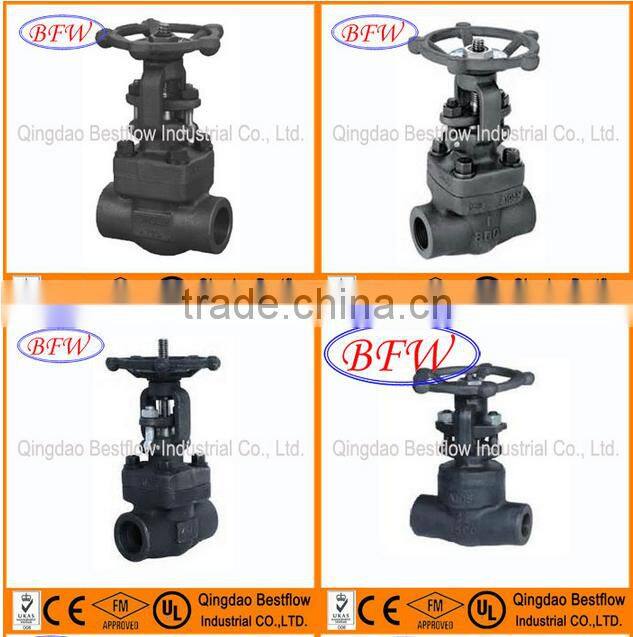

Product photos:
Company Information:
BESTFLOW INDUSTRIAL CO., LTD. is one of professional manufacturers and exporters of valves in China. The products includes: gate valve, globe valve, check valve, butterfly valve, ball valve etc., they are widely used the valve systems of nuclear power plants, power station, water, natural gas, petrochemical, oilfields, fire-fighting, ship buildings, engineering fields and construction industry.
Depend on advanced production technology and equipment, strict quality management and control, good service and competitive prices, win a good reputation in the domestic and foreign customers, and exported the products to Europe, America, Middle East and southeast Asian, over 50 countries and areas.
We are certified to the international ISO-9001 quality system standard and all products are carefully tested to meet the strict quality requirements and industry standards for each order. Parts of our products have been tested, listed, approved by some predominant labs and bodies, such as UL (USA), FM (USA), NSF(USA), CUL(Canada), CSA(Canada), KS(Korea), DVGW(Germany), TUV(Germany), TSE(Turkey) and PSB(Singapore), JIS(Japan) and BSI(England).
Our company can produce all kinds of valves, If you have any inquiry, please contact us, we will offer you our best price.
If you have any enquiry of valves, please contact us directly, we will quote our best price to you immediately.
