Home > Products > Steel Valve > Stainless Steel 3pc Ball Valve
Stainless Steel 3pc Ball Valve
- QINGDAO/TIANJIN/SHANGHAI
- T/T
You May Like
Product Details
| Standard or Nonstandard | Standard | Structure | Ball | |
| Pressure | Other, Medium Pressure, Medium Pressure | Power | Manual | |
| Material | Other, Casting, stainless steel, carbon steel | Temperature of Media | Normal Temperature | |
| Media | Other, Water, Oil,Water,Gas | Port Size | 1/4''-4'' | |
| Place of Origin | Shandong, China | Application | General |
Product Description
Stainless steel 3pc ball valve:
Product Description:
| Standard: | ANSI, DIN, JIS, BS | ||||
| Size: | 2"-32" or DN50-DN800 | ||||
| Pressure: | Class150-1500LB or PN16-PN160 or 10K-40K | ||||
| Design & Manufacture Std: | API608, ASME B16.34, API6D, BS5351,DIN,JIS | ||||
| Face to Face Std: | ASMEB16.10 (JISB2002),API 6D, DIN3202, ASME B16.25 | ||||
| End Connection Std: | ASME B16.5,ASME B16.47, JISB2212-JISB2214, DIN2543-2550,ASME B16.34 | ||||
| Structure Type: | One-piece, Two-piece, Three-Piece,Reduced bore, Full bore Floating type(1/2 -10 ), trunnion type(2 -32 ) | ||||
| Operated way: | Lever, Gear, Pneumatic, Electric Acturtor | ||||

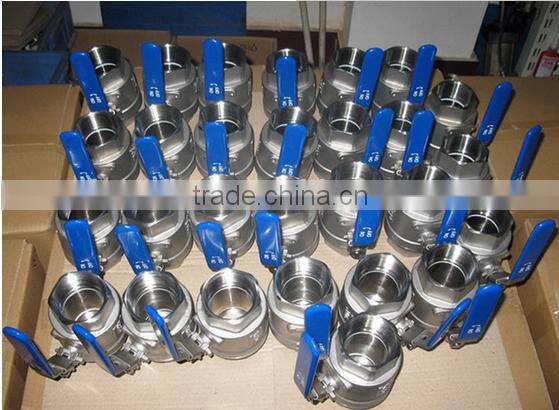

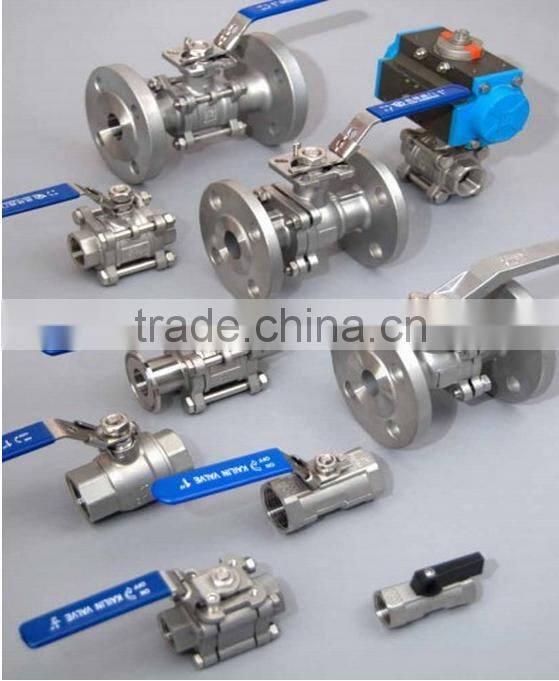

Product picture:
Packaging & Shipping:
Packaging Detail: pallet, wooden case, or as customers' requirment
Delivery Detail:about 30-35days after get the payment
Company Information:
BESTFLOW INDUSTRIAL CO., LTD. is one of professional manufacturers and exporters of
pipeline fittings in China. The products includes: steel fittings, steel flanges, steel nipples &
couplings, iron fittings etc., they are widely used the pipe systems of nuclear power plants,
power station, water, natural gas, petrochemical, oilfields, fire-fighting, ship buildings,
engineering fields and construction industry.
Warmly welcome the customers in domestic and foreign countries visit us, “BESTFLOW”
products would like to create the Brilliant future together with you.
Our Service:
BESTFLOW INDUSTRIAL CO., LTD.
Add: No. 63, TECHNOLOGY PARK, QINGDAO, CHINA
TEL:+86-532-55576189 FAX:+86-532-55576192
SKYPE: bestflowfitting WEBSITE:
