Home > Industrial Equipment & Components > Valve > Ball Valve > DIN3352 F4/F5 Flanged End Resilient Seat Non-rising Stem Gate Valves

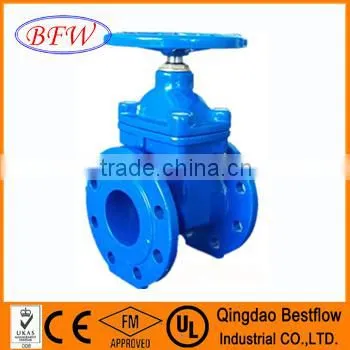

DIN3352 F4/F5 Flanged End Resilient Seat Non-rising Stem Gate Valves

US$ 10 - 150 MOQ: 1 Set

Key Specifications

Get Latest Price

Standard or Nonstandard:

Standard

Structure:

Gate

Pressure:

Low Pressure

Contact Supplier Request Quote Chat Now

Qingdao Bestflow Industrial Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

QINGDAO TIANJIN SHANGHAI

Delivery Detail:

Delivery time depends on order quantity.

Product Details
Company Profile
Contact Us

Standard or Nonstandard Standard

Structure Gate

Pressure Low Pressure

Power Manual

Material Other, Casting, Ductile iron, Grey iron, Steel

Temperature of Media Normal Temperature

Media Water

Port Size DN40-DN600

Place of Origin Shandong, China

Model Number BFW-011

Brand Name BFW

Specifications

Resilient Seated Gate Valve:
1. Standard: DIN3352
2. Size: DN40-DN600
3. Pressure: PN10, PN16, PN25

1. Product Description:

DIN3352 F4/F5 flanged end resilient seat non-rising stem gate valve:

1. Design, manufacture conforms to DIN3352.

2. Face to face dimension conforms to series 14 of BS EN558-1

3. Flange drilled conforms to BS EN1092-2.

Norminal Pressure		1.6MPa
Suitable Medium		water
Test pressure	shell	2.4MPa
	seat	1.76MPa
Test time	DN50-150	60S
	DN>150	120S
Temperature		≤80°C

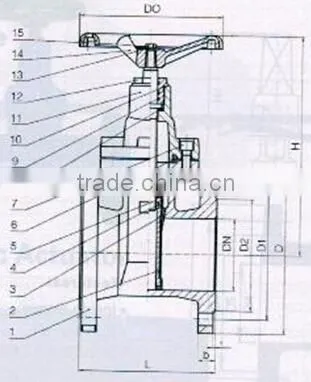

Dimensions:

DN	L	D	D1	D2	b	f	n-d	Do
40	140	150	110	84	18	3	4-19	130
50	150	165	125	102	19	3	4-19	130
65	170	185	145	122	19	3	4-19	130
80	180	200	160	132	19	3	8-19	150
100	190	220	180	156	19	3	8-19	185
125	200	250	210	184	19	3	8-19	185
150	210	285	240	211	19	3	8-23	195
200	230	340	295	266	20	3	12-23	225
250	250	405	355	319	22	3	12-28	245
300	270	460	410	370	24.5	4	12-28	285
350	290	520	470	429	26.5	4	16-28
400	310	580	525	480	28	4	16-31
450	330	640	585	548	30	4	20-31
500	350	715	650	609	31.5	4	20-34
600	390	840	770	720	36	5	20-37

Material list:

No.	Part	Material	Germany Standard	Chinese Standard
1	body	ductile iron	DIN1693 GGG50	GB1348-88 QT500-7
2	wedge frame	ductile iron	DIN1693 GGG50	GB1348-88 QT500-7
3	wedge	NBR		NBR
4	stem nut	cast brass	DIN17656G-CuZn37Pb	GB1176-87 ZCuZn40Pb2
5	stem	stainless steel		GB1220-92 2Cr13
6	flange gasket	NBR	DIN30	NBR
7	screw	steel		GB699-88 30
8	gasket	teflon		HG/T2902
9	O-ring	NBR		NBR
10	O-ring	NBR		NBR
11	bonnet	ductile iron	DIN1693 GGG50	GB1348-88 QT500-7
12	stuffing box	cast brass	DIN17656G-CuZn37Pb	GB1176-87 ZCuZn40Pb2
13	washer	steel	DIN17100 RSt37-2	GB700-88 Q235
14	handwheel	ductile iron	DIN1693 GGG50	GB1348-88 QT500-7
15	bolt	steel	DIN17100 RSt37-2	GB700-88 Q235

2. Packaging & Shipping:

Packaging Detail: Playwood Case

Delivery Detail: about 30-35days after get the downpayment

3. Our Service:

BESTFLOW INDUSTRIAL CO., LTD.

TEL:+86-532-55576189 FAX:+86-532-55576192

SKYPE: LINDA.BFW WEBSITE:

4. Company Information:

BESTFLOW INDUSTRIAL CO., LTD. is one of professional manufacturers and exporters of pipeline fittings in China. The products includes: steel fittings, steel flanges, steel nipples & couplings, iron fittings etc., they are widely used the pipe systems of nuclear power plants, power station, water, natural gas, petrochemical, oilfields, fire-fighting, ship buildings, engineering fields and construction industry.

Warmly welcome the customers in domestic and foreign countries visit us, “BESTFLOW” products would like to create the Brilliant future together with you.
