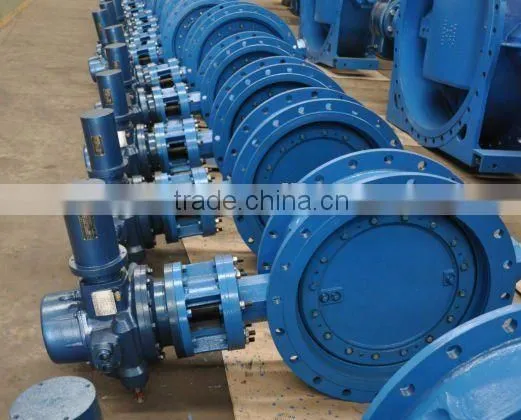

Help CenterPN16 Wafer Type Butterfly Valves
Related Products
-
ANSI Cast Iron Lug Type Butterfly ValveUS$ 2 - 500MOQ: 1 Piece -
China PVC Socket Ends Ductile Iron Non-rising Stem Resilient Seated Gate ValveUS$ 8 - 150MOQ: 1 Set
-
AWWA C515/C509 250 PSI Ductile Iron Rising Stem Resilient Seated Gate ValveUS$ 8 - 150MOQ: 1 Set
-
BS5163/EN1171 PN25 Non-rising Stem Resilient Seated Gate ValveUS$ 8 - 150MOQ: 1 Set
-
BS5163 Type B PN10/PN16 Non-rising Stem Resilient Seated Gate Valve With Stem CapUS$ 8 - 150MOQ: 1 Set
Specifications

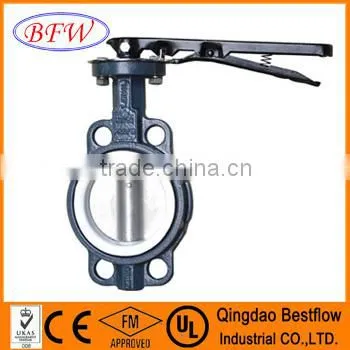

PN16 Wafer type butterfly valve:Material: iron, steel, stainless steel, bronze.
Size: 1 1/2"-48"
Type: wafer type, lug type
1. Company Information:
BESTFLOW INDUSTRIAL CO., LTD. is one of professional manufacturers and exporters of valves in China. The products includes: gate valve, globe valve, check valve, butterfly valve, ball valve etc., they are widely used the valve systems of nuclear power plants, power station, water, natural gas, petrochemical, oilfields, fire-fighting, ship buildings, engineering fields and construction industry.
Depend on advanced production technology and equipment, strict quality management and control, good service and competitive prices, win a good reputation in the domestic and foreign customers, and exported the products to Europe, America, Middle East and southeast Asian, over 50 countries and areas.

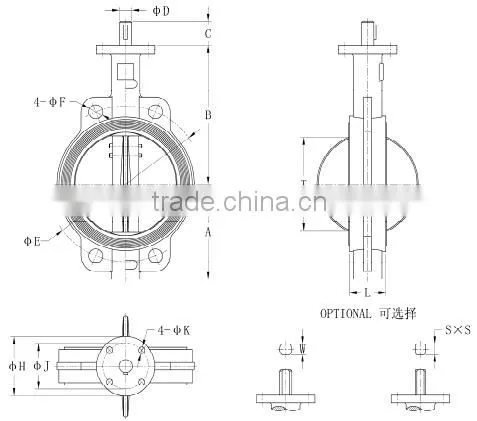

2. Product Description:
| Materials list | ||
| Item | Part Name | Materials |
| 1 | Body | Cast Iron: ASTM A126CL.B, DIN691 GG25, EN1561 EN-GJL-200; GB12226 HT200; |
| Ductile Cast Iron: ASTM A536 65-45-12, DIN 1693 GGG40, EN 1563 EN-GJS-400-15, GB12227 QT450-10; | ||
| Stainless Steel: ASTM A351 CF8, CF8M; CF3, CF3M; | ||
| Carbon steel: ASTM A216 WCB | ||
| 2 | Stem | Zinc Plated Steel; |
| Stainless Steel: ASTM A276 Type 316, Type 410, Type 420; ASTM A582 Type 416 | ||
| 3 | Taper Pin | Stainless Steel: ASTM A276 Type 304, Type 316; EN1.4501 |
| 4 | Seat | NBR, EPDM, Neoprene, PTFE, Viton |
| 5 | Disc | Ductile Cast Iron (Nickel plated): ASTM A536 65-45-12, DIN 4693 GGG40, EN1563 EN-GJS-400-15, GB12227 QT450-10; |
| Stainless Steel: ASTM A351 CF8, CF8M; CF3, CF3M; EN1.4408, 1.4469; 1.4501; | ||
| AL-Bronze: ASTM B148 C95400 | ||
| 6 | O-Ring | NBR, EPDM, Neoprene, Viton |
| 7 | Bushing | PTFE, Nylon, Lubricated Bronze; |
| 8 | Key | Carbon steel |

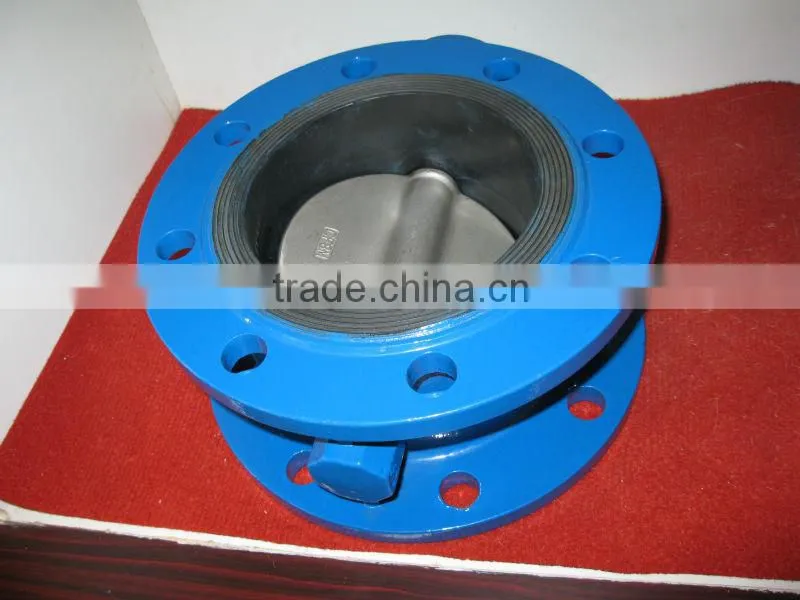

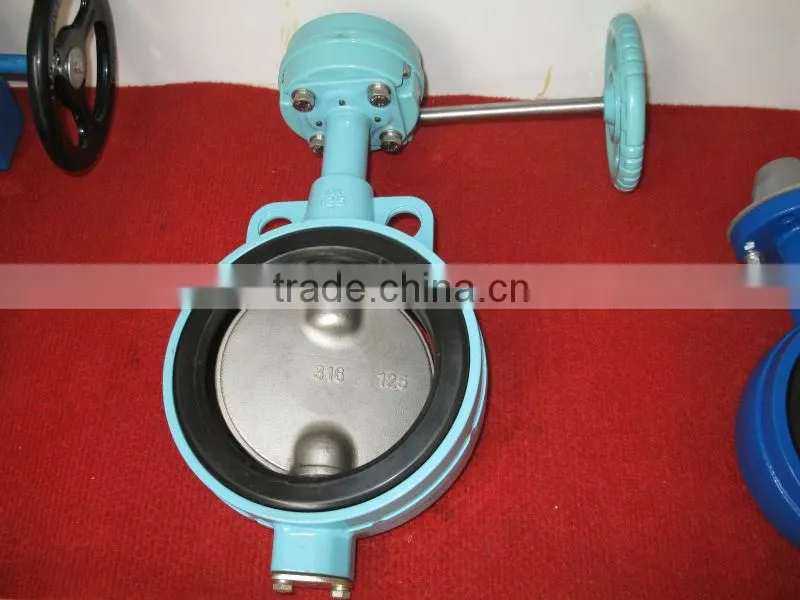

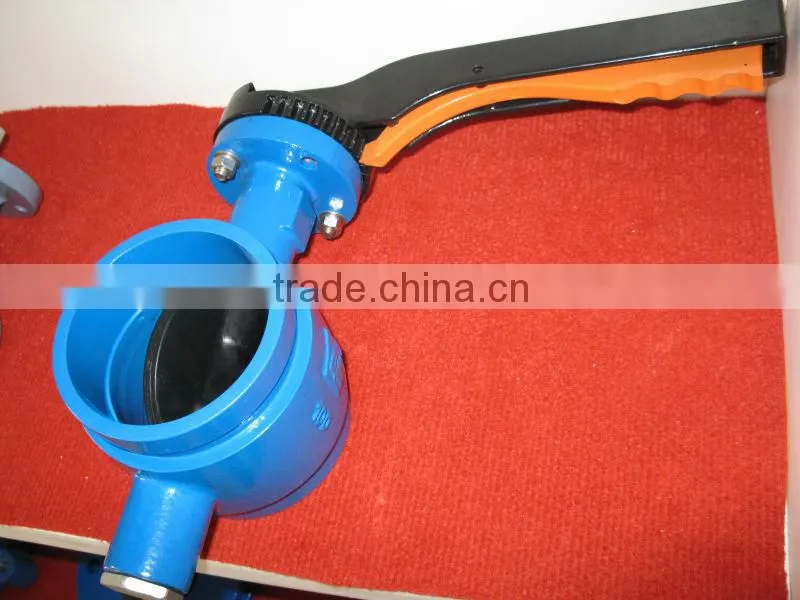

Other butterfly valves we produce:
3. Our Service:
BESTFLOW INDUSTRIAL CO., LTD.
Add: No. 63, TECHNOLOGY PARK, QINGDAO, CHINA
TEL:+86-532-55576189 FAX:+86-532-55576192
SKYPE: LINDA.BFW WEBSITE:
