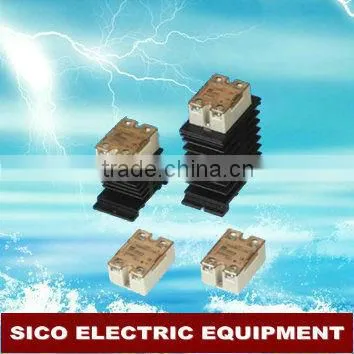

DC Solid State Relay

DC Solid State Relay thumbnail-1
DC Solid State Relay photo-1
US$ 3 - 200 MOQ: 500 Pieces
Key Specifications
Get Latest Price
Place of Origin:
Shandong, China
Brand Name:
SICO
Theory:
Voltage Relay
Contact Supplier Request Quote Chat Now
Qingdao SICO Electrical Equipment Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
Qingdao
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Place of Origin Shandong, China
Brand Name SICO
Theory Voltage Relay
Usage General Purpose
Size Miniature
Protect Feature Sealed
Contact Load High Power

Solid State Relay/SSR/Single Phase SSR





1. Load current range: 2A, 15A, 25A, 40A, 50A, 80A, 100A.



2.  Load voltage range: AC 24~660V AC.



3.  Control voltage: DC 3~32V or AC 90~250V ; Control current: 6mA~25mA.



4. Input constant current control, AC Zero point On and OFF function



5. Adop technic of glass passivation triac square piece(>50A), good in dispersing heat.



6.  Optic isolated (>or=2000V AC 1min ), dual triac strong output or single triac reversal parallel connection strong output.



7. Input or output LED indication.



8.  Widely used in various automatic fields like chemical fibre machinery, temperature controller, electric cooker, rubber machinery, fountain control, numerical control machinery etc.



9.  Reliable quality to replace famous brands .











 Ordering Code
Model and Type Load Current Load Voltage Control Voltage Appearance   Buy
SSR-15A AC 15A AC 24~660V DC 3~32V Normal
SSR-25A AC 25A AC 24~660V DC 3~32V Normal
SSR-40A AC 40A AC 24~660V DC 3~32V Normal
SSR-50A AC 50A AC 24~660V DC 3~32V Normal
SSR-60A AC 60A AC 24~660V DC 3~32V Normal
SSR-80A AC 80A AC 24~660V DC 3~32V Normal
SSR-100A AC 100A AC 24~660V DC 3~32V Normal

Technical Specifications:
Property project Specific parameter
Max. Load Current AC 15A, 25A, 40A, 50A, 80A, 100A
Load Voltage AC 24~660V
Isolated Voltage >or= 2000V AC 1 min.
Insulation Voltae >or=2000V AC 1 min.
Control Voltage DC 3~32V
Control Current 6mA~25mA
Turn-On Voltage <or=1.3V
Off-set leakage <or= 1.3mA
Off state dv/dt 300v/us
On - Off Time 100ms
Frequency Range 47/63 Hz
Status Indicator Red LED
Ambient Temperature -40~80 C

Net Weight

200g
