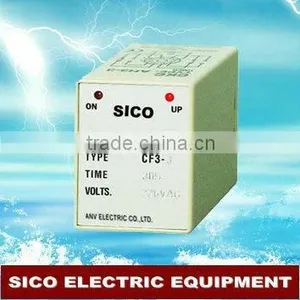

Electric Timer Relay SC-CF3

Electric Timer Relay SC-CF3

Using Conditions

• Sea level height: less than 2500m
• Surrounding temperature: -10-40
• Ambient humidity: no more than 90%
• Fluctuation voltage range: 85% ~ 110% rated voltage
• DC power supply ripple factor: less than 5% Weight::about 80g

Technical Parameters

1. Rated voltage: 1. AC 2. DC 3.AC/DC

380V, 220V, 110V, 48V, 36V, 24V, 12V

2. Repeat error: ≤±1%

3. Delay Accuracy: 0.03% 10mS

4. Voltage fluctuation error: during rated voltage: 85% 110%, error±5%

5. Temperature error: during temperature: -10 ~ +40 , error ≤±10%

6. Contact Capacity: AC250V 5A coos1 DC12 7A

7. Installation: panel type, device type, guide type

8. Mechanical life: 1000,000 cycles

9. Electrical life: 100,000 cycles
