Place of Origin Shandong, China
Brand Name SICO
Model Number LW26
Max. Current 160A
Max. Voltage 440V

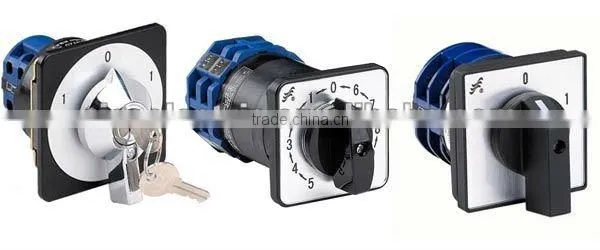

Rotary Switches

Introduction
The LW26 sereies rotary switch mainly applies to 440V and below,AC 50Hz or 240V and below DC circuits.For breaking and closing,change-over of circuits under unfrequenly manual operation.And the typical application are:control switch of 3 phase motors,control switch gear,control switch of instruments,and change-over switch of machinery and welding machine.
The series comply with the GB 14048.3,GB 14048.5 and IEC 60947-3,IEC 60947-5-1.
The LW26 series have 7 current ratings:10A,20A,25A,32A,63A,125A and 160A.
The LW26 series rotary switch were designed for multiple functions,wide variety of appli -cations.
The LW26-10,LW26-20,LW26-25,and LW26-32F have finger protection terminals.
LW26 series rotary switch are an excellent substitute for LW2,LW5,LW6,LW8,LW12,LW15,HZ5, HZ10,and HZ12.
The LW26 series rotary switch has two derivatives,LW26GS Pad-lock and LW26S lock.
Both of them are applicable in circuits when an physical control is required.
We can equip protective box for 20A,25A,32A and 63A.

Technical parameters

Description
LW26-10
LW26-20
LW26-25
LW26-32
LW26-63
LW26-125
LW26-160
Rated insolation voltage Ui V
660
660
660
660
660
 660
660
Rated thermal current
 Ith A
10
 20
25
32
63
125
 160
Rated working voltage
 Ue V 240 440 24 110 240 440 24 110 240 440 240 440 240 440 240 440 240 440
Rated working current
 Ie           20 20
AC-21A AC-22A
   A 10 10             25 25 32 32 63 63 100 100 150 150
AC-23A
   A 7.5 7.5     15 15     22 22 30 30 57 57 90 90 135 135
AC-2
   A 7.5 7.5     15 15     22 22 30 30 57 57 90 90 135 135
AC-3
   A 5.5 5.5     11 11     15 15 22 22 36 36 75 75 95 95
AC-4
   A 1.75 1.75     3.5 3.5     6.5 6.5 11 11 15 15 30 30 55 55
AC-15
   A 2.5 2.5     5 4     8 5 14 6
AC-13
   A     12 0.4 0.4   20 0.5 0.5
power
   P
AC-23A
   KW 1.8 3     3.7/2.5 7.5/3.7     5.5/3 11/5.5 7.5/4 15/7.5 15/10 30/18.5 30/15 45/22 37/22 75/37
AC-2
   KW 2.5 3.7     4 7.5     5.5 11 7.5 15 18.5 30 30 45 37 55
AC-3
   KW 1.5 2.2     3/2.2 5.5/3     4/3 7.5/3.7 5.5/4 11/5.5 11/6 18.5/11 15/7.5 30/13 22/11 37/18.5
AC-4
   KW 0.37 0.55     0.55/0.75 1.5/1.5     1.5/1.1 3/2.2 2.7/1.5 5.5/3 5.5/2.4 7.5/4 6/3 12/5.5 10/4 15/7.5




Re1:Neutral
Re2:The power under:AC-23A,AC-3,AC-4 are in three phase three pole,and denominator represents the power under single phase two poles.
Mechancal life
Mechanical life without load:0.1×106times,operation frequency is 120 times/h.
Mechanical life with load:0.03×106times operation frequency is 120 times/h.

Dimensions and installation



Rotary Switches




Description
Escutcheon plate
Dimensions(mm)
Installation (mm)
A
B
C
L
E
F
D1
D2
LW26-10 M0square 30 30 28 22+8n 20   φ8
3.2
LW26X-10 M0square 30 30 28 26.5+12n 20   φ8 φ3.2
LW26-20 M1square 48 48 43 22+9.6n 36 36 φ8.5 φ4.5
  M1rectangular 48 60 43 22+9.6n 36 36 φ8.5 φ4.5
  M2square 64 64 43 22+9.6n 48 48 φ10 φ4.5
  M2rectangular 64 80 43 22+9.6n 48 48 φ10 φ4.5
LW26c-20 M2square 64 64 60 42.5+12.6n 48 48 φ10 φ4.5
  M2rectangular 64 80 60 42.5+12.6n 48 48 φ10 φ4.5
  M3square 88 88 60 42.5+12.6n 68 68 φ13 φ6
LW26-25 M1square 48 48 45.2 23+12.8n 36 36 φ8.5 φ4.5
  M1rectangular 48 60 45.2 23+12.8n 36 36 φ8.5 φ4.5
  M2square 64 64 45.2 26.5+12.8n 48 48 φ10 φ4.5
  M2rectangular 64 80 45.2 26.5+12.8n 48 48 φ10 φ4.5
LW26-32 M2square 64 64 58 29.2+12.8n 48 48 φ10 φ4.5
  M2rectangular 64 80 58 29.2+12.8n 48 48 φ10 φ4.5
  M3square 88 88 58 29.2+12.8n 68 68 φ13 φ6
LW26-32F M1square 48 48 48 23+14n 36 36 φ8.5 φ4.5
  M1rectangular 48 60 48 23+14n 36 36 φ8.5 φ4.5
  M2square 64 64 48 24.5+14n 48 48 φ10 φ4.5
  M2rectangular 64 90 48 24.5+14n 48 48 φ10 φ4.5
LW26-63 M2square 64 64 66 29.2+21.5n 48 48 φ10 φ4.5
  M2rectangular 64 80 66 29.2+21.5n 48 48 φ10 φ4.5
  M3square 88 88 66 29.2+21.5n 68 68 φ13 φ6
LW26-125 M3square 88 88 84 35+26.5n 68 68 φ13 φ6
LW26-160 M3square 88 88 88 35+32.5n 68 68 φ13 φ6
