Specifications
1.High quality 5kw off grid inverter2.high-end chip
ft-start function
4.dc12v to ac 220v
5.warranty:24 months

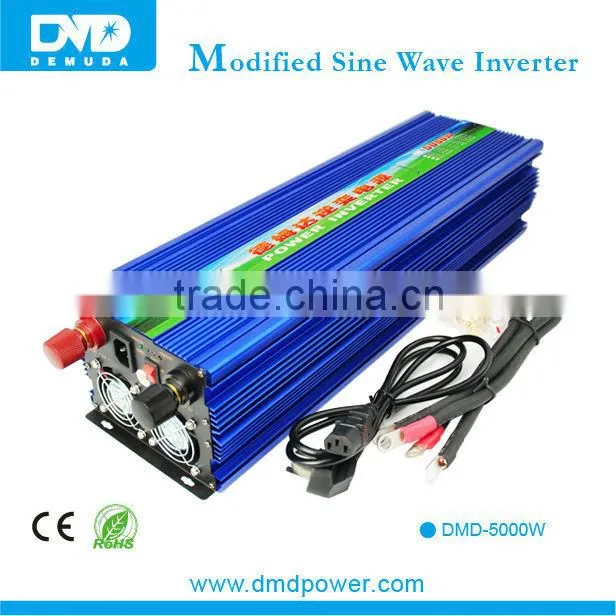

5000w modified sine wave solar power inverter dc 12v ac 220v circuit diagram
5000w Inverter Specification:
1.Good quality 5kw off grid inverter
2.Soft-start function
3.deal for energy system solutions
4.High-end chip, high-performance CPU
Inverter Detailed Description :
| Model No. | DMD-5000W/12V/F/B |
|
| Input Section | DC Input Voltage | 12V |
| DC Operating Voltage | 11-15V | |
| DC Low-voltage Protection | 9-10.5V | |
| DC Low-voltage Alarm | 9.5-11V | |
| DC Over-voltage Protection | ≥15V | |
| Fuse | 40A*3 | |
| Quiescent Current | ≤1A | |
| Output Section | Output Waveform | Modified Sine Wave |
| Output Voltage | 220V±10% | |
| Output Frequency | 50Hz±1% | |
| Power Rating | 5000W | |
| Continue Output Rating | 4000W | |
| Peak Power Rating Output | 10000W | |
| Transfer Efficiency | ≥90 % | |
| Overload Protection | 4000W--4800W | |
| Short-circuit Protection | Yes | |
| Operating Temperature | -10°C--+50°C | |
| Temperature Protection | +60°C--+70°C | |
| Green LED Indicator | Green Light(Working),Flash(Overload Protection) | |
| Red LED Indicator | Red Light(Error Protection) | |
| Size | Size: 550 x 160 x 120mm | |
| Weight | 8 .8kg | |
| Packing | Color box packing or skin packing | |

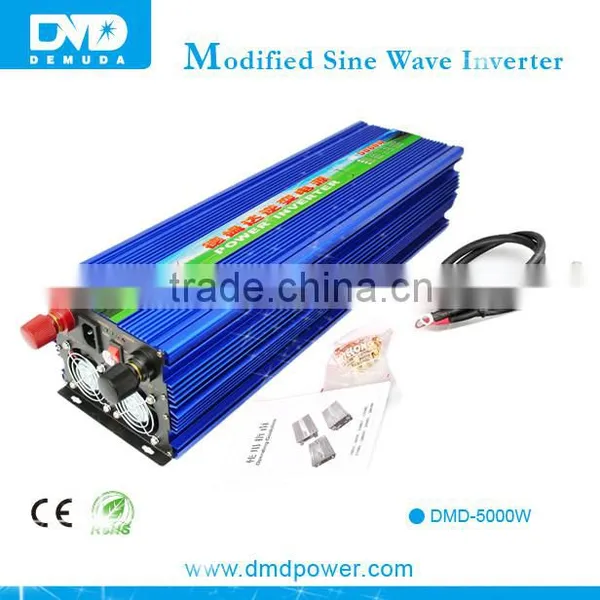

Inverter Package:

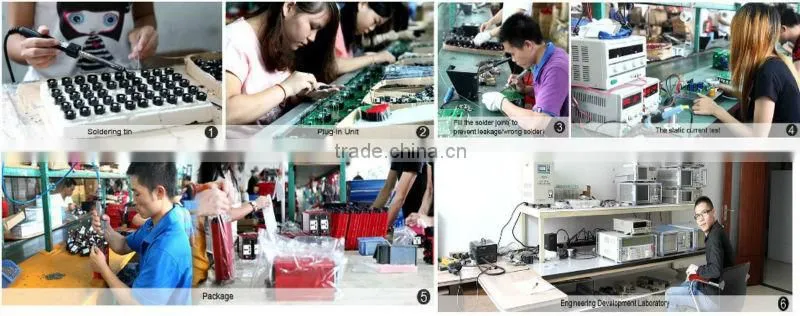

Inverter Production Flow:

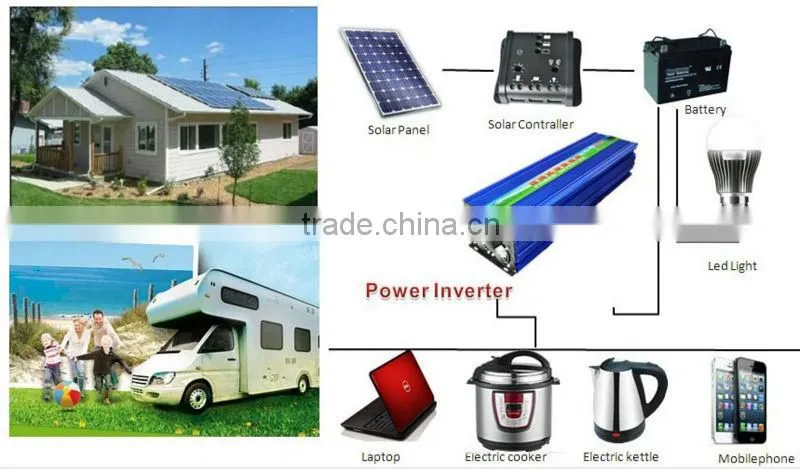

Inverter Application:
Plug Type:
Customer Service :
(1)Warranty
24 months warranty
(2)Payment terms
T/T in advance
Western Union
Paypal or L/C
(3)Lead Time
1.inverter sample orders will be delivered from our factory within 7 working days.
2. General orders will be delivered from our factory within 7-15 working days.
3. Bulk orders will be delivered from our factory within 25 working days at most
(4)Shippment
1. By EMS, DHL, FedEx, TNT, UPS or other express.
2. By our forwarding agent (by air or by sea).
3. By your own forwarding agent.
4. By domestic forwarding agents to any city in China.
Inverter Certification:
Looking forward to successful cooperation with you!
