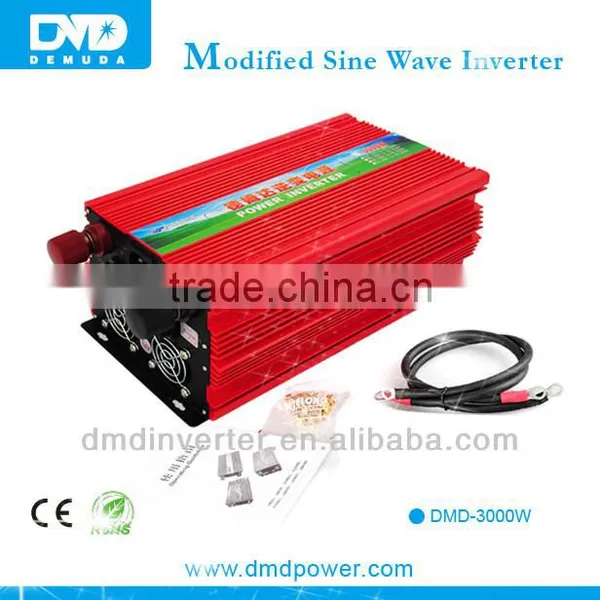

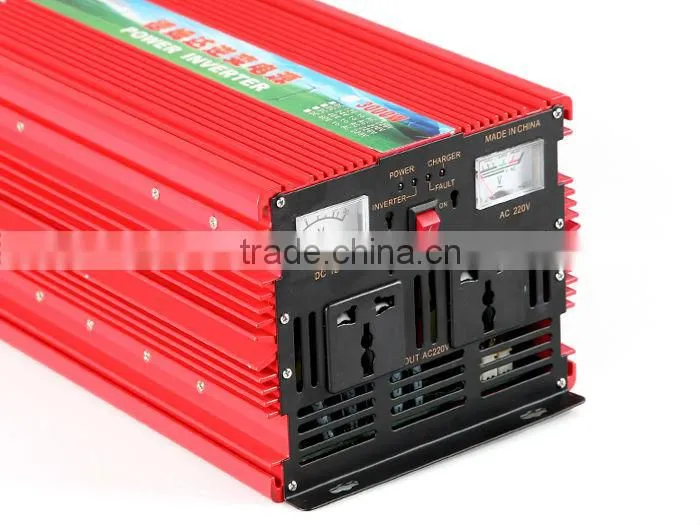

Preferential Price Invertor 12v 230v 3kw Solar Power Inverter Solar Water Pump Inverter
- 10000 Piece / Pieces per Month
- Huang Pu
- T/T L/C D/P D/A Credit Card PayPal
- electric ac motor speed controller 480V 32A 18kw 3phase Input&3Phase Output AC frequency converter with 18 months warranty
- 45kw 380v vector control ac frequency converter 50hz 60hz motor frequency inverter 3 phase Power Frequency Converter for Pump
- EM15-G3 General used Vector control Frequency inverter(3 phase )
- EMHEATER soft starter
- EM GS2 7.5KW 220V 240V Motor Soft Starter for Submersible Pump deep well
- Inverter AB PowerFlex®7 Converter 22CD012N103 Inverter PowerFlex 400- 5.5 kW (7.5 HP) AC Drive
Product Details
Place of Origin: | Guangdong, China | Brand Name: | DEMUDA | Model Number: | DMD-3000/12V/F/A |
Output Power: | 1 - 200KW | Output Type: | Single | Size: | 305 x 165 x 125mm |
Weight: | 4.8Kg | Input Voltage: | 12VDC | Output Voltage: | 230VAC |
Type: | Other, DC/AC Inverters, Invertor 12v 230v 3kw Solar Power Inverter Solar Water Pump Inverter | Output Frequency: | 220V/50HZ | Output Current: | 13.04A |
Product Description
Specifications
Preferential Price Invertor 12v 230v 3kw Solar Power Inverter Solar Water Pump Inverter,soft-start
,overload protection
Preferential Price Invertor 12v 230v 3kw Solar Power Inverter Solar Water Pump Inverter
Detailed Description
Model No. | DMD-3000W/12V/F/A | |
Size | 305 x 165 x 125mm | |
Weight | 5.5Kg | |
Certificate | CE and ROHS | |
DC Input section | DC Input Voltage | 12V |
DC Operating Voltage | 11-15V | |
DC Low-voltage Protection | 9-10.5V | |
DC Low-voltage Alarm | 9.5-11V | |
DC Over-voltage Protection | ≥15V | |
Fuse | 40A*3 | |
Quiescent Current | ≤1.6A | |
AC input Section | AC input voltage | 220v |
AC inout frequency | 50Hz | |
AC operating voltage | 170-250v | |
AC Low-voltage Protection | ≤150v | |
AC over-voltage Protection | ≥250v | |
Ac input Frequency | 50Hz | |
Working and Protection | Transfer Efficiency | ≥90% |
Overload Protection | 3000W--3600W | |
Short-circuit Protection | Yes | |
Start | soft-start function | |
Operating Temperature | -10°C--+50°C | |
Temperature Protection | +60°C--+70°C | |
Green LED Indicator | Green Light(Working),Flash(Overload Protection) | |
Red LED Indicator | Red Light(Error Protection) | |
Other | Warranty | 2 years |
Packing | Color box packing or skin packing |

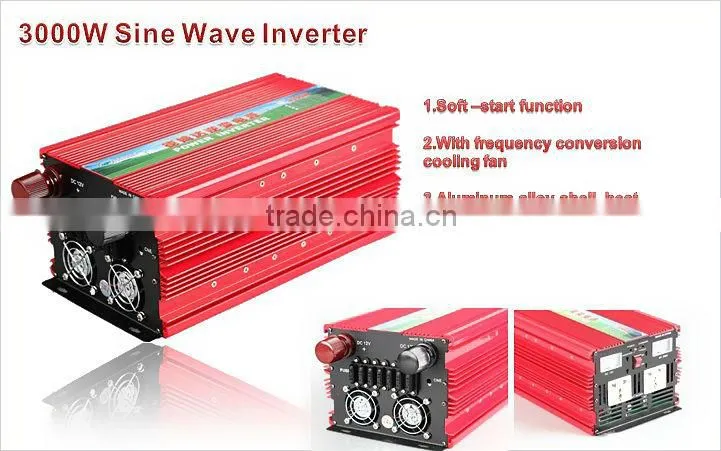

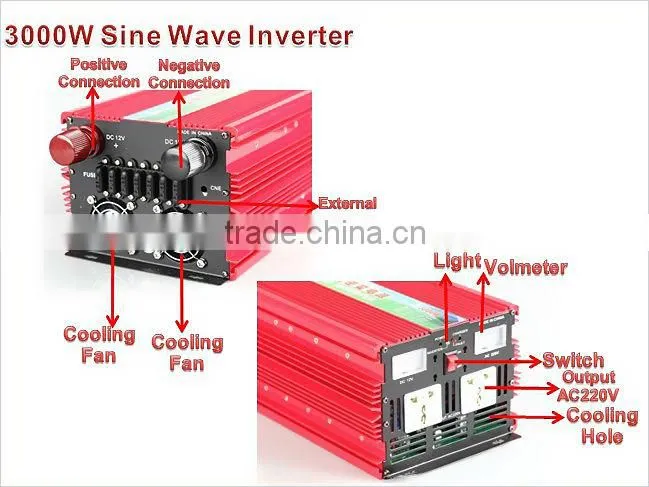

Features
1.High-end chip, high-performance CPU, improve the working reliability
2.Overvoltage, low voltage, over temperature,overload, short circuit, revese connection protection
3.Sound and light alarm, under-voltage alarm, with frequency-conversion cooling fan
4.Soft-start function, increase loading capacity
5.Aluminum ally shell, Heat eliminable
6.With battery clip and manual
Product Display

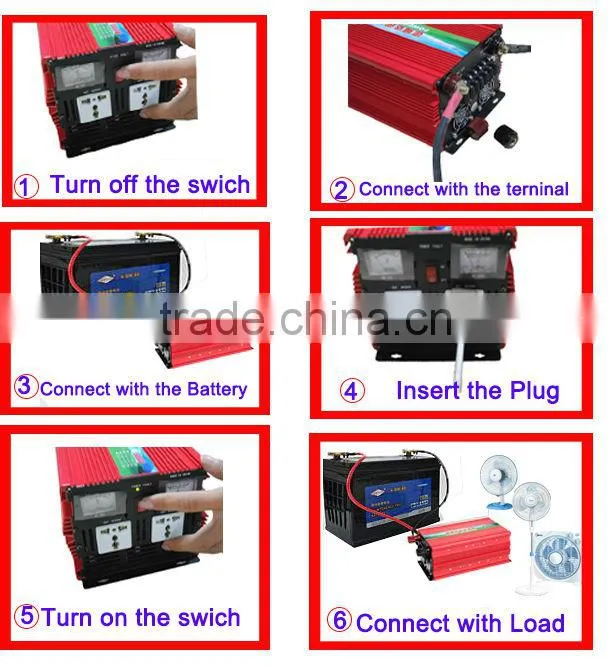

Operating Guideline
Demuda established in 2003, is a high-tech enterprise which specialized in solar power inverter industry. It is well known for its high-performance full sine wave solar power inverter. Demuda series inverter converts DC energy from solar modules into clean, stable AC power inverter that is ideal for powering demanding appliances. Demuda makes you the perfect choice for use with high-end electronics and electrical equipment...
