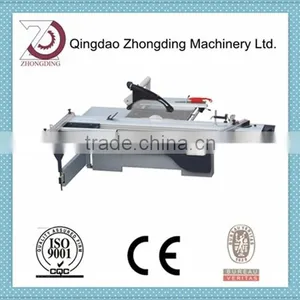

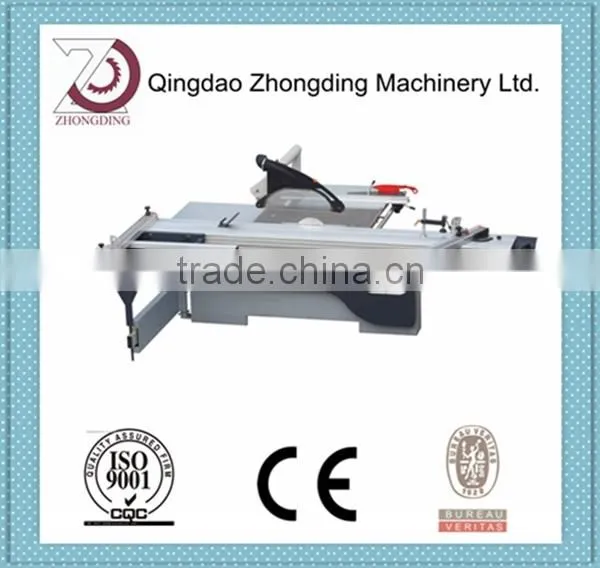

Electric Sliding Panel Saw
US$ 2,000 - 3,000
MOQ: 1 Set
Key Specifications
Get Latest Price
Condition:
New
Type:
Table Panel Saw
Use:
Woodworking
Payment & Shipping
Payment Methods:
Port of Shipment:
QingDao
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
High Quality Woodwroking Sliding Table Saw Machinery With Scoring Blade Quality Choice Most PopularUS$ 1,000 - 3,000MOQ: 1 Set -
Woodworking Machine Equipment Panel Saw Machine, Panel Cutting MachineUS$ 1,700 - 3,000MOQ: 1 Set
-
ISO/CE Approved Linear Sliding Table Saw MachineryUS$ 1,000 - 4,500MOQ: 1 Set
-
Panel Saw WoodworkingUS$ 2,000 - 3,000MOQ: 1 Set
-
Woodworking Machine Table Saw, Panel Cutting MachineUS$ 1,700 - 3,000MOQ: 1 Set
Condition
New
Type
Table Panel Saw
Use
Woodworking
Style
Horizontal
Place of Origin
Shandong, China
Brand Name
ZHONGDING
Model Number
MJ6132TY
Usage
cutting MDF board , chipboard, ABS board,etc
Voltage
optional
Power(W)
5.5KW(7.5HP)
Dimension(L*W*H)
3050*3150*900mm
Weight
780kgs
Certification
ISO9000, CE
Warranty
1 Year
After-sales Service Provided
Engineers available to service machinery overseas

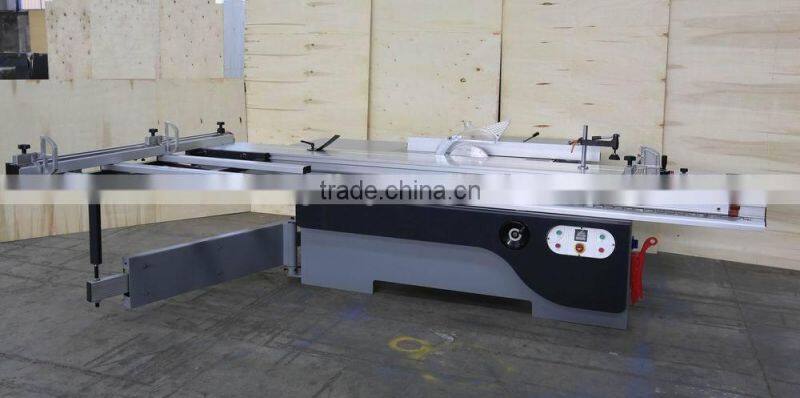

Electric sliding panel saw
Function and Features:
- Our table is very durable and accurate, because it has experience three steps:
a. Milling b. Heat treatment c. Flatting

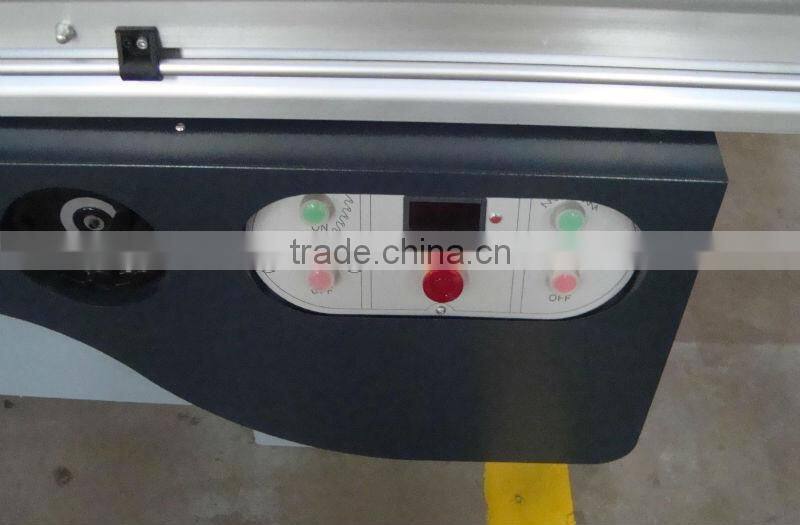

- When workers open the distribution box, the powerwill be off automatically.and we adopts low voltage(24V) to control high voltage on the control panel.
- Our Sliding Table Saw is cut by laser, so it is more durable and solid, there's no welding marks on .
- Our product has strict quality control:
a.Test the smoothly of the flat: the balance is :less than 3 um.
b.Test the noise of the belt:the dynamic balance:less than 1 gram.
- Our panel saw has two blades to avoid the panel cracking:
- Our bearings are made in Japan.
Specification
Model |
MJ6132-45Y |
MJ6132-45Z |
|
|
Sliding table length |
3200mm |
3200mm |
|
|
Max.Extent height of main saw blade |
80mm |
80mm |
|
|

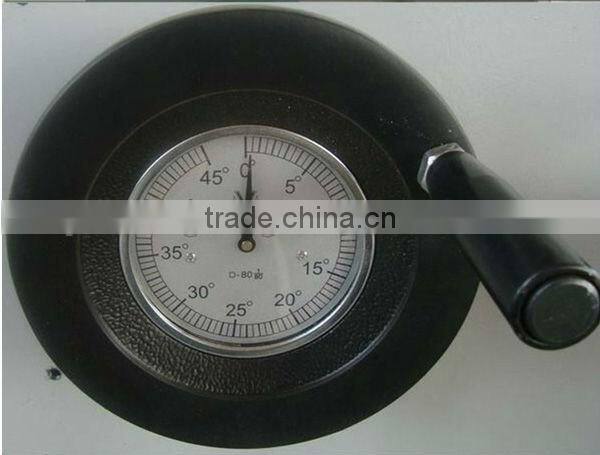

Saw group titled angle |
0-45°or 90 |
0-45° or 90 |
|
|
Main diameter |
250-300mm |
250-300mm |
|
|
Main spindle rotation speed |
4000/5600r.p.m |
4000/5600r.p.m |
|
|
Main saw motor power |
3-5.5kw |
3-5.5kw |
|
|
Scoring blade rpm |
8000r.p.m |
8000r.p.m |
|
|
Scoring motor |
0.75kw |
0.75kw |
|
|
Scoring diam |
120mm |
120mm |
|
|

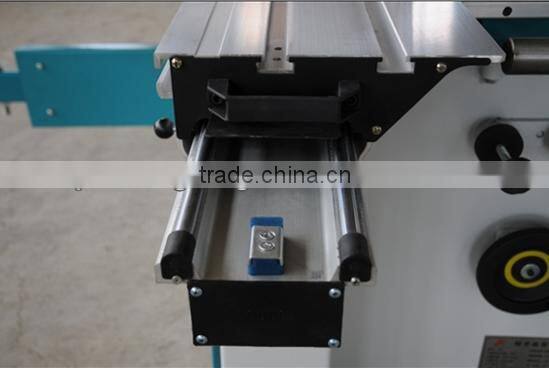

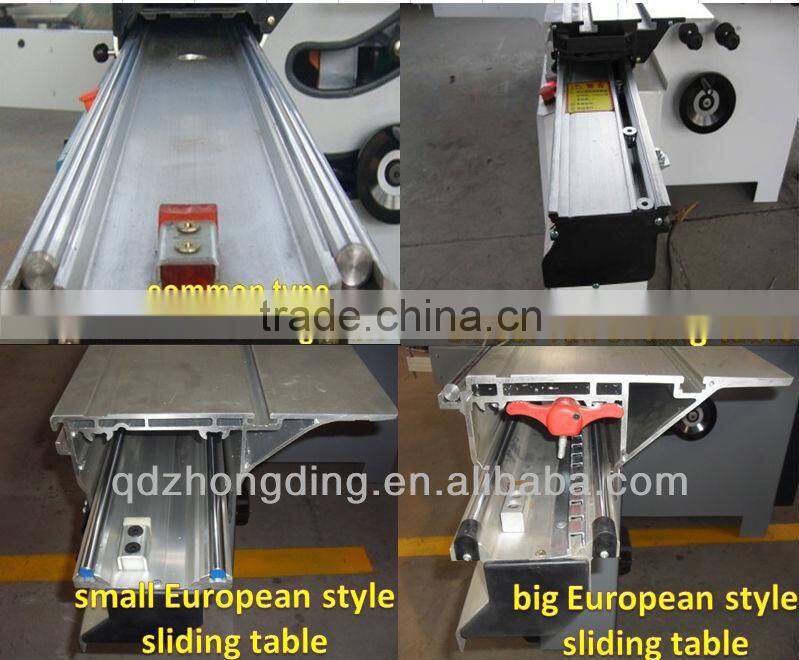

Guide |
Roller rail |
Liner rail |
|
