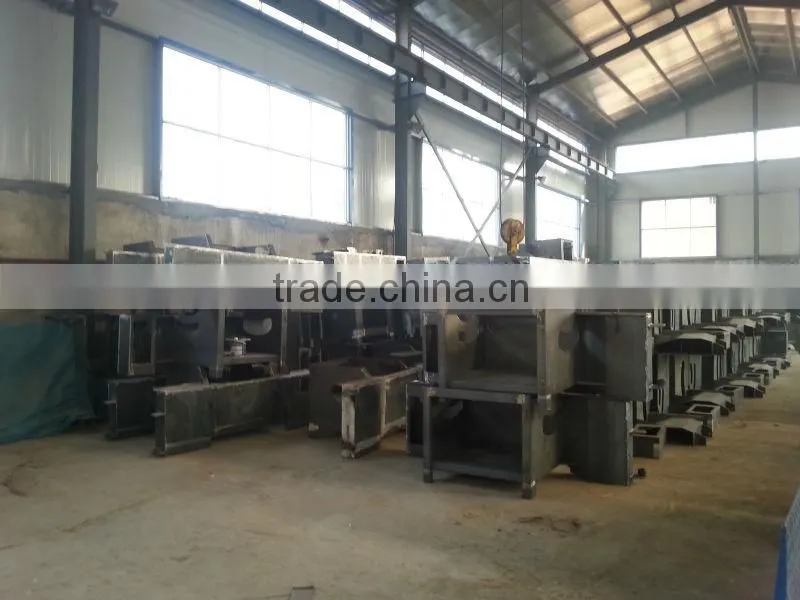

Our Factory :
We are Qingdao Zhongding Machinery Co.,ltd and specialized in woodworking machines such as edge banding machine, sliding table saw, cold press, drilling machine and so on. We have professional technology, full range of testing lines and pipelining. We are looking forward to establishing long term cooperation relationship with you and offer you high quality products and perfect service.

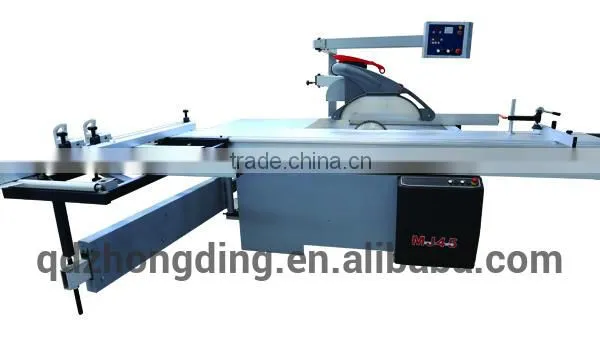

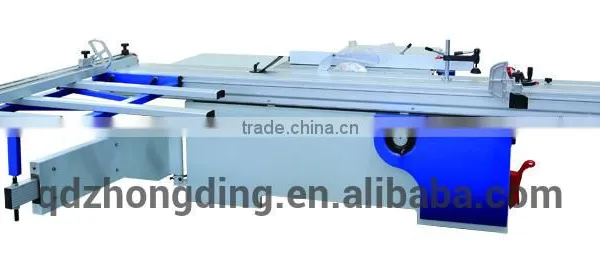

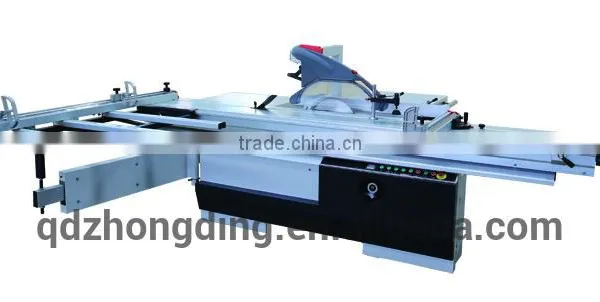

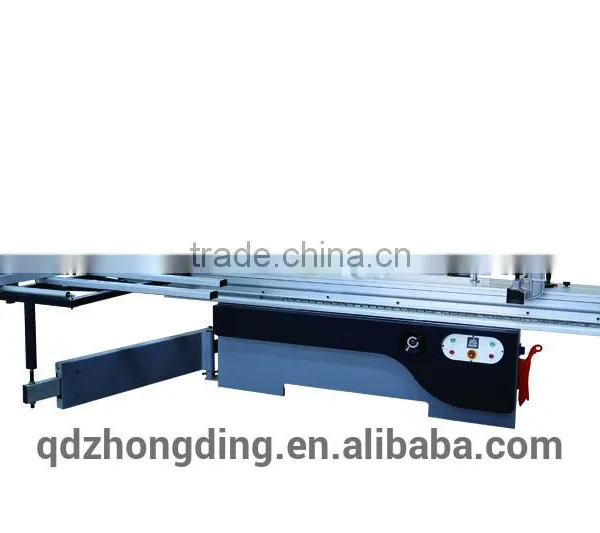

Precise Panel Saw/Sliding Table Saw

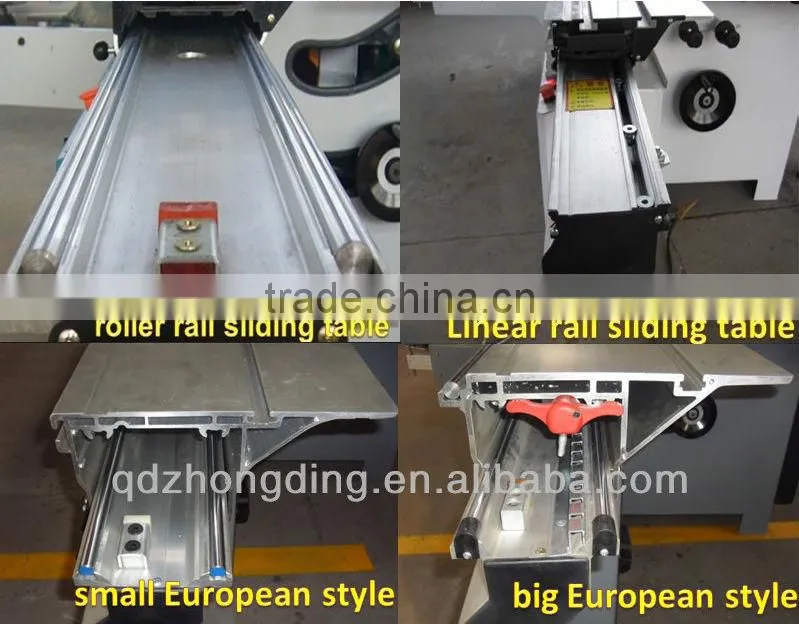

Latest sliding table: Big European Style
Advantages
- Apply to processing all kinds of density boards, shaving boards, wood-based Panels , ABS Panels, PVC Panels , organic glass plates and solid wood and others with wood structure and similar hardness.
- This sliding table saw is a high quality machine produced according to international advanced technique.High-quality parts guarantee the machine's precision and long life.
- Wider duralumin sliding table is firm and durable.
- High Precision steel guide has been processed ultrahard,which guarantees guide precision and enduring
- Electric lifting saw blade is easy for operating.
- Clear dial shows saw blade inclination angle.
- It is the necessary working tool for furniture production and decoration industry.

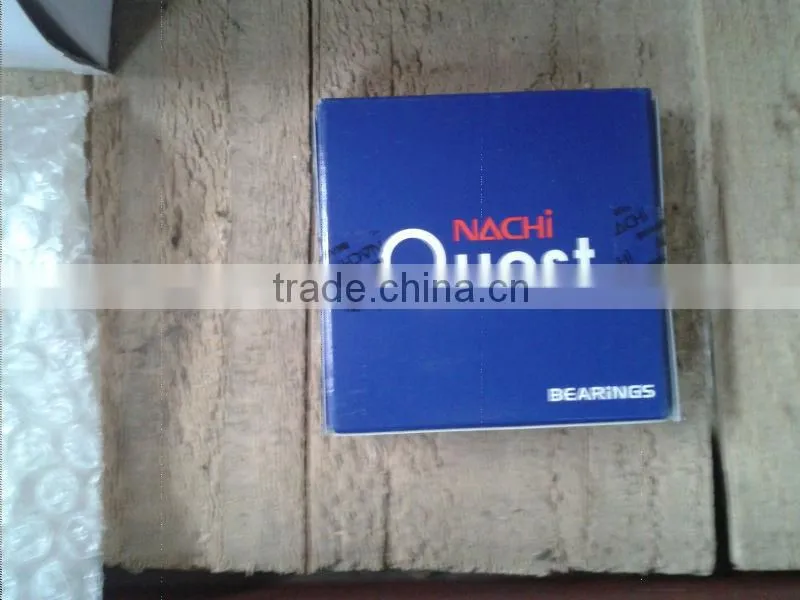

Bearings are imported from Japan:

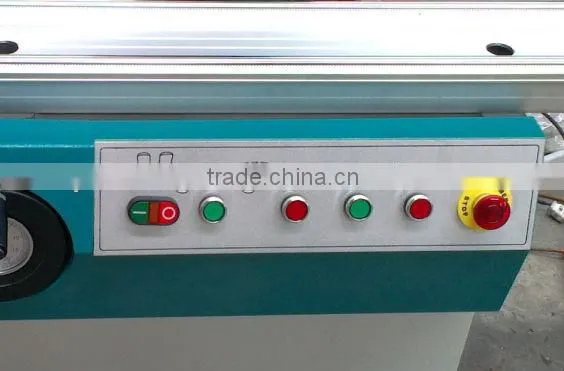

In order to protect the worker, our machine adopts low voltage(24V) to control high voltage on the control panel.

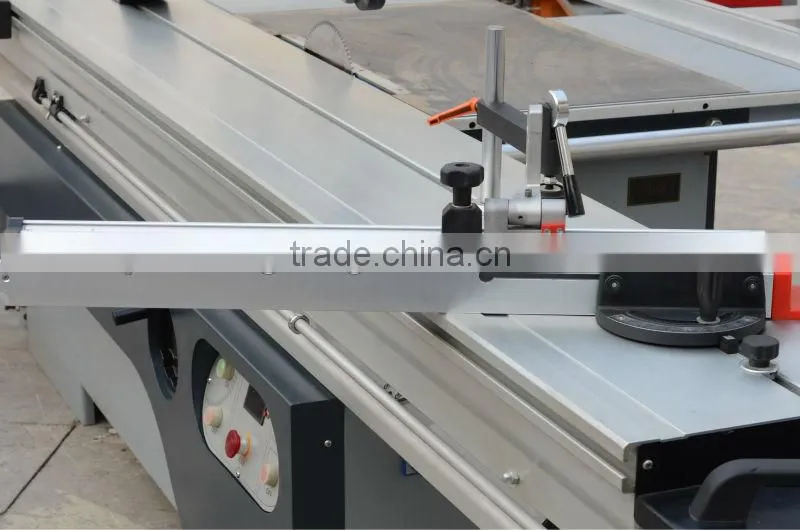

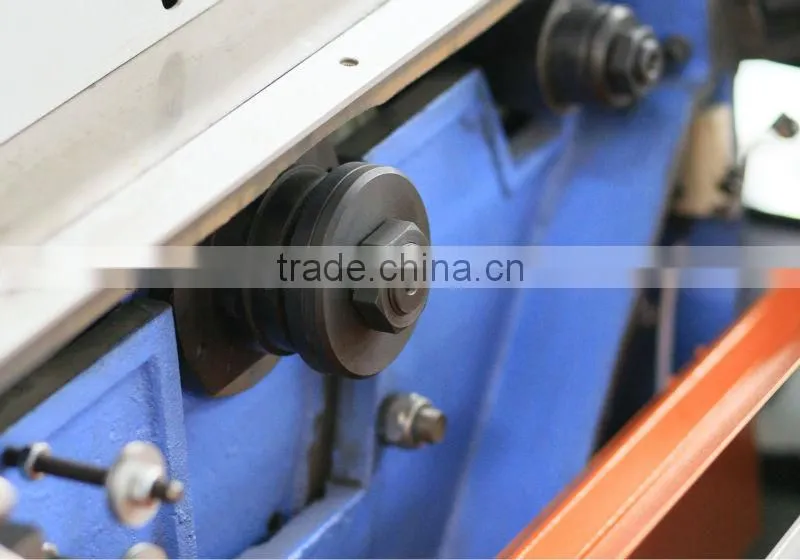

The fixing device:

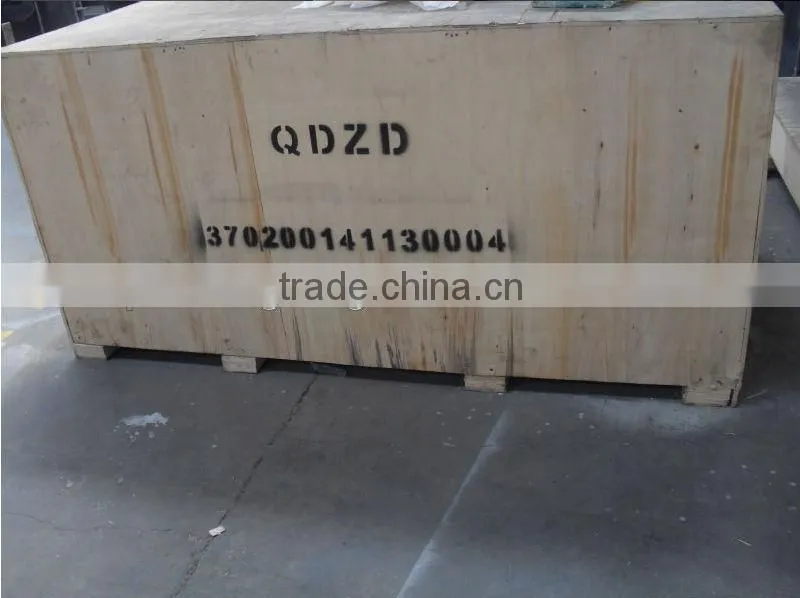

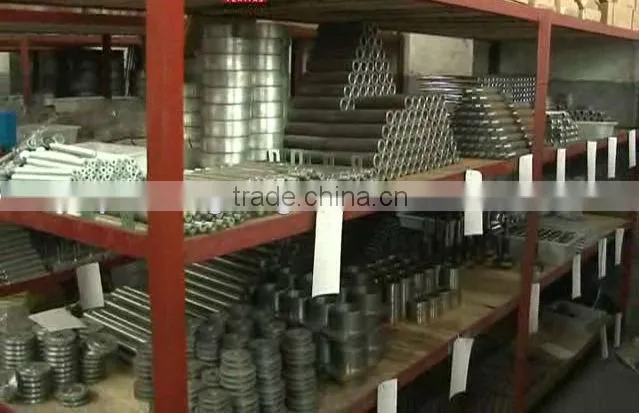

Some Photos about the packing and parts:

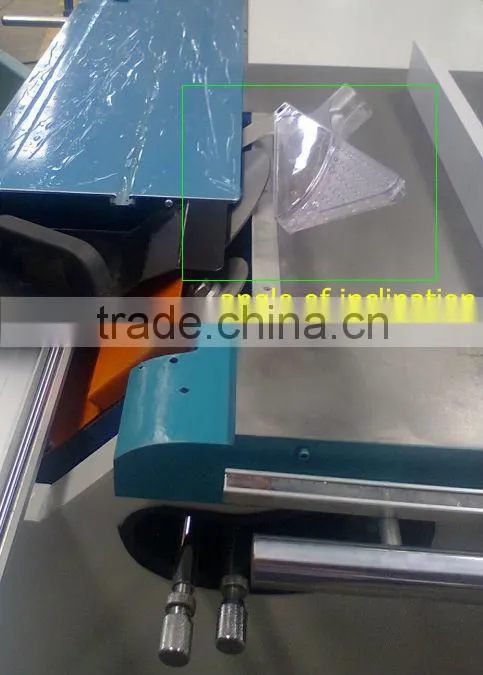

Angle of Inclination:
What is the cutting angle and its showing style?
A: Title angles of main and scoring blades can be adjusted from 0- 45 degrees. And it can be displayed by precision LED digital readout or on a dial.
Techincal specification:
Model |
MJ6130Y |
Sliding table length |
3000mm |
Max. cutting height |
80mm |
Fixed cast iron table |
1000*5570mm |
Auxiliary table 1 |
745*545mm |
Auxiliary table 2 |
745*755mm |
Saw group tilting angle |
45°-90° |
Main saw diameter |
300mm |
Main saw arbor diameter |
30mm |
Main saw speed |
4000/6000r.p.m |
Scoring saw diameter |
120mm |
Scoring saw arbor diameter |
20mm |
Scoring saw speed |
8000r.p.m |

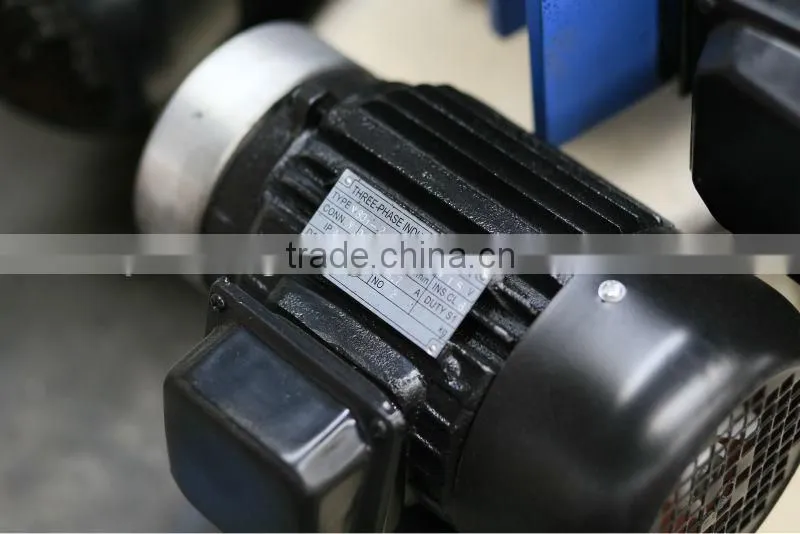

Motor Power(main saw+scoring saw) |
4+0.75kw(in option) |
Diameter of dust suction below the table |
100mm |
Net/Gross weight |
780/880kgs |

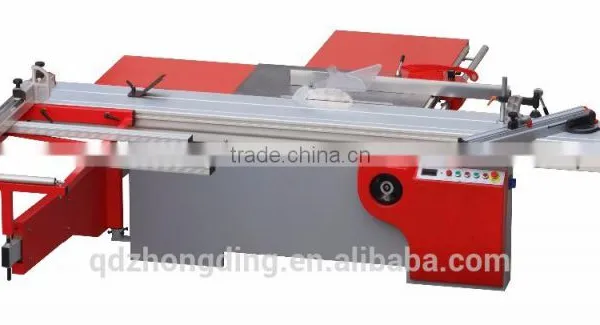

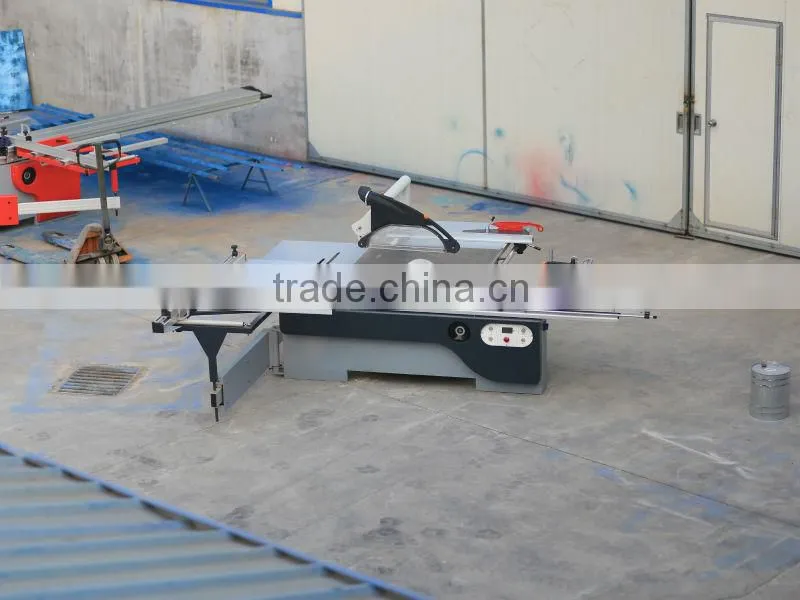

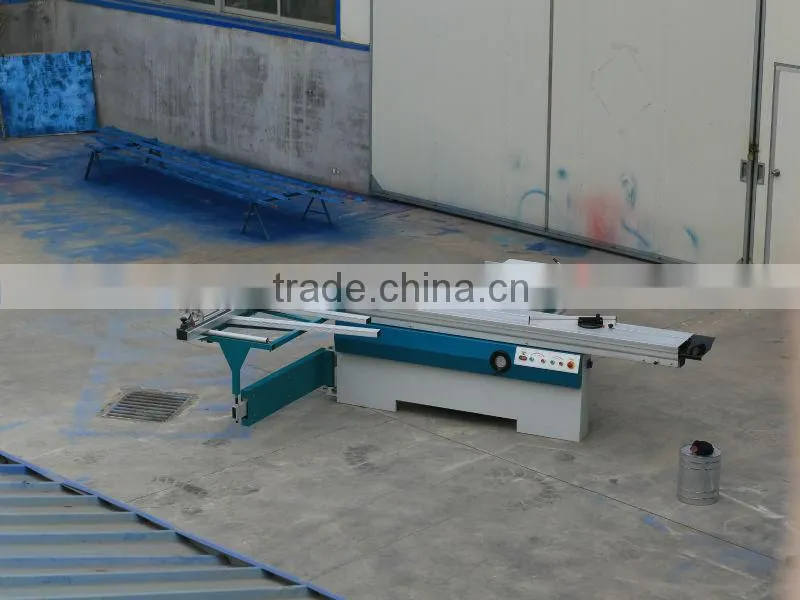

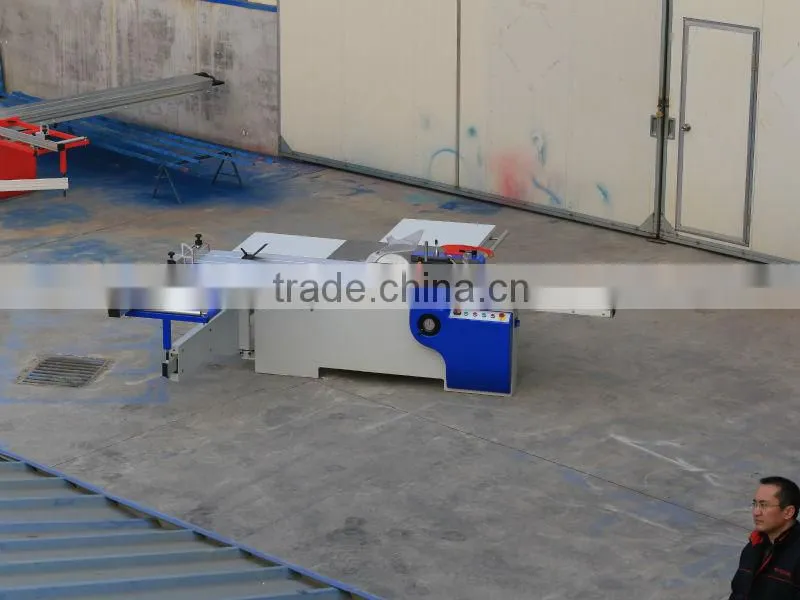

Other types of sliding table saw
| Model | MJ6115-45Y | MJ6115-90Y |
| Sliding table length | 1500mm | 1500mm |
| Max.Extent height of main saw blade | 80mm | 80mm |
| Saw group titled angle | 0-45° | 90° |
| Main diameter | 250-300mm | 250-300mm |
| Main spindle rotation speed | 4000/6000r.p.m | 4000/6000r.p.m |
| Main saw motor power | 3kw | 3kw |
| Scoring blade rpm | 8000r.p.m | 8000r.p.m |
| Scoring motor | 0.75kw | 0.75kw |
| Model | MJ6138-90Y | MJ6138-90Z |
| Sliding table length | 3800mm | 3800mm |
| Max.Extent height of main saw blade | 80mm | 80mm |
| Saw group titled angle | 90° | 90° |
| Main diameter | 250-300mm | 250-300mm |
| Main spindle rotation speed | 4000/5600r.p.m | 4000/5600r.p.m |
| Main saw motor power | 3-5.5kw | 3-5.5kw |
| Scoring blade rpm | 8000r.p.m | 8000r.p.m |
| Scoring motor | 0.75kw | 0.75kw |
| Scoring diam | 120mm | 120mm |
Other Model:
1.MJ45
2. MJ6130
3. MJ6128
I believe that you can choose the most suitable one from our products because of the high quality and good service.
Quality certificate
ISO9001 and CE security certificate
Business terms
Payment terms: TT or L./C with deposit
Delivery time : Within 30 days or negotiate
Packing :wooden case or what you want
