BCJL04B Automatic Bearing Assembly Machine

Wuxi Huiguang Precision Machinery Co., Ltd.
BCJL04B Automatic Bearing Assembly Machine thumbnail-1

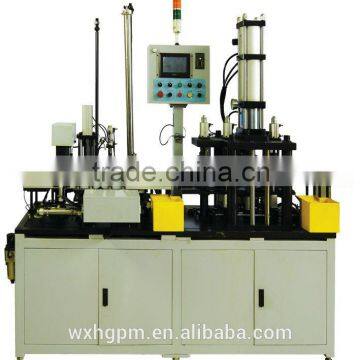

BCJL04B Automatic Bearing Assembly Machine photo-1
Negotiable MOQ: 1 Set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Place of Origin:
Jiangsu, China
Brand Name:
Huiguang
Model Number:
BCJL04B
Contact Supplier Request Quote Chat Now
Payment & Shipping
Payment Methods:
Port of Shipment:
Shanghai
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Place of Origin Jiangsu, China
Brand Name Huiguang
Model Number BCJL04B
Condition New
After-sales Service Provided Engineers available to service machinery overseas

Specifications

Standard modular design for easy maintenance.
Proprietary imaging tech for inspection.
Manufacturing, customizable.



Product Description

BCJL04B Automatic Bearing Assembly Machine

This machine can mainly complete following working procedures: auto feeding or fed by prior step → ball collection & separation → lack of ball inspection → lack of ball products NG → placing cages and aligning position → lack of rivet inspection before riveting → riveting → rivet height inspection after riveting → discharge.

** The appearance and functionality of  BCJL03B and BCJL04B are the same except the overall dimension and the workpiece size applied.

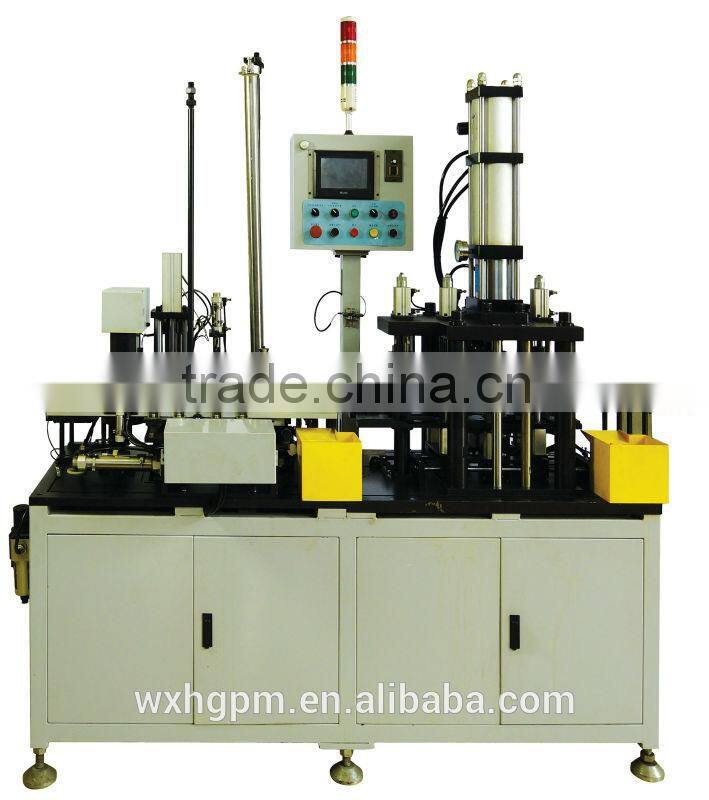

  BCJL04B Automatic Bearing Assembly Machine


Product Advantages
  1. Ball collection driven by a motor.
  2. Ball separation and collection is flexible to minimize injuries to steel balls.
  3. Unique dual-rod cage feeding structure and linkage mechanical pawl structure for cage picking.
  4. The pneumatic-hydraulic pressure cylinder can be used for riveting, with pressure and travel controllable and adjustable.
  5. Proprietary imaging technology for lack of rivets, balls and riveting defects inspection.
  6. The standard modular structure design makes tooling changing and maintenance more convenient, and the performance more stable.
  7. Security mechanism (national standard or European standard) can be customized based on requirements.

Technical parameters:



Applicable nominal ODD90-120
Efficiency≈4.5s/piece
Steel ball collecting modeMotor rotation
Steel ball separating modeneedle plug-in from bottom-up
Lack of ball inspectionOptical fiber sensor
Method of picking cagesMechanical paw rotation machinery
Riveting modeGas-hydraulic pressure cylinder
Riveting inspection precision≤0.1mm
Dimension (mm) 2500 L * 1200W * 2100H
Cylinder & Solenoid valveAirTAC, SMC, Pneulead optional, or on request
PLCOMRON, SIEMENS optional, or on request
Touch screenXinje, SIEMENS optional, or on request
Optical fiber+AmplifierSUNX / KEYENCE, or on request
Stepper motor / Servo motorYAKO, Mitsubishi optional, or on request
