Home > Products > CNC carbide turning inserts > Carbide cutting tool tungsten carbide insert

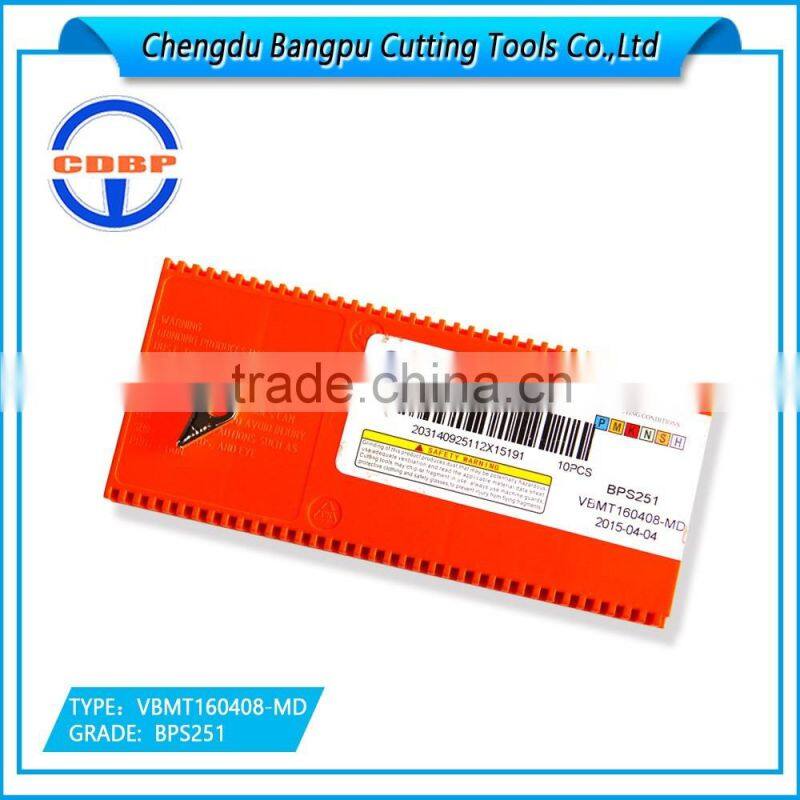

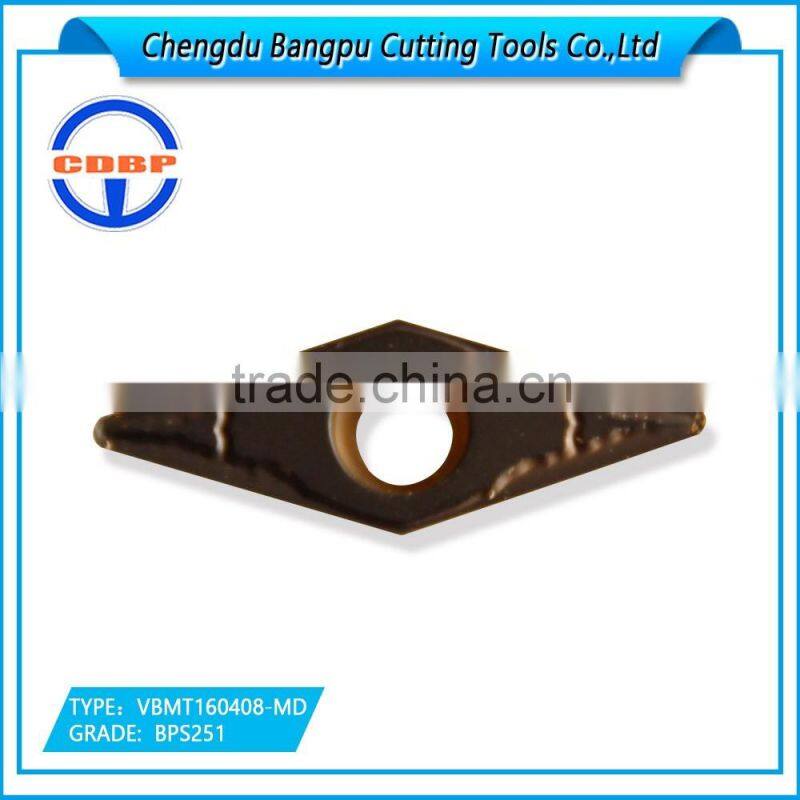

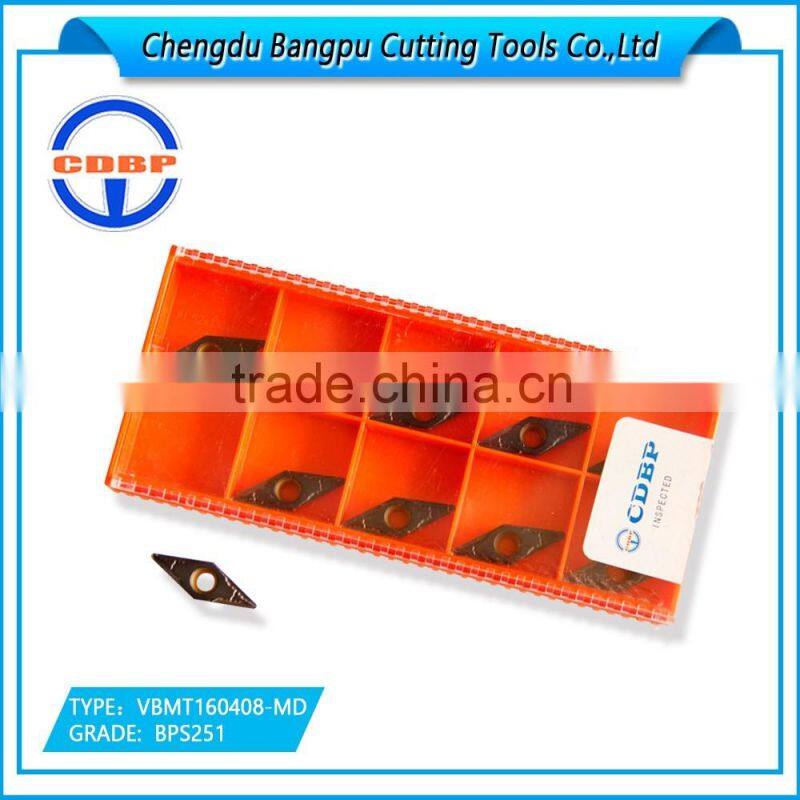

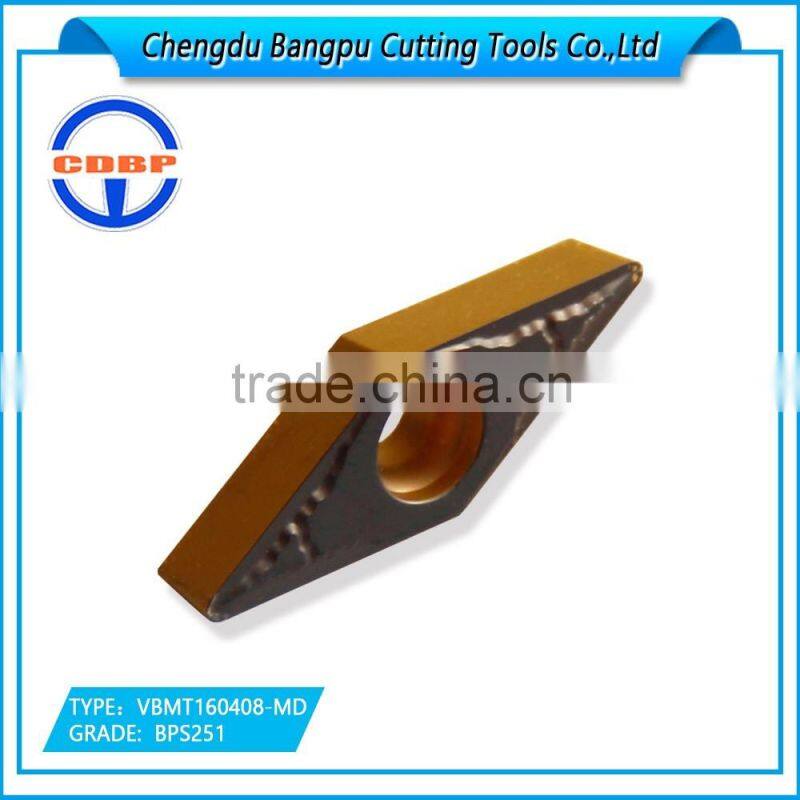

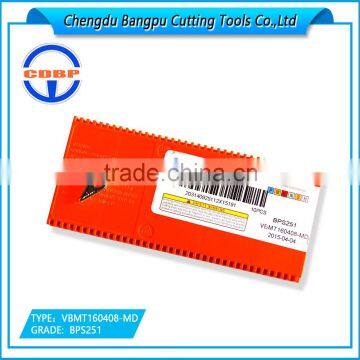

Carbide cutting tool tungsten carbide insert
USD $1 - $5
/ Piece
100 Pieces(Min.Order)
- 10000 Piece / Pieces per Month
- Chengdu Shanghai
- T/T Credit Card
You May Like
- Zy Super Hard External Turning Tool PCD Wide Edge Commutator Turning Tools
- CNC PCD PCBN Turning Milling Inserts
- sell zhuzhou tungsten carbide cutting tools
- DCMT11T304-TS Carbide Inserts Turning Inserts for Steel and Stainless Steel DCMT Shape
- Single-sided CCMT060204-SM Turning Inserts for Semi Finishing and Finishing Positive Rake Low Cutting Forces
- CNMG120404-TF Rhombic Inserts Positive Rake Angle Varies Along the Edge to Negative Prevent Chipping
Product Details
Place of Origin: | Sichuan, China | Brand Name: | CDBP | Model Number: | VBMT |
Material: | Tungsten Carbide | Usage: | Other, External Turning Tool, Turning inserts | Hardness: | HRC40-45 |
Coating: | CVD |
Product Description
Product Description
Tungsten cutting tungsten carbide insert
Carbide grades for turning | |||||||
Grade | ISO | color | recommend for application | ||||
BPC102 | K10-K20 | Black | CVD-coated cemented carbide,the hard substrate coated with a smmoth and wear-resisitant coating,can bear harsh intermittent cutting condition.Universal grade for all cast iron cutting at low to medium speed | ||||
BPC102A | K15-K25 | Black | CVD-coated cemented carbide,thick brasion resistant coating on the high intensity gradient sintered base.Machining of gray and ductile iron at low to medium cutting speed. Security in wet and dry machining | ||||
BPC132 | K15-K35 | Black | CVD-coated cemented carbide.It conbines WC-Co high strengh matrix and TiN/TiCN/AL203 thick chemical coating,especially suitable for turning of gray iron,ductile cast iron | ||||
BPS101 | P10-P20 K10-K20 | black/yellow | CVD coated carbide grade,wear-resisitance materials coated on the gradient substrate which has both good hardness,toughness.Can bear high temperature.For steel and steel castings finishing to roughing processing,Continue cutting to light interrupt cutting.Machining of gray and ductile iron at low to medium cutting speed. For hard materials continuous cutting and light interrupted cutting from finshing to roughing.Wet and dry processing | ||||
BPS251 | P15-P30 M10-M20 | black/yellow | CVD coated carbide grade,Univeral grade,suitable for steel and cast continuous cutting and interrupted cutting finishing to roughing. Grades with a wide range of application.Stainless steel continuous cutting and interrupted cutting. | ||||
BPS371 | P25-P40 | black/yellow | CVD coated carbide grade,high-strength alloy substrate with thick wear-resistant coating. Machining steel and cast steel in bad conditons. Edge line security for interrupted cutting high metal removal rate. | ||||
BPG05B | M05-M15 | Cyan-blue gray dark | With high hot hardness and good resistanceto plastic deformation. Suitable for high speed cutting and finishing process of austenitic stainless steel.quenched and carbon steel | ||||
BPG20B | M10-M30 | Cyan-blue gray dark | PVD coated micro-grain carbide.Use for a varity of stainless steel finishing at medium to low cutting speed.When need excellent edge strenght and high surface vide the perfect ride cutting.A high thermal shock resisitance.Suitable for light interrupted cuts | ||||
BPG25B | M25-M40 | Cyan-blue gray dark | PVD coated micro-grain carbide.WC-Co impact resistant cemented carbide matrix and TiALN containing SI nano coating combination,the surface has a very nano hardness,especially suitable for turtning and milling of carbon steel, stainless steel | ||||
BU810 | N01-N15 | metallic | Sub-micron grain,suitable for the continuous and interrupted finishing of non-ferrous metal | ||||
The chip breaker instruction of carbide indexable CNC turninginserts | ||||||||
FW | Mainly recommended for steel finishing turning | |||||||
Component typically:axlex,gears where good surface finish is a priority | ||||||||
MD | Mainly recommended for steel semi-finishing | |||||||
Component typically: axles,hubs,flange,gears,etc in steel | ||||||||
TM | Mainly recommended for steel semi-finishing machining | |||||||
Typical parts: Ordinary steel parts | ||||||||
RA | Mainly recommended for steel rough turning | |||||||
Component typically:axles,hubs,flange,gears,etc in steel | ||||||||
CX | Mainly recommended for Gray and nodular cast iron finish turning | |||||||
Typical parts: Ordinary part of cast iron | ||||||||
CQ | Mainly recommended for Gray and nodular cast iron semi-finishing turning machining | |||||||
Typical parts: Ordinary parts for cast iron | ||||||||
U | Mainly recommended for cast iron semi-finishing to finishing turning | |||||||
Typical parts: piece of cast iron | ||||||||
GH | Mainly recommended for Gray and nodular cast iron rough turning | |||||||
Typical parts: Parts of cast iron | ||||||||
SL | Mainly recommended for finish turning | |||||||
Typical parts: heat resistance alloy,titan alloy and other aerospace parts | ||||||||
SN | Mainly recommended for semi-finish turning | |||||||
Typical parts: heat resistance alloy,titalium alloy | ||||||||
LH | Mainly recommended for finish turning | |||||||
Typical parts: Ordinary aluminum parts |
