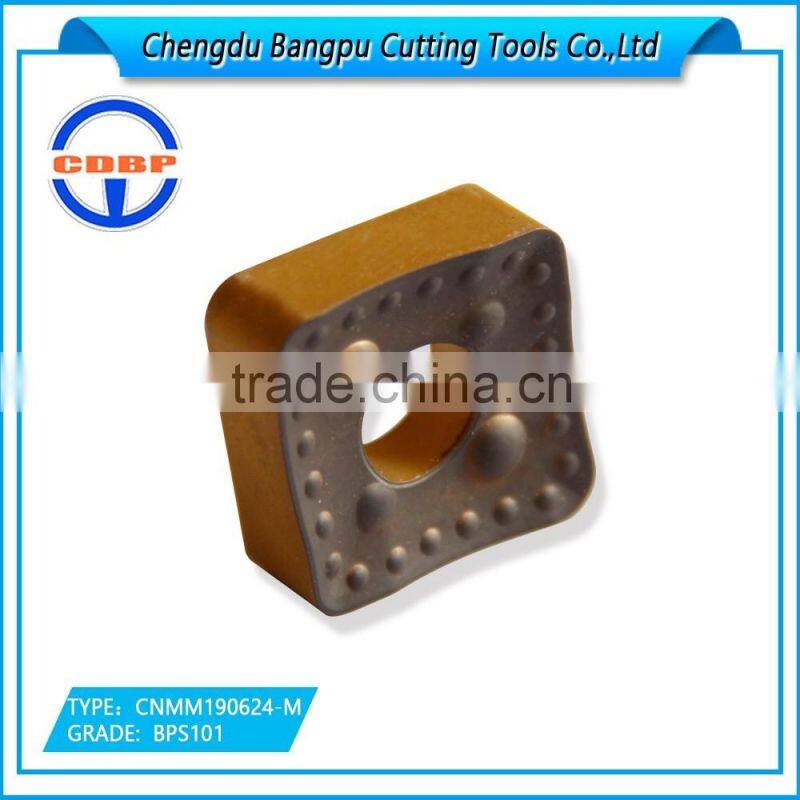

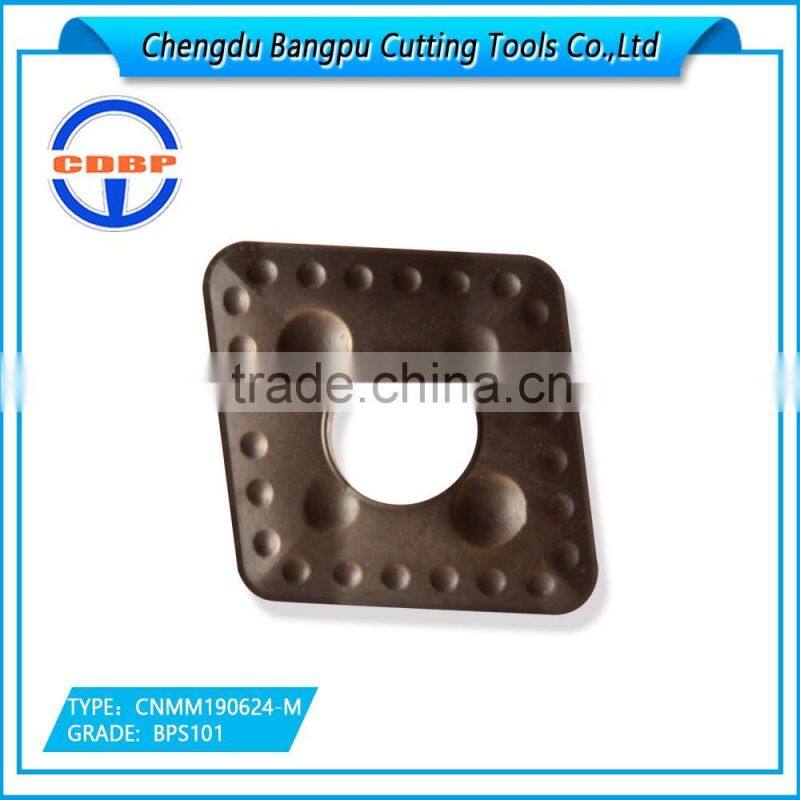

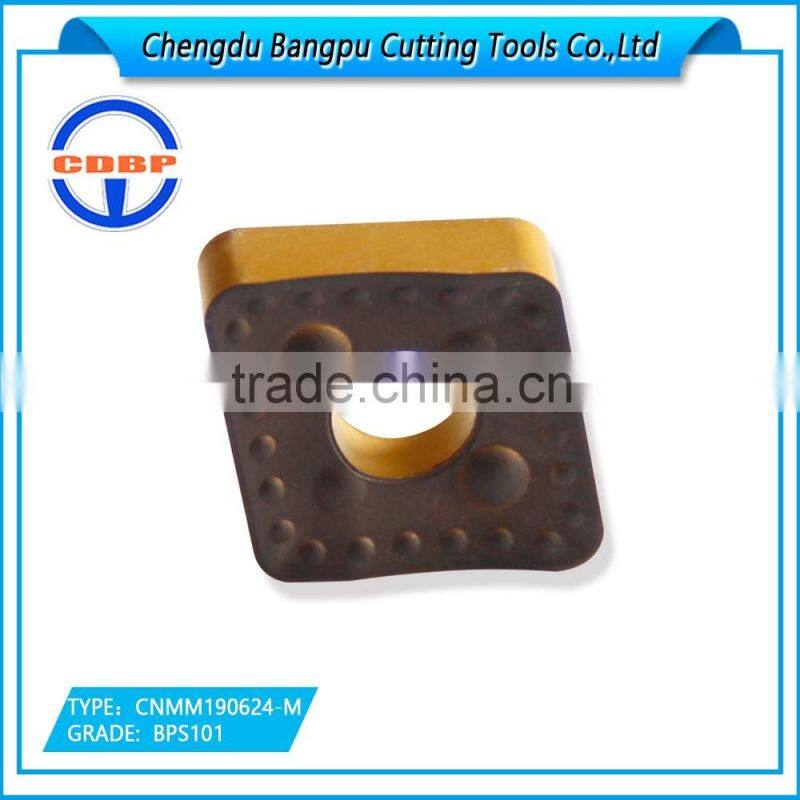

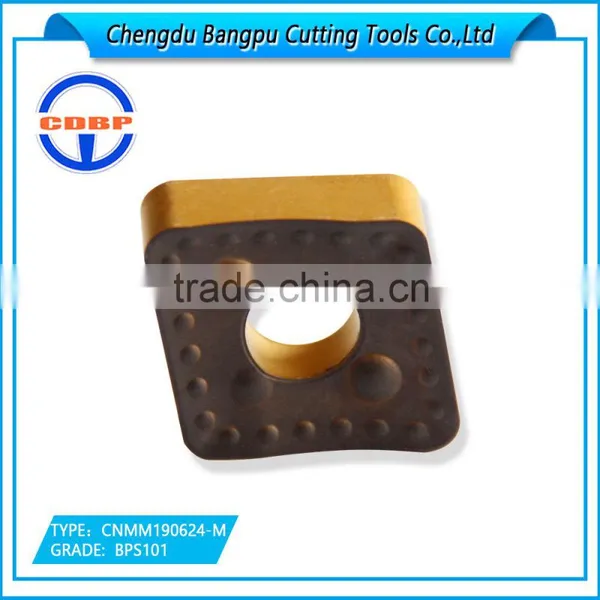

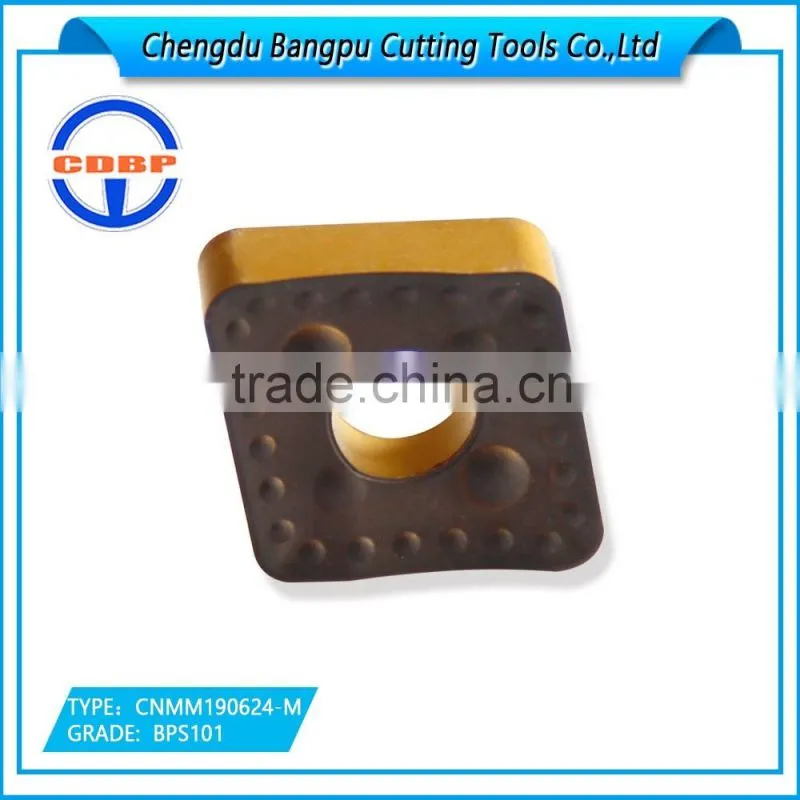

Turning inserts tungsten carbide

Name: Turning inserts tungsten carbide
Brand: CDBP
Availability: InStock

FOB Price

US$ 1 - 5 / Piece

100 Pieces(Min. Order)

Port Chengdu Shanghai
Payment TermsT/T Credit Card

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Place of Origin	Sichuan, China	Brand Name	CDBP
Model Number	CNMM	Material	Tungsten Carbide
Usage	Other, External Turning Tool, Turning inserts	Hardness	HRC40-45
Coating	CVD

Product Description

Carbide insert tungsten carbide

Carbide grades for turning
Grade	ISO	color	recommend for application
BPC102	K10-K20	Black	CVD-coated cemented carbide,the hard substrate coated with a smmoth and wear-resisitant coating,can bear harsh intermittent cutting condition.Universal grade for all cast iron cutting at low to medium speed


BPC102A	K15-K25	Black	CVD-coated cemented carbide,thick brasion resistant coating on the high intensity gradient sintered base.Machining of gray and ductile iron at low to medium cutting speed. Security in wet and dry machining


BPC132	K15-K35	Black	CVD-coated cemented carbide.It conbines WC-Co high strengh matrix and TiN/TiCN/AL203 thick chemical coating,especially suitable for turning of gray iron,ductile cast iron


BPS101	P10-P20 K10-K20	black/yellow	CVD coated carbide grade,wear-resisitance materials coated on the gradient substrate which has both good hardness,toughness.Can bear high temperature.For steel and steel castings finishing to roughing processing,Continue cutting to light interrupt cutting.Machining of gray and ductile iron at low to medium cutting speed. For hard materials continuous cutting and light interrupted cutting from finshing to roughing.Wet and dry processing




BPS251	P15-P30 M10-M20	black/yellow	CVD coated carbide grade,Univeral grade,suitable for steel and cast continuous cutting and interrupted cutting finishing to roughing. Grades with a wide range of application.Stainless steel continuous cutting and interrupted cutting.


BPS371	P25-P40	black/yellow	CVD coated carbide grade,high-strength alloy substrate with thick wear-resistant coating. Machining steel and cast steel in bad conditons. Edge line security for interrupted cutting high metal removal rate.


BPG05B	M05-M15	Cyan-blue gray dark	With high hot hardness and good resistanceto plastic deformation. Suitable for high speed cutting and finishing process of austenitic stainless steel.quenched and carbon steel


BPG20B	M10-M30	Cyan-blue gray dark	PVD coated micro-grain carbide.Use for a varity of stainless steel finishing at medium to low cutting speed.When need excellent edge strenght and high surface vide the perfect ride cutting.A high thermal shock resisitance.Suitable for light interrupted cuts



BPG25B	M25-M40	Cyan-blue gray dark	PVD coated micro-grain carbide.WC-Co impact resistant cemented carbide matrix and TiALN containing SI nano coating combination,the surface has a very nano hardness,especially suitable for turtning and milling of carbon steel, stainless steel


BU810	N01-N15	metallic	Sub-micron grain,suitable for the continuous and interrupted finishing of non-ferrous metal

The chip breaker instruction of carbide indexable CNC turninginserts
FW	Mainly recommended for steel finishing turning
	Component typically:axlex,gears where good surface finish is a priority
MD	Mainly recommended for steel semi-finishing
	Component typically: axles,hubs,flange,gears,etc in steel
TM	Mainly recommended for steel semi-finishing machining
	Typical parts: Ordinary steel parts
RA	Mainly recommended for steel rough turning
	Component typically:axles,hubs,flange,gears,etc in steel
CX	Mainly recommended for Gray and nodular cast iron finish turning
	Typical parts: Ordinary part of cast iron
CQ	Mainly recommended for Gray and nodular cast iron semi-finishing turning machining
	Typical parts: Ordinary parts for cast iron
U	Mainly recommended for cast iron semi-finishing to finishing turning
	Typical parts: piece of cast iron
GH	Mainly recommended for Gray and nodular cast iron rough turning
	Typical parts: Parts of cast iron
SL	Mainly recommended for finish turning
	Typical parts: heat resistance alloy,titan alloy and other aerospace parts
SN	Mainly recommended for semi-finish turning
	Typical parts: heat resistance alloy,titalium alloy
LH	Mainly recommended for finish turning
	Typical parts: Ordinary aluminum parts

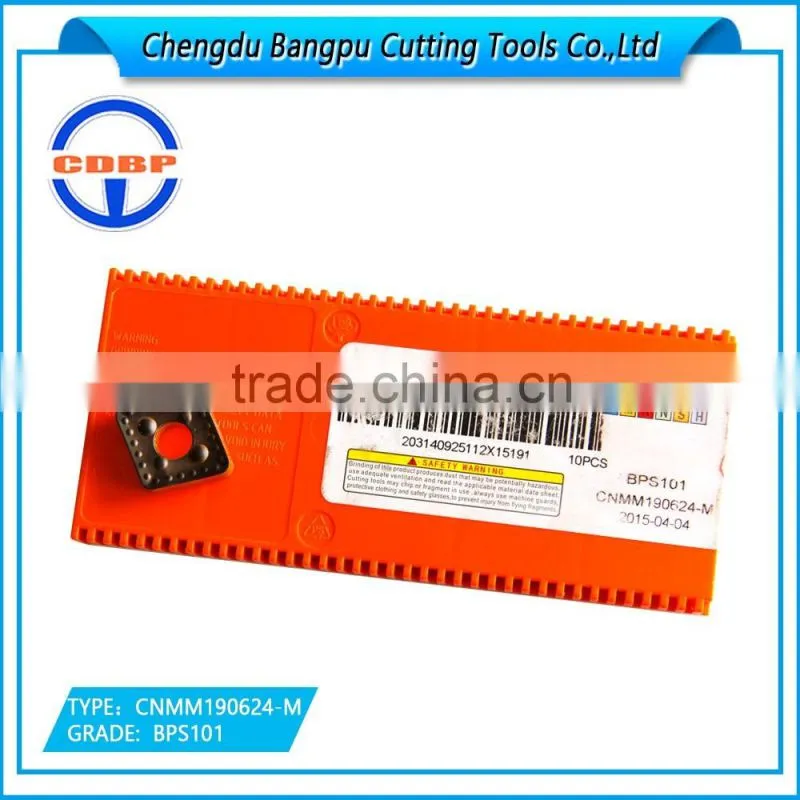

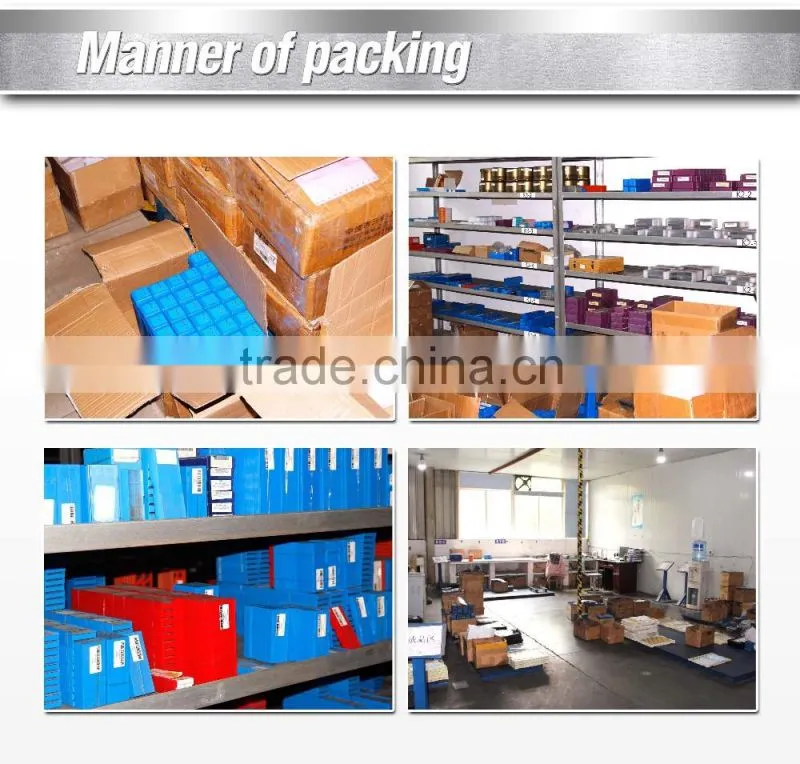

Packaging & Shipping

Contact Us

Chengdu Bangpu Cutting Tools Co., Ltd.: Contact nameSakura He
Chat Now; Phone86-28-66337597; AddressNo. 998 Baicao Road, Western District of Hi-tech Zone, Chengdu, Sichuan
