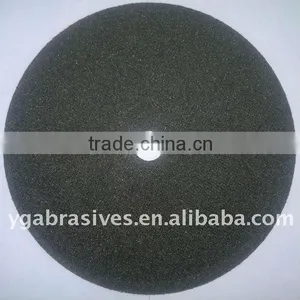

Help CenterResinoid Cutting Wheel for Soft Metal 115x1.6x22mm
Related Products
-
Reinforced Resin Cut off Disc for Metal (T41 Flat)US$ 0.09 - 0.18MOQ: 50000 Pieces -
Type 41 EL Discos De Corte for Metal and SteelUS$ 0.12 - 0.19MOQ: 10000 Pieces
-
14" Inch Cutting Disc for Stone and ConcreteUS$ 0.85 - 2.1MOQ: 2000 Pieces
-
Type 41resin Bonded Cutting Wheel for Cast SteelsUS$ 0.81 - 1.28MOQ: 2000 Pieces
-
Straight Freehand Abrasive Disc Size 4" InchUS$ 0.1 - 0.25MOQ: 6000 Pieces
Specifications
1.Brown aluminium oxide2.Thin thickness
3.Sharp,clean cutting,efficiency
4.Both side strength,safety
5.Longer service time
Factory Advantage
1.Near to raw materials region,low labor costs,so lower production cost,competitive price
2.Locate in the center of China,low and almost same transport costs to any China main port,
3.Advanced technique,
4.More than 10 years production experience,
5.Strict quality testing,good after-sale service,
6.ISO9001:2000 certificate
7.Abundant export experience
8.Accept OEM brand,
9.Small order is accepted.
10.Free samples to test quality.
Raw Materials
High hardness abrasive:ensure cutting sharp sex
High quality reinforced net:ensure the security of the cutting machine
High quality adhesive resin:ensure good durable performance
Powder phenolic resin:Good technological efficiency,a smaller forming density,greater abrasives structure.
Product:
| Size(mm) | Size(inch) | Shape | Description(A46#Q4BF) | Colour | Speed(r.p.m) | Speed(m/s) |
115x1.6x22.2 |
41/2x1/16x7/8 | flat |
1.Material:Aluminium oxide,WA, 2.Grit size 46#, 3.Hardness(1):Q 4.Bonding agent:resin 5.Reinforced net:two fiberglass nets |
Brown,black | 13300 | 80 |
(1)Generally,please chose reasonable hardness cutting wheel to reduce its attrition wear.These factors can affect the cutting wheel hardness:The amount of resin bond to join,Forming density of abrasive,Sintering temperature and sintering temperature etc.
Usage:
It mainly used for cutting metal,sofe metal,normal steel,weld seams,other solid materials,
main use in shipbuilding industry,construction,pipe manufacturing and so on .
Feature:
1.Premium quality alumina oxide raw material assure high durability,
2.Imported resin bonded makes our disc stronger,
3.Both side two reinforced fiberglass nets keep great strength,add cutting safety,
4.Sharp,give clean and accurate cutting,
5.Won''t burn the work piece''s surface
6.Cutting the workpiece without crack,excellent balance and no vibration in the operation,
7.Low noise generation and low dust production,
8.Possess superior abrasion resistance,low power consumption,durability.

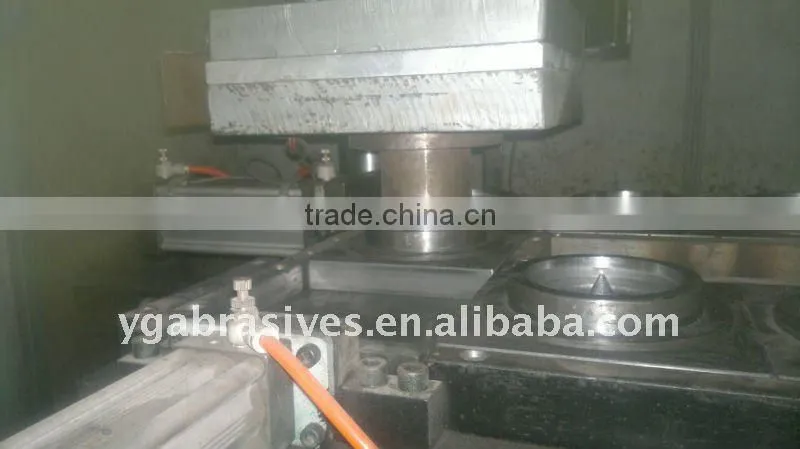

Automatic production line:ensure the stability of our products
Automatic production line:ensure the stability of our products

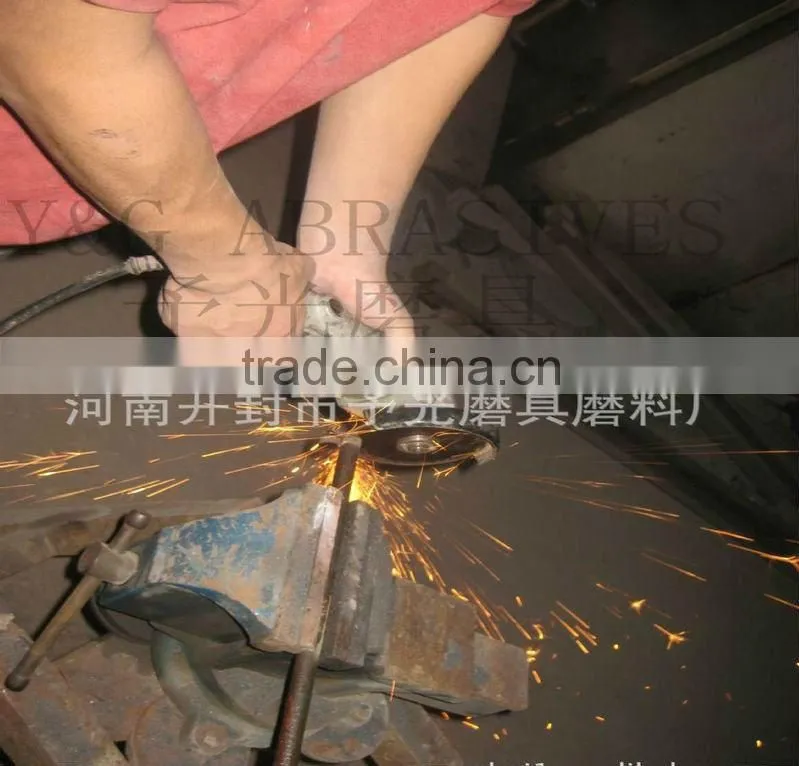

Test cutting capacity site
The cutting workpiece:D12mm 201 Stainless steel
After cutting 10 times,the diameter of the cutting wheel:94mm
After cutting 20 times,the diameter of the cutting wheel:85mm
After cutting 30 times,the diameter of the cutting wheel:70mm
test result is one piece of 105*1.2*16 mm ,cuting finished. | ||||
Size |
cutting object |
cutoff quantity |
efficiency SEC/cutoff |
quality |
Φ105×1.2×16mm |
Φ10mm SS rod |
85 |
4 |
A |
Φ105×1.2×16mm |
Φ10mm SS rod |
55 |
5 |
B |
Φ105×1.2×16mm |
Φ10mm SS rod |
27 |
7 |
C |
After cutting the workpiece
Install and use advice:
1.Do visually inspect all wheel before mounting for possible damage.
2.Do make sure operating speed of machine, does not exceed speed marked on wheel.
3.Do check mounting flanges for equal size,relieved as required and correct diameter.
4.Make sure workpiece is stable.Hold the tool so that the wheel is at a perpendicular angle to the workpiece being cut;
5.Keep a light touch, as the wheel will break under too much pressure. Do not bump the wheel to start a cut;
6.Feed the wheel through the work as fast as possible without slowing the wheel in the cutting.
Safety Recommendations:
1.Wear protective goggles
2.Wear protective gloves
3.Wear ear protectors
4.Wear dust respirators
5.Observe safety recommendations
Packing:
1.During transport,please load and unload carufully to prevent the crack and shock.Ensure packing without damage.
2.During storage,put the wheels horizontally,donot touch the floor directly.
3.Should prevent moisture and direct sunlight,keep the warehouse shady and ventilated.The warehouse's temperature can not be less than 5 degrees.
Dimension |
Dimension |
Speed |
Speed |
G.Weight |
Dimension |
Box Qty |
|
Piece/ |
Piece/ |
||||||
100x1.6x16 |
4x1/16x5/8 |
15200 |
80 |
24 |
440x230x225 |
25 |
800 |
103x1.6x6.35 |
41/8x1/16x1/4 |
14800 |
80 |
26 |
451x235x225 |
25 |
800 |
115x1.6x22.2 |
41/2x1/16x7/8 |
13300 |
80 |
16 |
500x260x188 |
25 |
400 |
125x1.6x22.2 |
5x1/16x7/8 |
12000 |
80 |
19 |
280x280x218 |
25 |
400 |
150x1.6x22.2 |
6x1/16x7/8 |
10200 |
80 |
27 |
330x330x225 |
25 |
400 |
180x1.6x22.2 |
7x1/16x7/8 |
8500 |
80 |
29 |
390*390*270 |
25 |
300 |
230x1.9x22.2 |
9x5/64x7/8 |
6600 |
80 |
19 |
490x250x190 |
25 |
100 |
