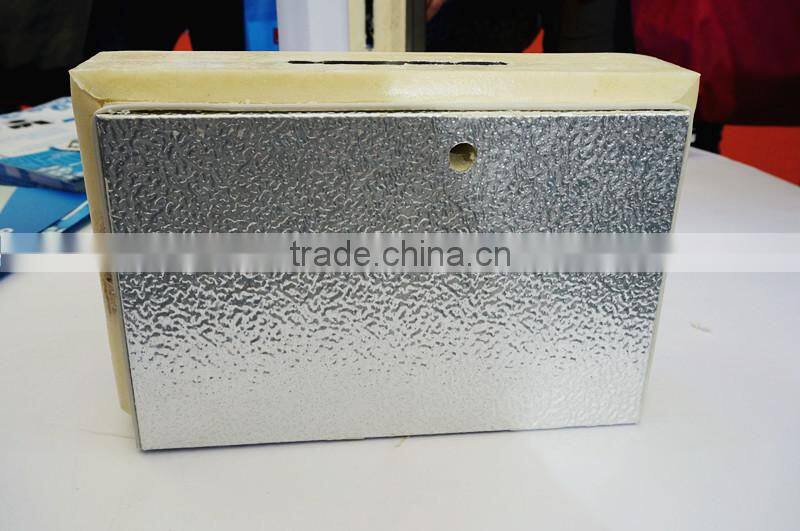

PU customized cold room panel is using metal sheet as finishing surface and polyurethane (PU) as core material.

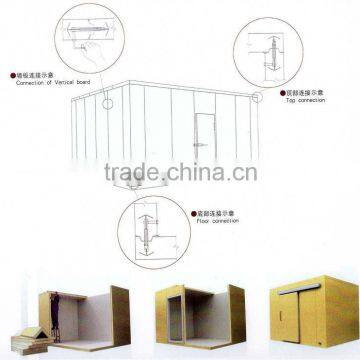

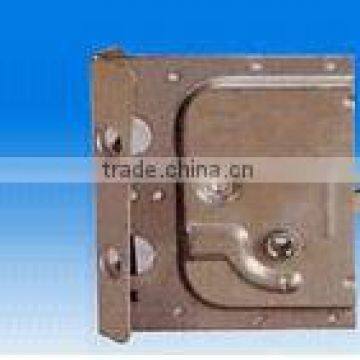

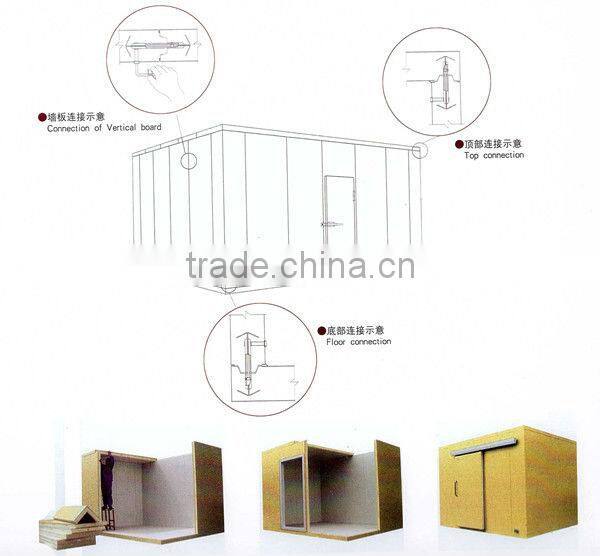

Male and Female structure with Cam locks inside.
Specification
| Width | Standard width 960mm, or customized, maximam 1200mm |
| Length | as per customers' needs, maximam 12000mm |
| Thickness |
50mm, for cold room, above 10°C 75mm, for cold room, above 0°C 100mm, for freezer room, -10~ -18 °C 120mm, for blast freezer, -18~ -20°C 150mm, for blast freezer, -20~ -25°C 200mm,for blast freezer, -25~ -30°C The most suitbale thickness will be suggested according to the size and temperature requirements. |
| PU density | 38~42kg/m3 |
| Fire retardant | B2 grade |
| Surface Metal | Color steel (Pre-painted galvanized iron steel) sheet/Stainless steel sheet/ aluminum sheet |
Various choices of surface material
Easy installation

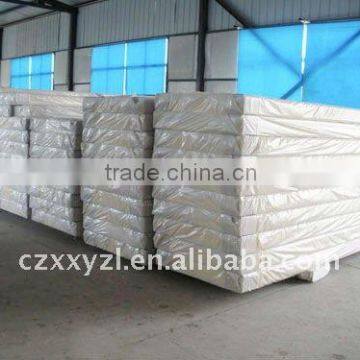

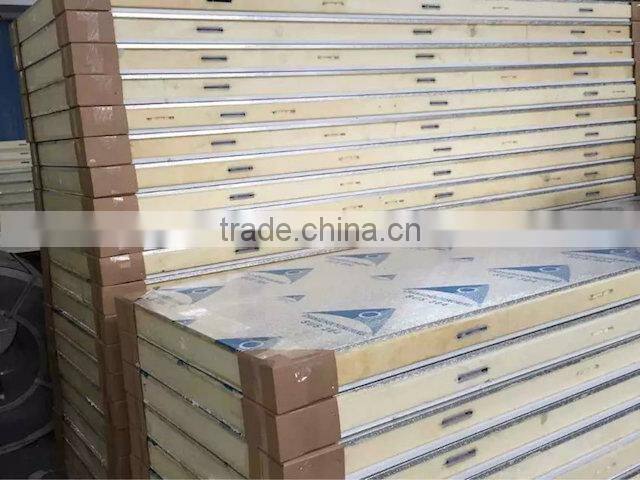

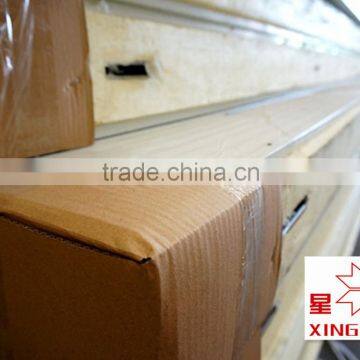

Hard board around the corners, covered with plastic film, in order to avoid any possible scratches during the transportation
New Star, New Choice
1. We're Stable
More than 20 years experience in this field
3 Production lines
500,000~600,000 SQM PU panels/year
5000~6000 pc cold room doors/year
We can provide many cold room products, such as PU sandwich panels, swing doors, sliding doors, refrigeration units, evaporators, controllers, lights, and other accessories.
2. We're Reliable
3. We're Professional
Professional sales, engineers, installation team, provide the best service.
Feel free to contact us for any questions regarding the product!
