134MHz WIFI Android RFID Reader

Features:

brand   :         STABLE

Product model:     RFID-W60C

Frequency:        13.56MHZ

Support Protocol:   ISO14443 Type A

Bluetooth Version:  V2.0+EDR

Power:            Class II

Bluetooth Status:    As a slave device

Read mode:        Automatic detection  or through the scan key

Led instruction: Charging : Green led on

                 Charge finished: Green led off

                 Battery low power: Red led flashing

                 Bluetooth:  Not connected,Blue led flashing fast;

                             Connected, Blue led on.

                             Standby: blue led flashing slowly.

Buzzer : If read tag is successful,then  produce  a "Di".

          When the information is full,then alway "Di".

Other interface: MINI USB, use to charge or update software,or upload .

     Supply:  3.7V/800mAh Li-Polymer battery.

     Charge mode: charge chip inside, and  to prevent battery

                   overcharge ,over discharge.

     Local storage: Can store more than 3000 UID records.

     Date/Clock function: To facilitate record-keeping at the same time,

                   save the current record time/date;and when the main

                    power failure,the clock continues to run.

u     Technical Parameters

u     Method to use

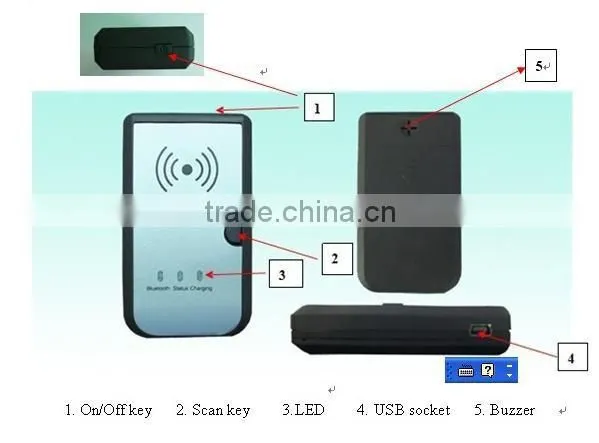

     Press the "On/Off key" is about 3~5 seconds, can be switch on,When the host and Bluetooth reader pairing(default password:0000)and after a successful connection, if the machine is set in"the key trigger mode".press the "scan key",can be induced within the region of the card is read.the host then displays the tag's UID and the date/time information; if the machine is set in "automatic detection mode",it can automatically obtain the sensing area within the tag information.

     in addition ,provided on the tag sector read,write operation.

u     Application

      .Application of alcohol traceability

      .Equipment patrol system.
