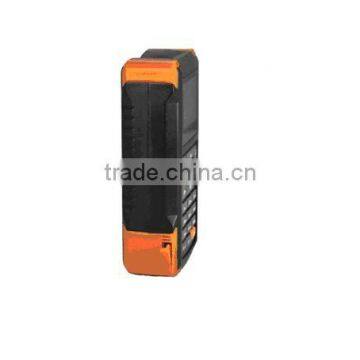

Help CenterStockcount Handheld
Related Products
Features:
nSIMPLE
Distinct function area for fast switch and straightforward operation
nSAFE
Supports real-time, storage and batch transmission
nWIRELESS
Adopts mainstream wireless and storage technology, free from cables
nCAMPACT
Cell phone size, easy to carry with comfortable feel
Radio Specifications: (optional Bluetooth or 433MHz)
BLUETOOTH |
|
Frequency |
ISM band,2.400~2.483MHz |
Rate of Transmission |
2Mbps |
Output Power |
Bluetooth Class2,3dBm |
Regulatory |
Bluetooth 2.1 compliance |
Transmission Coverage |
10M visibility range (Max.) |
Antenna |
Integrated PCB |
433MHz |
|
Frequency |
ISM band,433MHz |
modulation |
GFSK |
Rate of Transmission |
50Kbps |
Output Power |
20dBm (max) |
Transmission Coverage |
300M visibility range(Max.) |
Antenna |
Integrated PCB |
Performance Characteristics:
Light Source |
650nm Laser Diode |
Scan Pattern |
Single line |
Scan Rate |
45±2 /sec |
Scan Precision |
4mil |
Scan Width |
20mm@window,220mm@200mm |
Depth of Field |
0~500mm |
Roll(Till) |
30° |
Pitch |
65° |
Skew(Yaw) |
55° |
Resolution |
30% minimum reflectance |
Operating Mode |
Continuous / itemized scanning |
Error Rate |
1 million-to-one |
Indicator |
beeper,LCD |
Decode Capability |
EAN-8,EAN-13,UPC-A,UPC-E,Code 39,Code 93,Code 128,EAN128,Codaber,Industoal 2 of 5,Interleave 2 of 5,Matrix 2 of 5,MSI… |
Interfaces supported |
Mini USB receiver,optional RS232 or PS2 |
Electrical Parameters:
Receiver Voltage |
DC5V |
Receiver Current |
120mA |
Battery |
Rechargeable lithium ion battery (3.7V ,1700mAh) |
Charging Indicator |
LCD |
Stockcount Working current |
150mA |
Stockcount Standby Current |
50mA |
Laser Safety |
national classII regulatory |
EMC |
CE & FCC DOC compliance |
Physical Characteristics:
Memory |
4M |
keypad |
17 keys |
Stockcount Dimensions |
102mm×46mm×28mm |
Material |
ABS + silicon |
User Environment:
Operating Temperature |
0℃~45℃ |
Storage Temperature |
-20℃~60℃ |
Humidity |
5%~95% (non-condensing) |
Ambient Light Immunity |
Max.5,000 Lux(fluorescent) |
