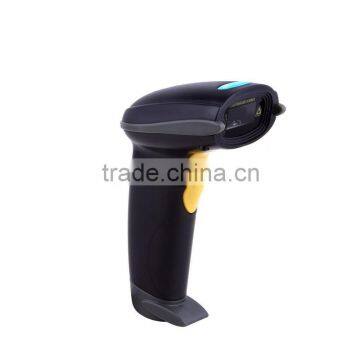

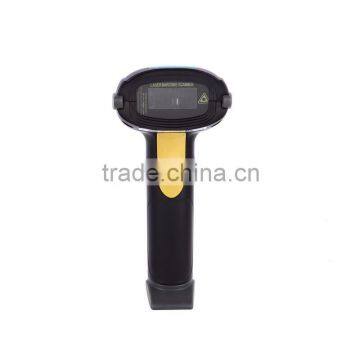

1D Laser Barcode Reader Scanner

US$ 23 - 25 MOQ: 1 Piece

Key Specifications

Place of Origin:

China

Brand Name:

Max

Model Number:

BS-300

Shenzhen Max Electronic Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

FOB Shenzhen

Delivery Detail:

Delivery time depends on order quantity.

Place of Origin China

Brand Name Max

Model Number BS-300

Specifications

1:Barcode Scanner
2: The design is new and brief, Light Source:Visible (650-670mm)

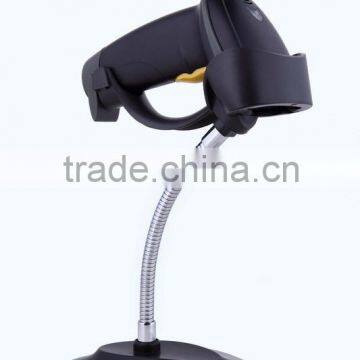

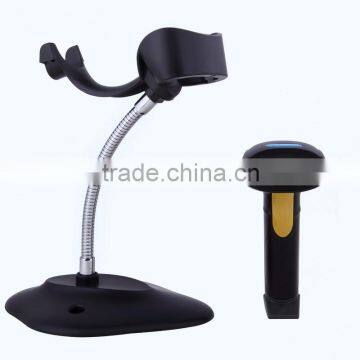

3: Use Method:Hand-held or with stand

Antiknock design:withstand 1.5M drops

Error rate less than 1/5million

Convenient and flexible automatic induction function

Supporting the RS232,PS2 and USB interface

Service life or button reaches up to 50 million times

Support multiple languages (English,French,German)

Full indpendent intellectual property rights

BS-1809 Technical Specifications

PERFORMANCE PARAMETER
Light Source	Visible Laser Diode 650nm
Scan Pattern	Single Scan
Scan Rate	100 times/second
Scan Precision	0.075-0.10mm(PCS 0.9)
Scan Width	30mm @ scan window
Scan Depth of field	0-270mm
Decode Capability	EAN-8,EAN-13,UPC-A,UPC-E,Code 39,Code 93,Code 128,EAN128,Codaber,Industoal 2 of 5,Interleave 2 of 5,Matrix 2 of 5,MSI, Chinese postcode etc.
Tilt	30°
Elevation Angle	75°
Deflection Angle	65°
Support Inferface	RS232,PS2 and USB
Print Contrast	30% UPC/EAN 100%
Mention Pattern	Buzzer,Indicator
Scan Mode	Automatic
MECHANICAL PARAMETER
Size	LWH:167mm70mm85.5
Weight	138.6g
Material	ABS+TPU
Cable	Standard 2M straight
ENVIRONMENTAL PARAMETER
Operating Temperature	0°C to 55°C
Storage Temperature	-20°C to 70°C
Humidity	5%to75% relative humidity,non-condensing
Light levels	Daylight,5000Lux
Shock	Designed to withstand 1.5M drops
ELECTRICAL PARAMETER
Voltage	5Volts
Operating Current	60mA
Static Current	36mA
Laser Class	Meet the Grade II National Criteria for Laser Safety
EMC	CE & FCC DOC compliance
