Wood Chipper BX92S
Rotor
At the heart of the Wallenstein BX Chipper is an oversize heavy duty rotor and reversible chipping blades. The large diameter rotor has a faster tip speed for improved chipping action and the heavy gauge steel keeps your momentum to power through 6” diameter tree trunks.
Blades
The reversible blades are precision cut tool steel and hardened, keeping a sharp cutting edge and maximizing the performance of the chipper.
Air Vents
Blowing force is maximized with air intake vents on the side of the chipper. Air enters through the vents and powers the chips out the chute up to 20 feet.
Twig Breaker Blower Paddles
Behind the blades are blower paddles with integrated twig breakers designed for greater output force and smaller chips exiting the machine. This provides more consistent chip size and allows you to propel the chips further.
Adjustable Chute
Easily control where you want the chips with the double adjustable Exit Chute. The chute swivels 360 degrees and the top deflector adjusts the distance.
Self-feeding Hopper
The self-feed hopper is designed to angle the brush against the rotor and blades, pulling the branches into the chipper.

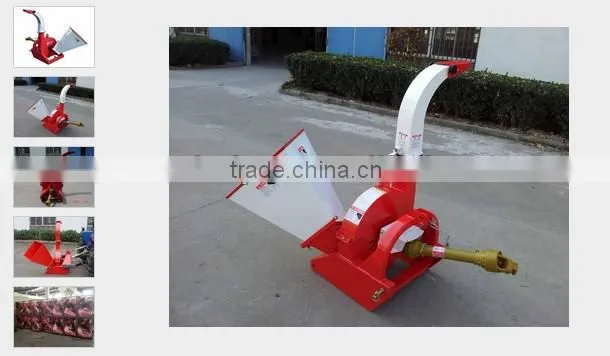

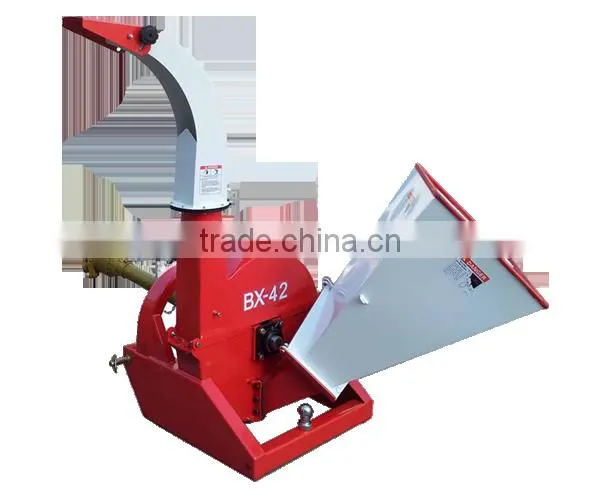

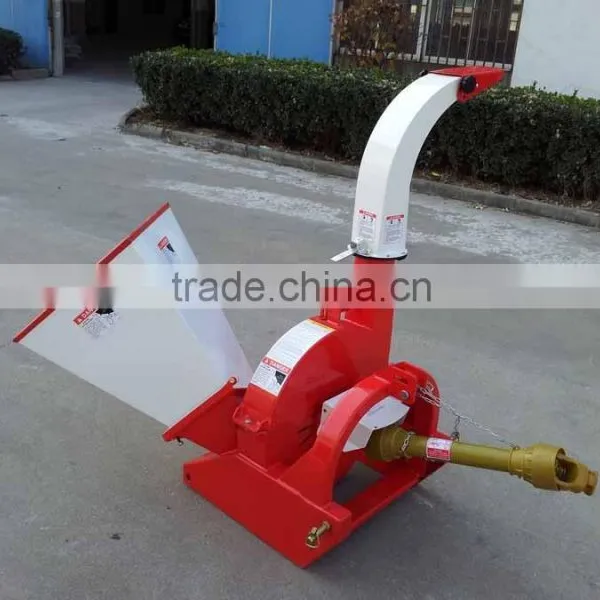

BX42
| Model | BX42 |
| Chipper Capacity | 100mm/ 4'' |
| Chipper Housing Opening | 4''x10'' |
| No. of Knives | 4 |
| Rotor Size | 25'' |
| Feeding System Feed | Self Feed |
| Hopper Folded | 40''Lx42''Wx60''H |
| Hopper Opening | 20''x20'' |
| Mounting System | 3 Point Hitch |
| Discharge Hood Rotation | 360° |
| Discharge Hood Height | 60'' |
| Structure Weight | 195kg |
| Tractor HP | 18-30hp |

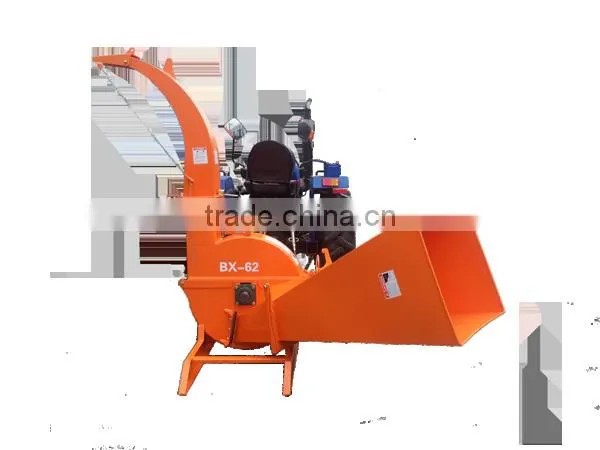

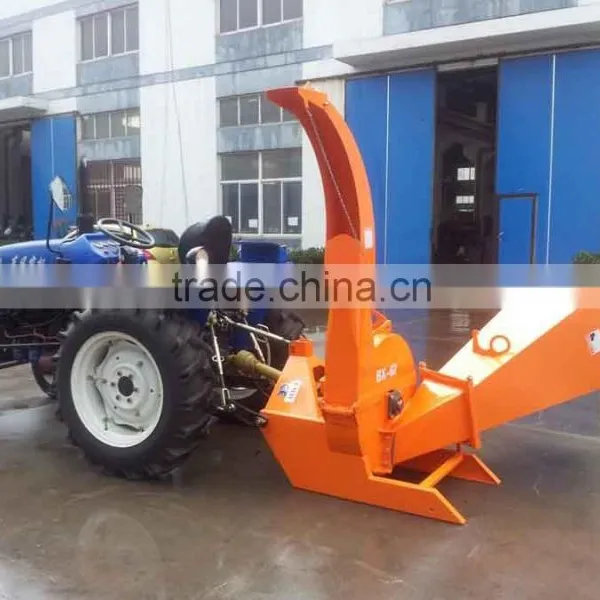

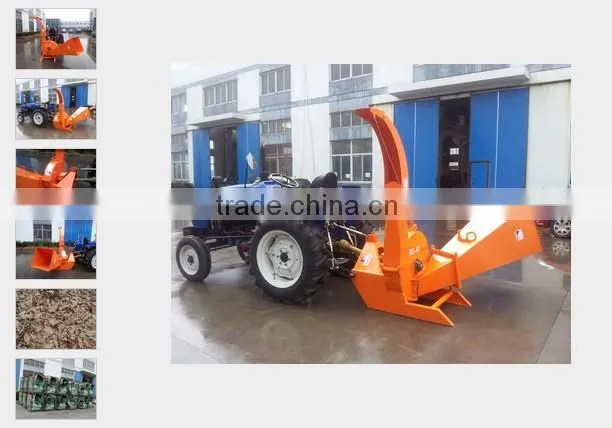

BX62
| Model | BX62 |
| Chipper Capacity | 150mm/ 6'' |
| Chipper Housing Opening | 6.5''x12'' |
| No. of Knives | 4 |
| Rotor Size | 30'' |
| Feeding System Feed | Self Feed |
| Hopper Folded | 50''Lx52"Wx74''H |
| Hopper Opening | 25''x25'' |
| Mounting System | 3 Point Hitch |
| Discharge Hood Rotation | 360° |
| Discharge Hood Height | 74'' |
| Structure Weight | 350kg |
| Tractor HP | 30-100hp |

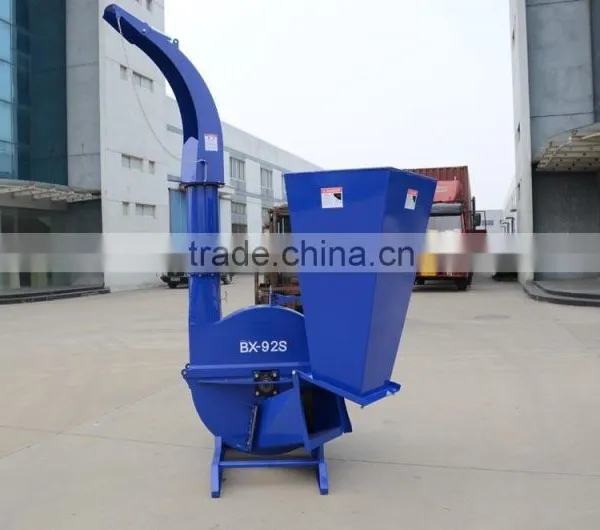

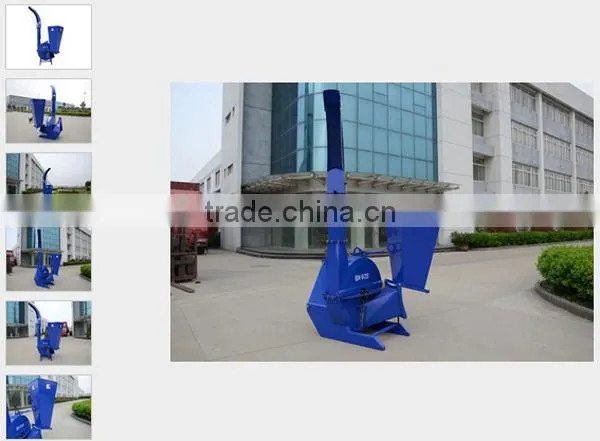

BX92
| Model | BX92 |
| Chipper Capacity | 250mm/ 10'' |
| Chipper Housing Opening | 10.5''x14'' |
| No. of Knives | 4 |
| Rotor Size | 36'' |
| Feeding System Feed | Self Feed |
| Hopper Folded | 68''Lx64''Wx88''H |
| Hopper Opening | 25''x25'' |
| Mounting System | 3 Point Hitch |
| Discharge Hood Rotation | 360° |
| Discharge Hood Height | 84'' |
| Structure Weight | 527kg |
| Tractor HP | 60-100hp |
2. Product show
BX42
BX62
BX92
4. Factory show
5. Exhibition pictures
Welcome to contact us for more details!!!
