B89 Powered Range Radio Control Tx Rx For DJI Flame Wheel F330 ARF Kit

Shenzhen Aoweishi Technology Co., Ltd.
B89 Powered Range Radio Control Tx Rx For DJI Flame Wheel F330 ARF Kit thumbnail-1
B89 Powered Range Radio Control Tx Rx For DJI Flame Wheel F330 ARF Kit photo-1
US$ 1 - 87 MOQ: 1 Set
Key Specifications
Get Latest Price
Brand Name:
Flysight
Model Number:
TX5804+RC306 DJI Flame
Use:
Universal, DJI Flame Wheel F330 ARF Kit
Contact Supplier Request Quote Chat Now
Payment & Shipping
Payment Methods:
Port of Shipment:
Shenzhen
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Brand Name Flysight
Model Number TX5804+RC306 DJI Flame
Place of Origin Guangdong, China

Specifications

B89 Powered Range Radio Control Tx Rx For DJI Flame Wheel F330 ARF Kit
For DJI
Radio control
Dji flame
TX RX

Powered Range Radio Control Tx Rx For DJI Flame Wheel F330 ARF Kit



B89 Powered Range Radio Control Tx Rx For DJI Flame Wheel F330 ARF Kit



B89 Powered Range Radio Control Tx Rx For DJI Flame Wheel F330 ARF Kit

1.Very light and ultra mini size
2. The mini but powerful 5.8G 400mw transmitter would make your fly to 4-5 km away with only the stock antenna, advanced build-in regulator offers this transmitter very wide power input range.

3. Universal Hobbies Radio Control Transmitter With Receiver For The Flying Toys Models  is just light, compact and powerful, a very good choice for 5.8G middle range FPV.
This transmitter is compatible with all our 5.8G VRX like RC305, RC805 , AIO goggles and 5.8G DVR DV01.



Specificaitons:

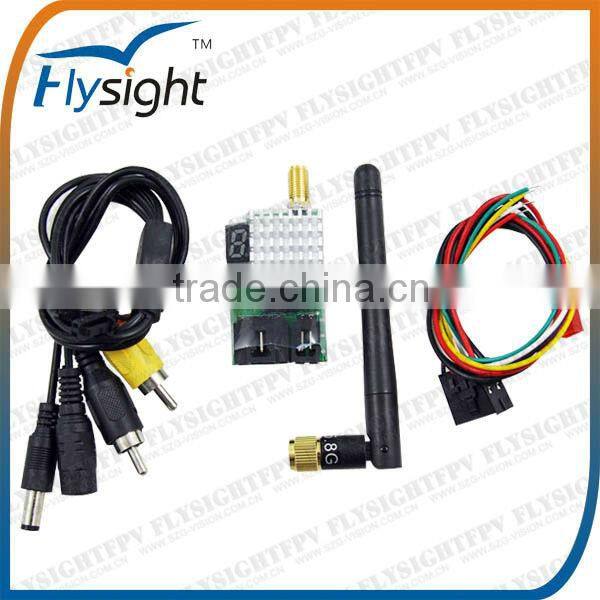

Transmitter(TX5804):

Transmitter frequency5645-5945MHz;8CH
Transmitting Power400mW/27dBm
Transmitting distance>4000m-5000m(open area)
Frequency controlbuilt-in frequency and phase lock loop
AV inputanalog AV signal input
ANT connectorSMA(inside the needle)
power supply 6.5-15 V
Current supply280mA
Size57*27.2*16mm
Net weight16g(no cable and antenna)



Remark:                                       The transmitter's power input is ranging from 7-12V,however the voltage outptu from the TX for the camera us 0.5V,lower than the input power.It's suggested to use 3S lipo 11.1V battery.
Note:                                             antennas must be attched before powering on.



B89 Powered Range Radio Control Tx Rx For DJI Flame Wheel F330 ARF Kit

  B89 Powered Range Radio Control Tx Rx For DJI Flame Wheel F330 ARF KitB89 Powered Range Radio Control Tx Rx For DJI Flame Wheel F330 ARF Kit

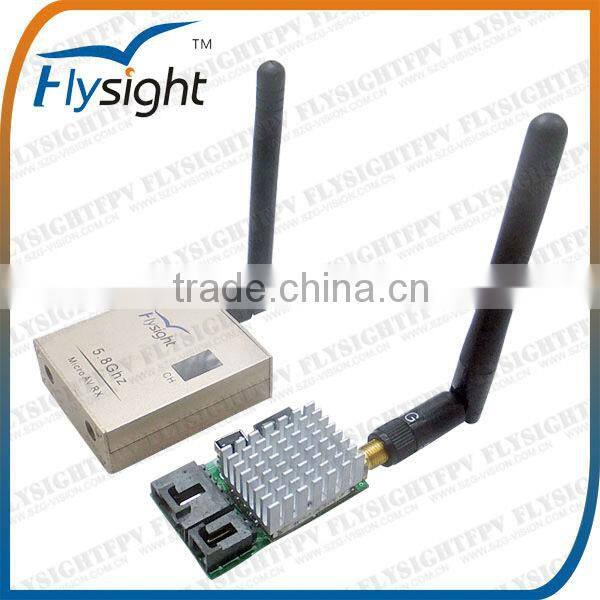

Receiver(RC306):

Receiving frequency5665-5945MHz;8CH
Receiving sensitivity-90dBm
Frequency controlbuilt-in frequency and phase lock loop
Double lines AV outputanalog AV signal output
Antenna connectorSMA(Inside the needle)
Power supply voltage8-12V
Supply current100mA
Dimension61*52*13mm  (aluminium alloy extrusion profiles)



Remark:                                    The receiver's power input is ranging from 8-12V,dual AV output is supported
Note:                                          the av cable uses 3.5mm plug on the receiver RC305



Note:antennas must be attched before powering on.


 B89 Powered Range Radio Control Tx Rx For DJI Flame Wheel F330 ARF KitB89 Powered Range Radio Control Tx Rx For DJI Flame Wheel F330 ARF KitB89 Powered Range Radio Control Tx Rx For DJI Flame Wheel F330 ARF KitB89 Powered Range Radio Control Tx Rx For DJI Flame Wheel F330 ARF Kit



Application reference:



B89 Powered Range Radio Control Tx Rx For DJI Flame Wheel F330 ARF KitB89 Powered Range Radio Control Tx Rx For DJI Flame Wheel F330 ARF Kit





B89 Powered Range Radio Control Tx Rx For DJI Flame Wheel F330 ARF Kitof our company

We are manufacturing and exporting of  5.8Ghz FPV transmitter/receiver, FPV transmitter receiver, monitors/baby monitors , video goggles,mini camera, hd 1080p camera , waterproof sport camera, gopro cable and antenna, and so on for many years with customers from all over the world. our  products with high quality and lower price.



B89 Powered Range Radio Control Tx Rx For DJI Flame Wheel F330 ARF Kit

  • Provide the best service as alibaba Gold Supplier.
  • OEM&ODM accepted.
  • Top Quality Parts and 1 year Warranties.
  • Sufficient Stock and Fast Delivery. And all our product will be strictly tested before delivery
  •  Price Promise – factory price and the lowest shipping cost.
  • The Best Customer Service – 100% of best satisfaction from customers from all over the world.



B89 Powered Range Radio Control Tx Rx For DJI Flame Wheel F330 ARF Kit

  • We can shipping all over the world by DHL , TNT ,UPS , FedEx ,By Air and by Sea . The packaging is very safe and strong. If you have any special needs please notify me.

B89 Powered Range Radio Control Tx Rx For DJI Flame Wheel F330 ARF Kit to contact us for more details about Pricing, Packing, Shipping and Discount!

Or If you have any other questions please feel free to contact with me in any time.
