Help CenterC653 Flysight Black Pearl Diversity 7'' Monitor RC801 With Built-in 5.8g av Receiver and Battery for Dji Phantom
Related Products
-
C608 7 Inch FPV no Blue Screen LCD Monitor With Hdmi Input Flysight Black Pearl RC801 Diversity Monitor With 5.8Ghz ReceiverUS$ 1 - 189MOQ: 1 Set -
C544 Flysight Wholesale 7 Inch Hdmi Screen Diversity Receiver 5.8g Fpv Black Pearl Monitor RC801 for Dji Phantom and UAVUS$ 1 - 189MOQ: 1 Set
-
C537 Wireless Remote Control 5.8Ghz 32CH 7 Inch HDMI Diversity Receiver Dji Phantom Black Pearl Monitor RC801 From FlysightUS$ 1 - 189MOQ: 1 Set
-
C471 5.8GHz Diversity Receiver 7 Inch LCD Monitor RC801 Black Pearl for Dji Phantom QuadcopterUS$ 1 - 159MOQ: 1 Set
-
C430 Flysight Wholesale FPV 7 Inch Monitor Diversity Receiver RC801 Black Pearl HDMI Screen for Dji Dji Phantom 2US$ 1 - 159MOQ: 1 Set
Specifications
1.Adjustable display direction2.Image ZOOM function
3.Resolution: 1024*600
4.Contrast: 700:1

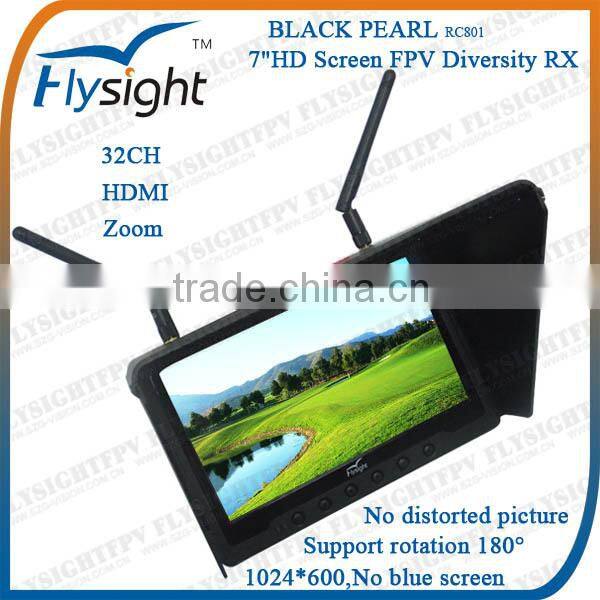

C653 Flysight black pearl diversity 7'' monitor RC801 with built-in 5.8g av receiver and battery for dji phantom
All-in-one fpv monitor category with the Black Pearl 7" diversity monitor.

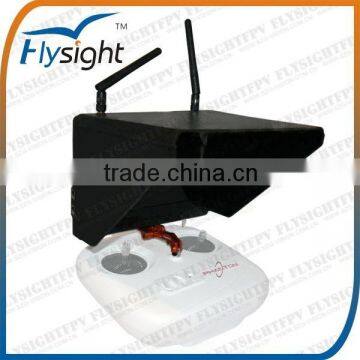

This little gem features a number of upgrades including a built-in tripod mounting adapter
(for standard camera screws), a fitted sunshade, built-in 5.8GHz receivers with diversity functionality, and a very bright screen that's easy to see in direct sunlight. The Black Pearl operates on 7-28 volts and includes 3S Lipo Battery.
With integrated video and dc outputs, you can also run a pair of video goggles right from
the monitor
This 7” fpv monitor with 5.8ghz diversity receiver 32ch supports Arewave and NexwaveRF.
It can be compable with all 5.8ghz transmitters 32ch, such as Fatshark, Boscam, Immersion RC. It will be not affected by 2.4ghz radio controller.
Features
*High resolution 1024*600, Anti reflective matte screen
*No "blue screen" problem when the signal gets weak
*It is very bright in daylight 400cd / m²
*build-in two 5.8GHz video receivers and a diversity system that will
automatically select the best video signal
*It is equipped with an efficient rigid sunhood
*photo screw to clamp it on standard system (1 /4 " 20 threads per inch WBS )
*It has video outputs and Dc output to connect and power other equipmen
*A composite video input will allow you to display external sources
*HDMI video input
*Power 7 - 28V and a DC output for powering a pair of video googles
or other equipment (Dcout = Dc in, MAX 1A)
*Channel selection via button (no more micro switch !)
*Built in speakers to hear the sound ( from your video Tx or video input sources )
*Support image rotation 180 degree
Specification
|
Display Screen |
Diagonal |
7 inch |
Resolution |
1024X600 |
|
Contrast |
700:1 |
|
Luminance |
400cd/m2 |
|
|
Wireless Receiving |
Sensitivity |
-90dBm±1dBm |
Channel |
32Channel ( 4 Band X 8 Channel ) |
|
Antenna Port |
2 X SMA,50ohm |
|
Diversity receiving |
Antenna diversity |
|
TV System |
NTSC/PAL |
|
Video output level |
1.0Vp-p Typ,75ohm |
|
Audio output level |
1.0Vp-p Typ,10Kohm |
|
AV Port |
RX1 AV OUT |
Video,Audio output |
RX2 AV OUT |
Video,Audio output |
|
DIV AV OUT |
Diversity receiving, Video,Audio output |
|
AV IN |
Video,Stereo Audio input |
|
HDMI IN(A Type) |
Support HDMI 1.3 Digital Input, Support HDMI Audio in |
|
Built-in Microphone |
8Ω/1W X 2 |
|
Power Supply |
DC IN |
7~28V/ 2A |
DC OUT |
Output Voltage:DC IN or battery voltage Output Current:1A |
|
Battery |
11.1V/1000mAh(3 series LiPo cells) |
|
Consumption |
12V input:7.8W |
|
Dimensions |
Main Body |
183X126X19.5mm(not include sun shadow) |
Battery |
105X87.5X6.7 mm(not include prominent part) |
|
Weight |
Main body |
350g |
Battery |
95g |

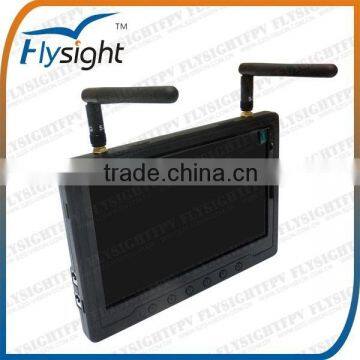

Product Image

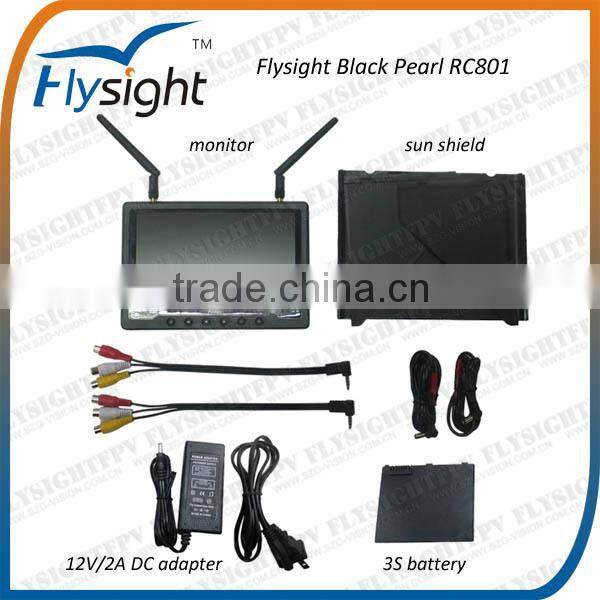

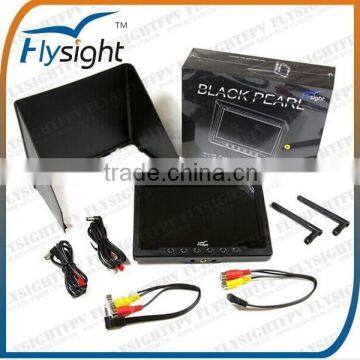

Package content:
1*Main Body
1*Sun Shield
2*Antennas (SMA and RP-SMA for option)
2*AV Cable
2*power Cable
1*Battery
1*Charger (US, UK, European and Australian charger for option)
1* guidbook
Why choose us
1.All product have proceeded test before shippment and we guarantee to use our products safety.
2.All products have 1 year warranty.if there is no man-made problem, we'll replace or repair for you freely.
3. OEM&ODM, any your customized lightings we can help you to design and put into production.
4.Not sell in China to avoid cross selling, protect customers benefits and sales channels.
5.Price Promise – factory price and the lowest shipping cost.
6. Distributoership are offered for your unique design and some our current models.
7. Protection of your sales area, ideas of design and all your private information.
8.We own the best after-sale service.If any problems happen, our tean will do our best to solve for you.
1. Your inquiry will be replied within 24hrs except weekend.
2. Well-trained and experienced staffs can answer all of your questions.
3. OEM&ODM, any your customized requirement within our ability can be come true.
4. Agency is welcomed.
5. Protection of your sales area, ideas of design and all your private information.
1. FOB Price:
At present, we only offer EXW price to all our customers for small orders, but for a large order, we will ship by container, we will offer you price on FOB Shenzhen.
2. Payment term:
At present, we only accept paying by T/T , Western Union and Paypal.
3. Minimum Order Quantity(MOQ):
No matter how many do you want, we can also offer you it. Usually, our M. O. Q is 50 PCS/kits for each item.
4. Price list:
Welcome to visit our website and choose what you like, then send us your enquiry letter or chat with us on Trade Manager. Price of the items you selected will be sent to you in our reply email. Our price depends on your quantity. We are manufacturer, so we promise to offer you the best price.
5. Delivery time and OEM Order
If the products are NOT made based on your Trade Mark, we can send the goods to you with three work days after we receive the payment.
There is no problem for us to offer customized requirement, such as package you designed, antenna connector, output voltage.The delivery would be about 35 days due to printing the package you designed from the very beginning, but it would only need about 20 days for the repeated order.
6. How to get the sample:
So sorry to say that we don't offer free samples. When you confirm the model that you need, PI will be send to you,freight charge included. Sample will be send within 3 workdays after getting the payment.
7. Shipping:
DHL is better if the order is not large. For large order, we suggest air freight which costs you not so much. The shipping costs depends on the total weight of your products.
8. Warranty:
1 year warranty of free repair or replace for our products. Within 3 months, if some quality problems, you can replace it with a good one. But faulty goods should be returned before we send you a new one.
