CE 5.8GHz Diversity Monitor For RC Remote Control Drone UAV Hobby RC
- 7" HD 1024*600 Screen
- Two screen options: Matte screen and Mirror/brilliant screen
- 5 modes support: Diversity/RX1/RX2/AV IN//HDMI mode
- No "blue screen" .
- Support Image Zoom Function;
- Support Fatshark Nextwave&Airwave TX without distorted picture;
Support image rotation 180 degree;
- Built-in Dual Receiver Automatically for best reception Automatic Antenna Switching
- Dual buffered AV outputs
- Can receive 2 different channels at the same time
- Not affect by 2.4GHz R/C Radios
- Anti-black, anti-blue, anti-flash.
- AV Receiver with Diversity inputs,AV, HDMI
- Small, light weight, durable,stylish
- 32 Channels
Display Screen
Diagonal: 7 inch
Resolution: 1024X600
Contrast: 700:1
Luminance: 400cd/m^2
Wireless Receiving
Working frequency:
Sensitivity: -90dBm±1dBm
Channel: 32Channel ( 4 Band X 8 Channel )
Antenna Port: 2 X SMA,50ohm
Diversity receiving: Antenna diversity
TV System: NTSC/PAL
Video output level: 1.0Vp-p Typ,75ohm
Audio output level:1.0Vp-p Typ,10Kohm
AV Port
RX1 AV OUT: Video,Audio output
RX2 AV OUT: Video,Audio output
DIV AV OUT: Diversity receiving, Video,Audio output
AV IN: Video,Stereo Audio input HDMI IN(A Type) Support
HDMI: 1.3 Digital Input, Support HDMI Audio in
Built-in Microphone: 8Ω/1W X 2
Power Supply
DC IN: 7~28V/ 2A
DC OUT: Output Voltage:DC IN or battery voltage
Output Current: 1A
Battery: 11.1V/1000mAh(3 series LiPo cells)
Consumption: 12V input:7.8W Dimensions
Dimensions
Main Body: 183X126X19.5mm(not include sun shadow)
Battery: 105X87.5X6.7 mm(not include prominent part)
Weight
Main body: 350 g
Battery: 95 g
Tripod connector: General 1/4 "thread
Working Temperature: -10°C~+65°C
Main Body:
Battery installation:

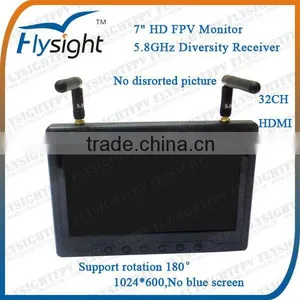

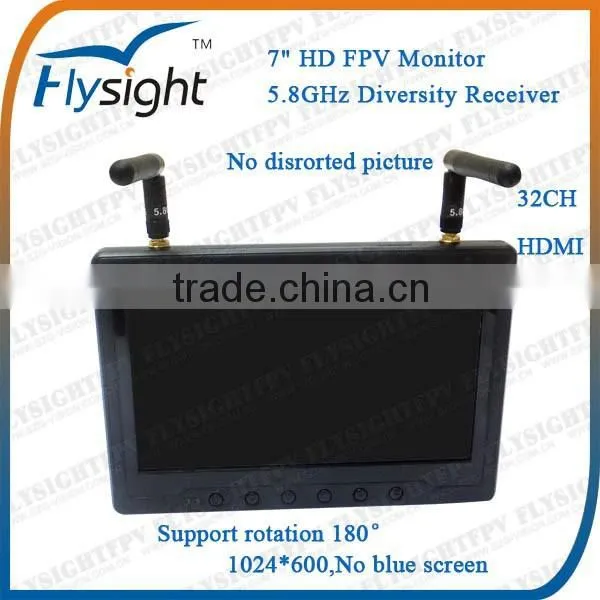

Images:

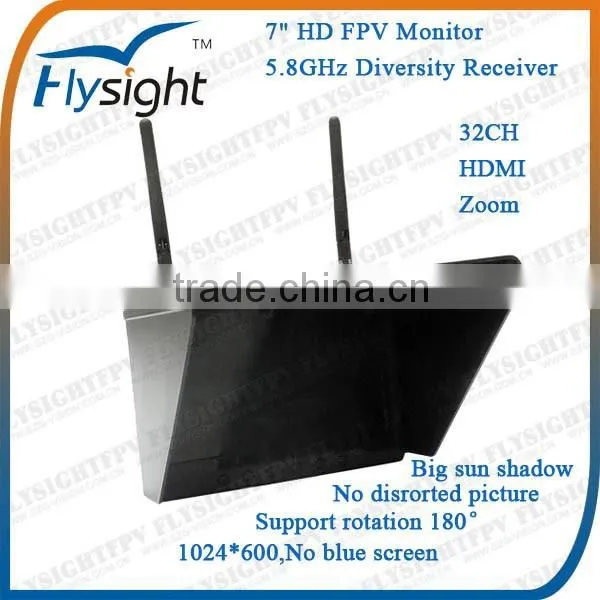

With sun shadow:

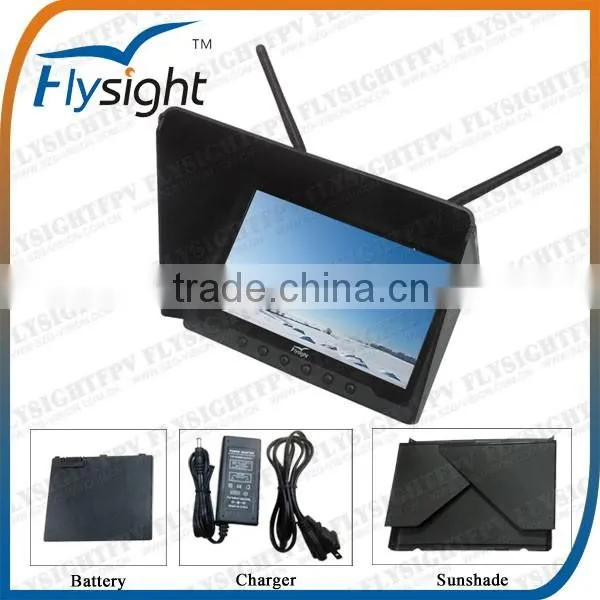

Package:
Packing List;
1*RC801
1*sunshadow
2*antenna
1*battery
AV cable
DC input cable
DC output cable
