Home > Industrial Equipment & Components > Valve > Ball Valve > Liquid Oil Gas Pneumatic Water Level Control Gauge Valve
Liquid Oil Gas Pneumatic Water Level Control Gauge Valve
US$ 66 - 199
MOQ: 10 Pieces
Key Specifications
Get Latest Price
Standard or Nonstandard:
Standard
Structure:
Control
Pressure:
High Pressure
Payment & Shipping
Payment Methods:
Port of Shipment:
Shanghai shenzhou xiamen
Delivery Detail:
Delivery time depends on order quantity.
Related Products
Standard or Nonstandard
Standard
Structure
Control
Pressure
High Pressure
Power
Manual
Material
Other, Stainless Steel, 316/316L/304/304L/ Brass/alloy/titanium
Temperature of Media
High Temperature
Media
Gas
Port Size
1/2'', 3/4'', M20*1.5
Place of Origin
Sichuan, China
Model Number
GV1
Brand Name
Hikelok
Application
General
liquid oil gas pneumatic water level control gauge valve
Product description

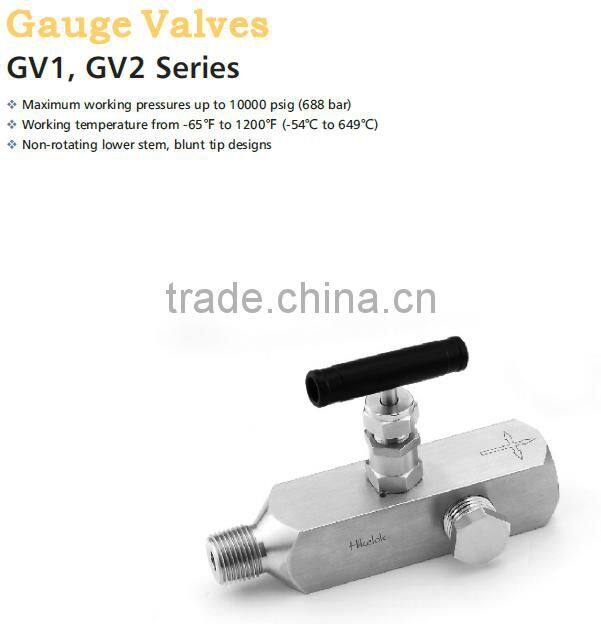

GV1 series
Maximum working pressures:
GV1 up to 6000 psig (414 bar)
GV2 up to 10000 psig (688 bar)
Working temperature:
PTFE packing: from -65℉ to 450℉ (-54℃ to 232)
Graphite packing: from -65℉ to 1200℉ (-54℃ to 649℃)
Non-rotating lower stem, ball tip designs
Safety back seating seals in fully open position
Rolled spindle operating threads
Lubricant for stem thread isolated from the media
Bonnet locking pin fitted as standard
Low torque operating T bar handle
Handle of different colors available for option

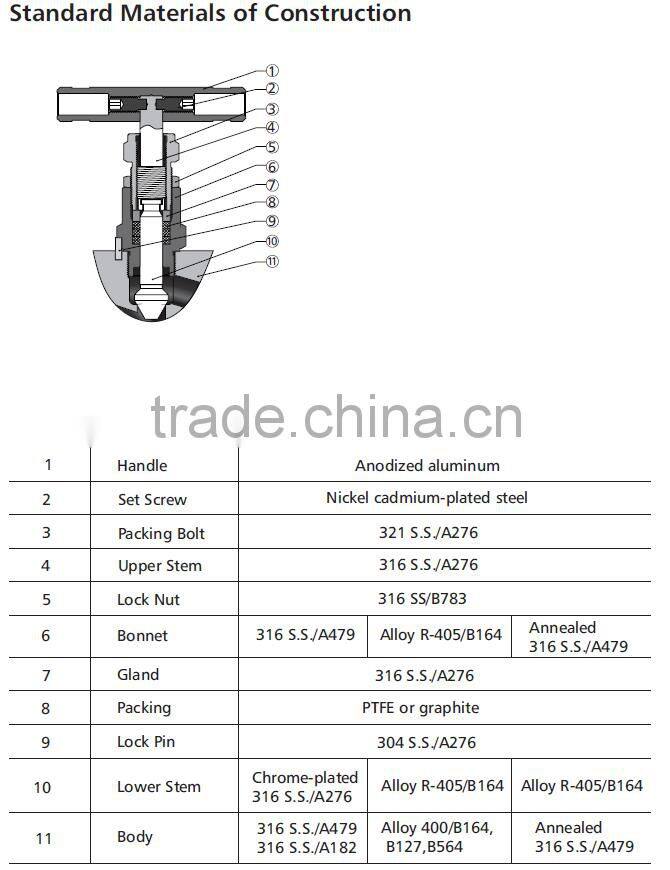

Standard Materials of Construction
Process interface valves for sour gas service are available.
Orifice size: 0.16" (4.0 mm)

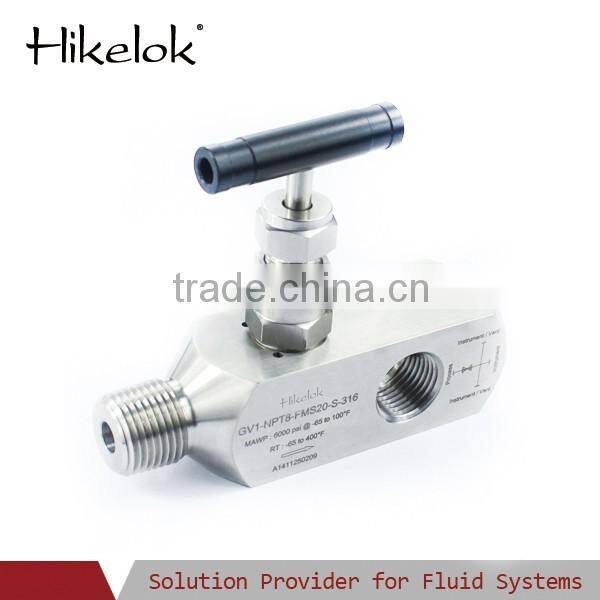

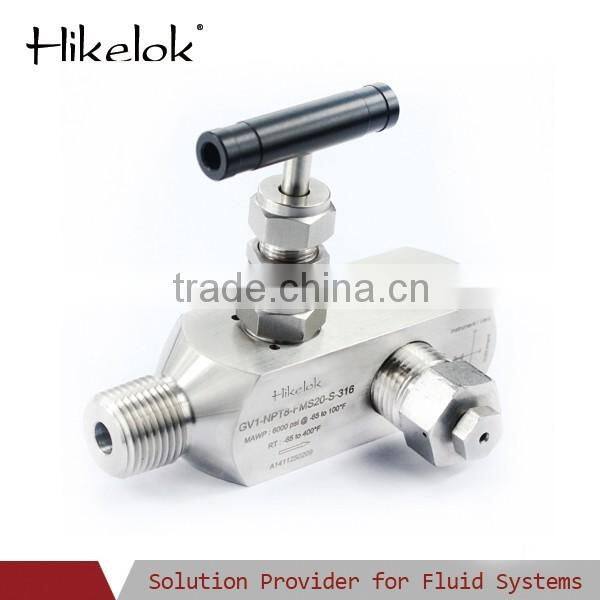

Product show

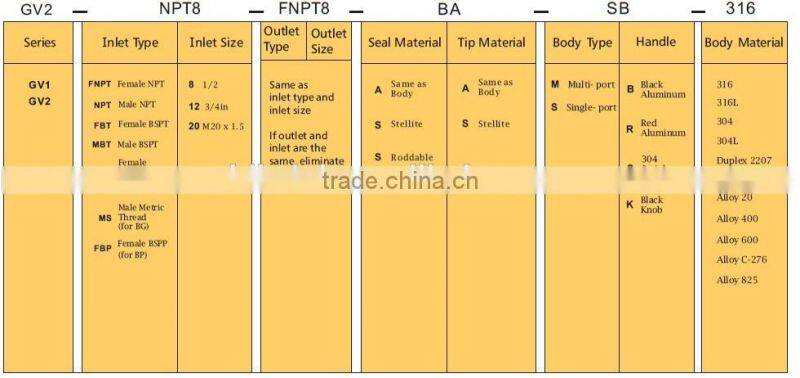

How to order
Company information
- Passed ISO9001-2000 & 2008
- Supply OEM/ODM Manufacturing.
- Designed and manufactured to intermix and interchange Swagelok ® and major global brands.
- 0.5 Hour's Drive from Chengdu Shuangliu Airport.
shipping and packaging
